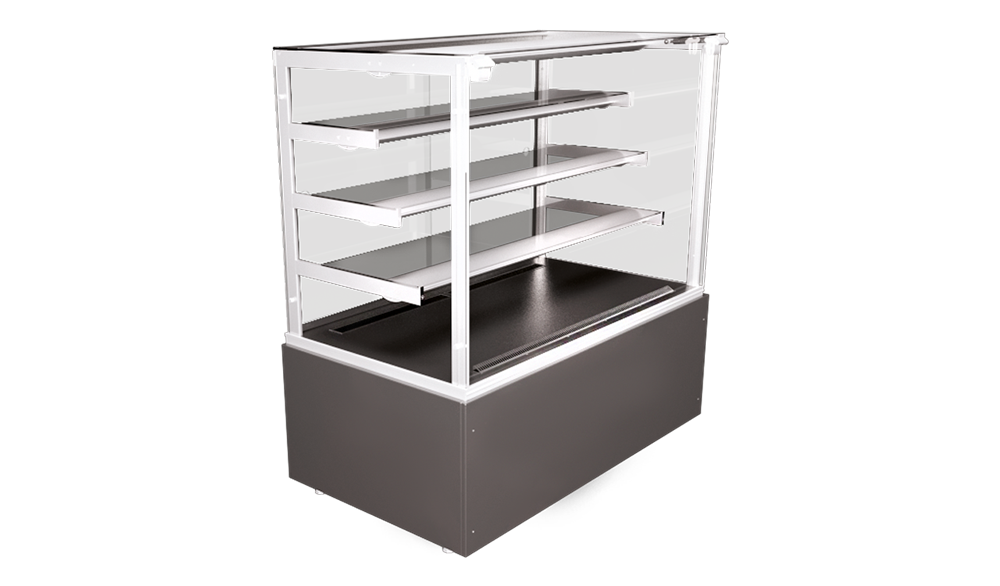

Confectionery refrigerated display case Cremona Cube

Confectionery refrigerated display case Cremona Cube

Compact confectionary display case Cremona Cube with a large display area is a great combination of functionality and design. Cubic shape and bright energy-saving fluorescent backlight inside create a volume effect. The confectionery refrigerated display case Cremona Cube allows you to create optimal temperature and humidity conditions that contribute to a long-term preservation of the freshness of pastries.

Thanks to ultra-modern appearance, the attention of visitors to the products in this display case is ensured.

Standard equipment

  • bent tempered panoramic glass rises from the bottom up and is held by gas lifts;
  • body parts are made of galvanized steel with polymer coating;
  • forced air circulation in the volume with the help of a fan;
  • sliding doors with glazing from the seller’s side;
  • 3 illuminated display shelves;
  • energy-saving LED backlight for internal volume;
  • the display case is equipped with the electronic control panel with function of an automatic defrosting of the evaporator.

Options

  • solid front glass;
  • front sliding doors;
  • the ability to choose the color of the base;
  • finishing: painting, pasting.

Technical data

Technical dataCremona Cube
Length, mm9401390
Width, mm770
Height, mm1432
Ambient temperature, °С+12…+25
Temperature in effective volume, °С+4…+8
Supply voltage, V220±22
Cooling capacity, kW0,450,6
Max power consumption, kW0,60,81
Shelves area, m20,91,4
Display area, m21,22,0
Daily electric energy consumption at ambient air temperature of +22°С, kWh7,510,4
Mass of uniformly loaded product on tabletop / one shelf, kg20/730/11
Cooling typedynamic
Mass, kg190270

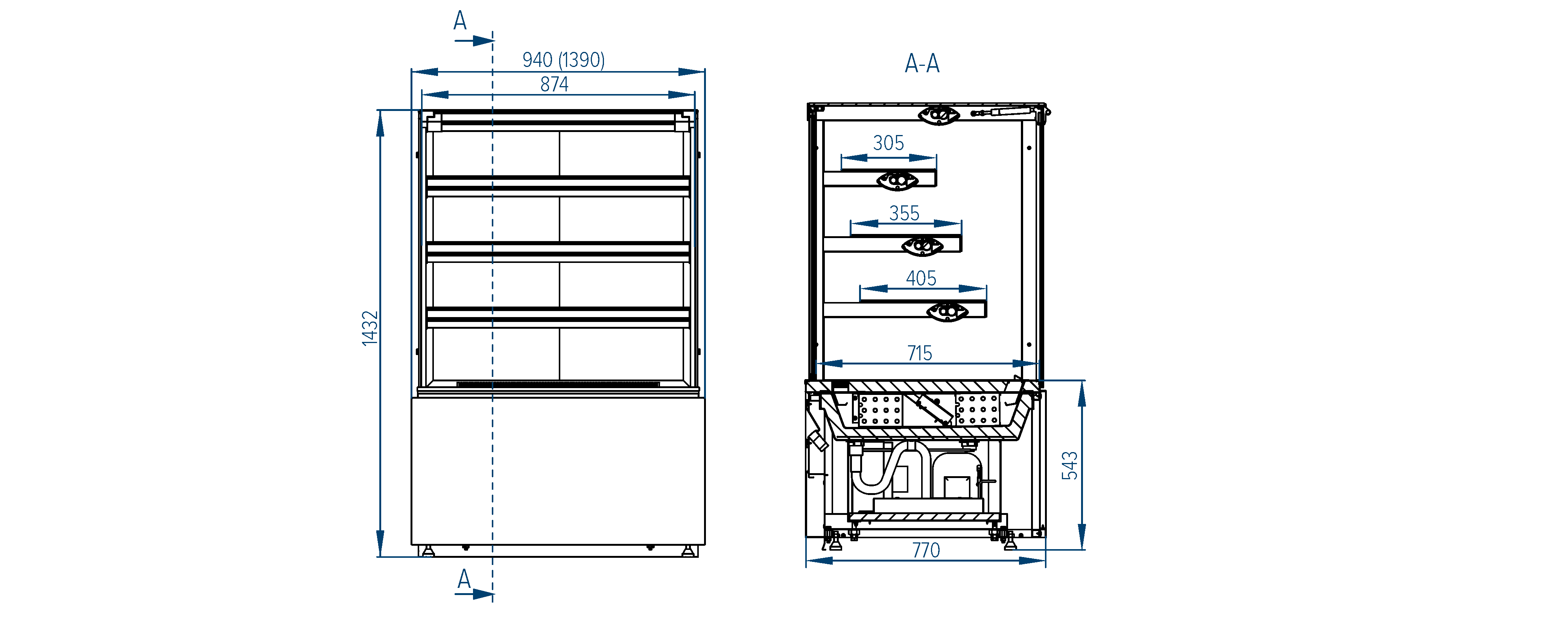

Schema

Confectionery refrigerated display case Cremona Cube
Confectionery refrigerated display case Cremona Cube
