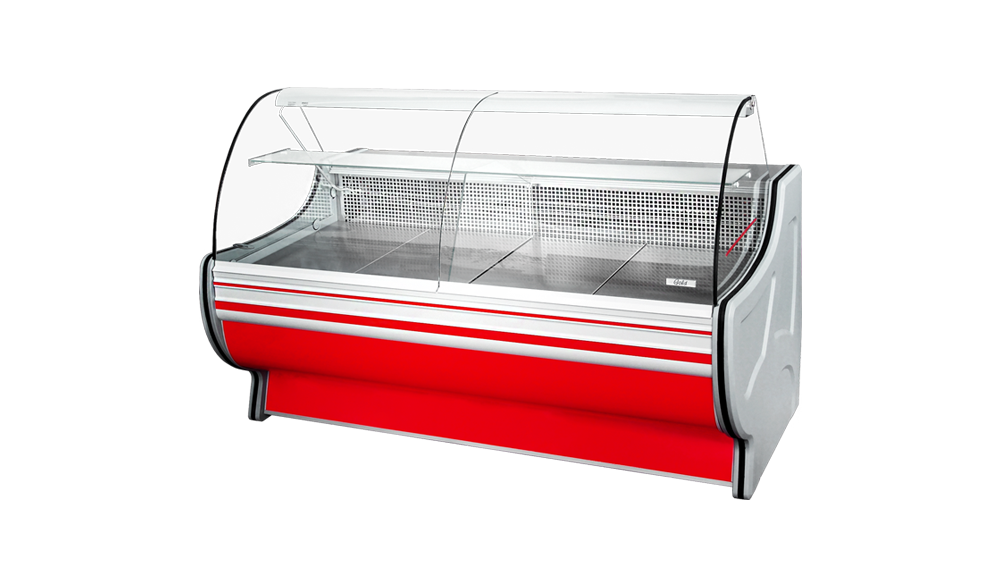

Refrigerated display case GOLD

Refrigerated display cases GOLD

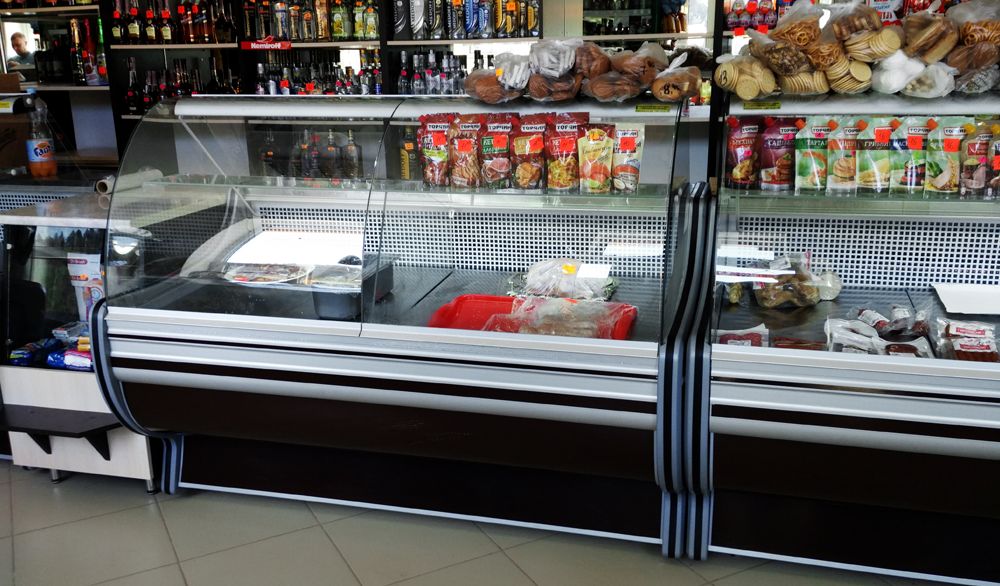

Modern design, imported components, ergonomics, large effective volume – all these features allow Gold showcases to harmoniously fit into the sales area of any small and medium-sized store with the organization of sales through the counter.
Display cases are presented in various lengths, which allows the most efficient use of retail space. Rich color performance provides wide opportunities to decorate any store with Gold showcases.
Uninterrupted operation at an ambient temperature up to +32°C ensures the safety of the inventory

Competitive advantages

  • the medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • the case is filled with polyurethane foam under high pressure, which minimizes the loss of cold;
  • galvanized steel body parts with polymer coating, welding of parts is not applicable – corrosion elimination;
  • uninterrupted operation at ambient air temperature up to +32°С

Standard equipment

  • capacious cooled box for inventory;
  • stainless steel demonstration trays and seller’s tabletop;
  • energy-saving LED backlight of the internal volume;
  • the showcase is equipped with an electronic control panel with function of an automatic defrosting of the evaporator;
  • bent panoramic glass;
  • additional glass shelf in the exposure volume.

Options

  • showcases can be both with static, and with dynamic type of cooling;
  • showcases are set in a line of any length;
  • it is possible to manufacture showcases with a temperature range from -5°C to +5°C;
  • the ability to choose the color of the decorative panel;
  • we produce models with built-in refrigeration unit and for remote cold supply.

Technical data

Technical dataDisplay case GOLD
Length, mm1310161018102110
Width, mm1090
Height, mm1250
Ambient temperature, °С+12…+32/+12…+25
Temperature in effective volume, °С0…+8
Supply voltage, V220±22
Max power consumption, W450550650750
Power of heating elements’ defrost, W400500600700
Daily electric energy consumption at ambient air temperature of +22°С, kWh5,57,59,09,6
Display area, m20,851,051,21,4
Mass of uniformly loaded product, kg47586575
Cooling typestatic or dynamic
Mass, kg132145172198

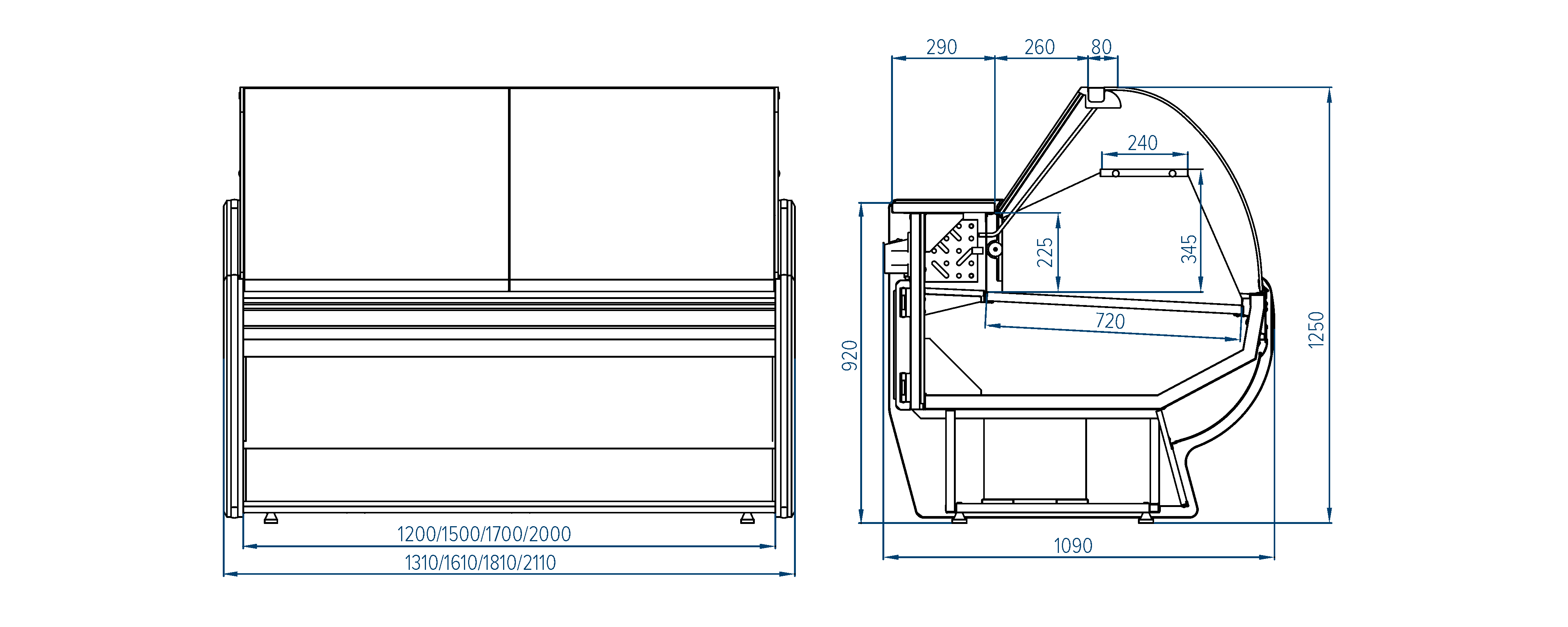

Schema
