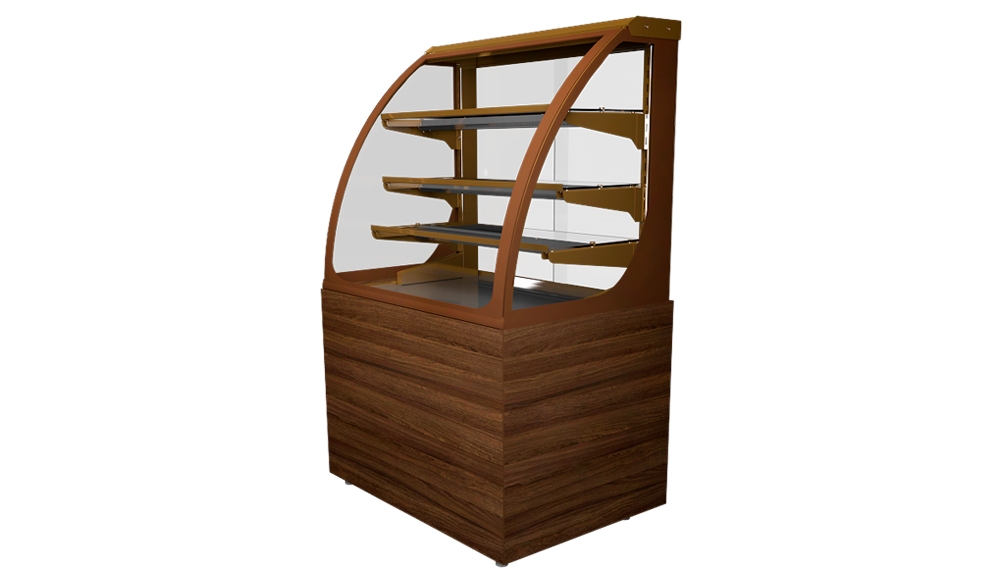

Confectionery refrigerated display case Latina

Confectionery refrigerated display case Latina

Compact confectionary display case Latina with a large display area is a great combination of functionality and design. Glass shelves and bright backlight inside create a volume effect. Due to the isolation of the useful volume with double-glazed units, the confectionery display case Latina allows you to create optimal temperature and humidity conditions that contribute to a more long-lasting preservation of pastry freshness. Dynamic cooling system is applied in the display case. Sliding rear plastic curtains facilitate the display of food and provide ease of maintenance and care of the refrigerated display case. Roomy refrigerated stainless steel boxes allow you to create inventory.

Standard equipment

– sliding plexiglass rear curtains;
– energy-saving LED backlight for internal volume;
– three shelves with adjustable height and tilt angle;
– forced air circulation in the volume;
– the display case is equipped with the electronic control panel with function of an automatiс evaporator defrost;
– stainless steel cooling box;
– imported compressor.

Options

– execution with cooled and uncooled upper shelf is possible;
– the ability to choose the color of the base.

Technical data

Technical dataLatina
Length, mm10151285
Width, mm735
Height, mm1650
Display area, m20,60,72
of a bootom shelf0,370,47
of a medium shelf0,320,41
of a top shelf0,260,33
Ambient temperature, °С+12…+25
Temperature in effective volume, °С+4…+8
Supply voltage, V220±10%
Cooling capacity, kW, no more than0,450,73
Max power consumption, kW0,460,52
Daily electric energy consumption at ambient air temperature of +22°С, kWh5,86,6
Internal volume of box, dm³130170
Mass of uniformly loaded product on tabletop / 1 shelf, kg15/3
Cooling typedynamic
Mass, kg140160

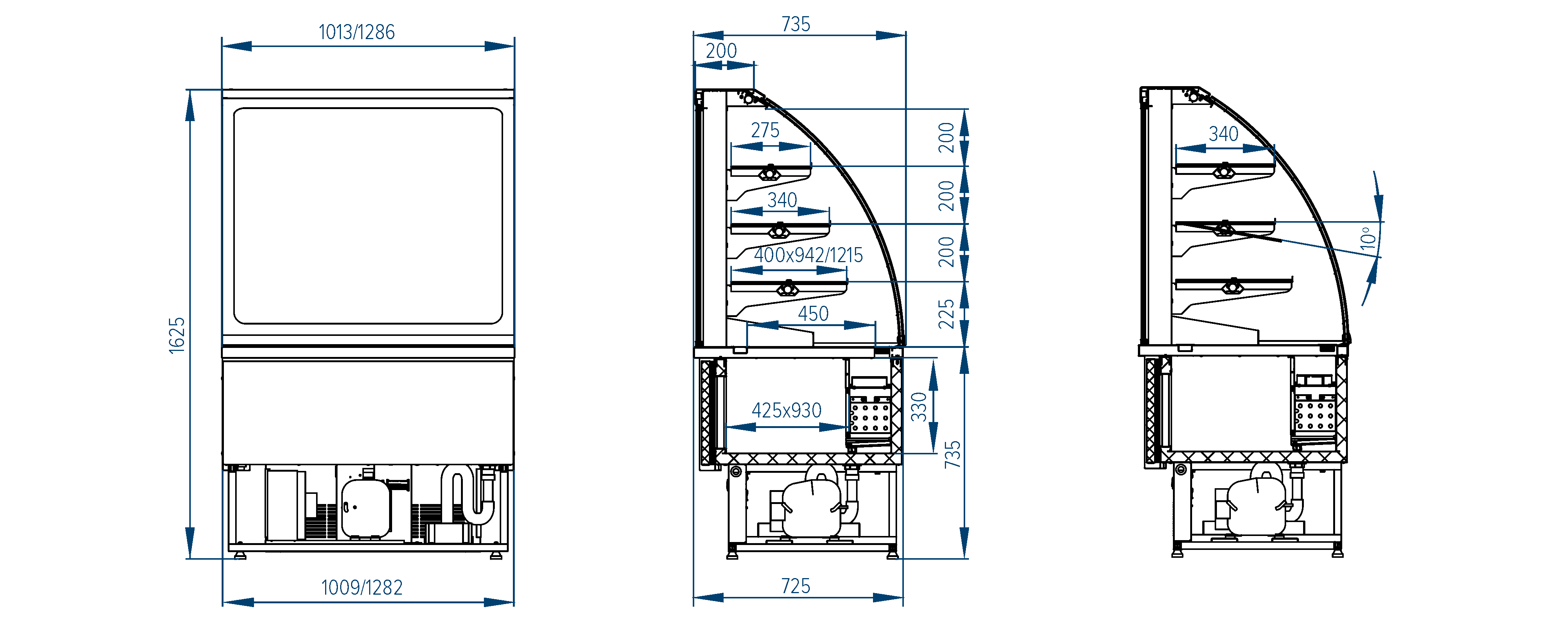

Schema
