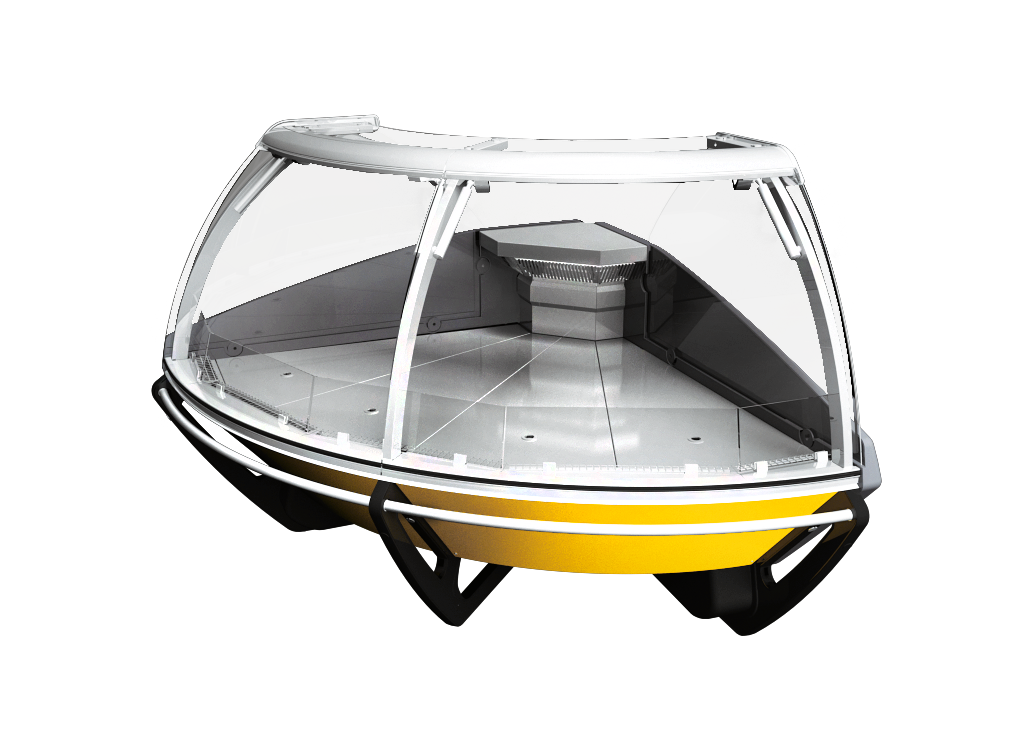

Exterior corner elements of San Remo showcases with spherical rising glasses allow you to build spectacular bent lines of showcases of any configuration, to maximize the use of retail space.
It is possible to use as a separate module when installing standard sidewalls.
It is possible to produce “self” (with low front glass) and angle modules 45º.
| Technical data | San Remo open angle |
|---|---|
| Width, mm | 1320 |
| Height, mm | 1200 |
| Useful volume, dm3 | 160 |
| Display area, m2 | 0,9 |
| Mass of uniformly loaded product, kg, not more than | 60 |
| Temperature in effective volume, °С | от +2 до +4 |
| Ambient temperature, °С | +12…+25 |
| Refrigerating capacity*, kW, not more than | 0,32 |
| Maximum power demand (without defrost heating element), kW | 0,13 |
| Power of defrost heating element, kW | 0,25 |
| Daily electric energy consumption at ambient air temperature of 22°С, kWh | 2,06 |
| Mass, kg | 150 |
| Cooling type | dynamic |
| Connecting dimensions, mm, – diameter of drainage pipe – diameter of liquid pipe – suction pipe diameter | 40 10 16 |
| * – at boiling temperature -10 ºС; | |
