Refrigerated display case Rimini

Refrigerated display cases Rimini

A small store, an indoor market or a trade pavilion are places where rational use of the sales area is important. A compact refrigerated showcase RIMINI is designed to work on trading platforms of limited size with the organization of sales through the counter. Excellent visibility of the product is provided by a curved or straight front glass, and a cooled capacious box ensures the freshness of the inventory.

The uninterrupted operation of the refrigerated display case at an ambient temperature up to + 32 ° C ensures the safety of the entire inventory, and the lighting of the interior area attracts the attention of the buyer. Simplicity of operation is achieved by an electronic controller with automatic defrost evaporator function.

Competitive advantages

  • depth of a display case of 860 mm is the optimal solution for small rooms;
  • heat insulation from polyurethane foam minimizes the loss of cold from the display case;
  • the medium temperature compressor saves electricity costs;
  • electronic controller with automatic defrost evaporator function contributes to the simple and convenient operation of the display case;
  • uninterrupted operation at ambient air temperature up to + 32 ° С.

Standard equipment

  • capacious cooled box for inventory;
  • energy-saving LED backlight of the internal volume;
  • the display case is equipped with the electronic control panel with an automatic defrost evaporator function;
  • glass hanging shelf in the exposure volume;

Options

  • flat or curved tempered panoramic glass is for visual demonstration of the products;
  • display area and seller’s tabletop are of galvanized steel with polymer coating for showcases with straight glass and of stainless steel for showcases with curved front glass;
  • installation colored hinged panels of the aggregate compartment on the showcase allows to diversify the model range;
  • it is possible to manufacture showcases with a temperature range from -5°C to +5°C.

Technical data

Technical dataRimini
Length, mm10801280158017802080
Width, mm880
Height, mm1250
Ambient temperature, °С+12…+32
Temperature in effective volume, °С0…+8
Supply voltage, V220±10%
Max power consumption, W350450550650750
Power of heating elements’ defrost, W400500600700
Daily electric energy consumption at ambient air temperature of +22°С, kWh2,83,754,959,59,6
Display area, m20,550,680,860,971,14
Mass of uniformly loaded product, kg4045506070
Cooling typestatic
Mass, kg100110125145170

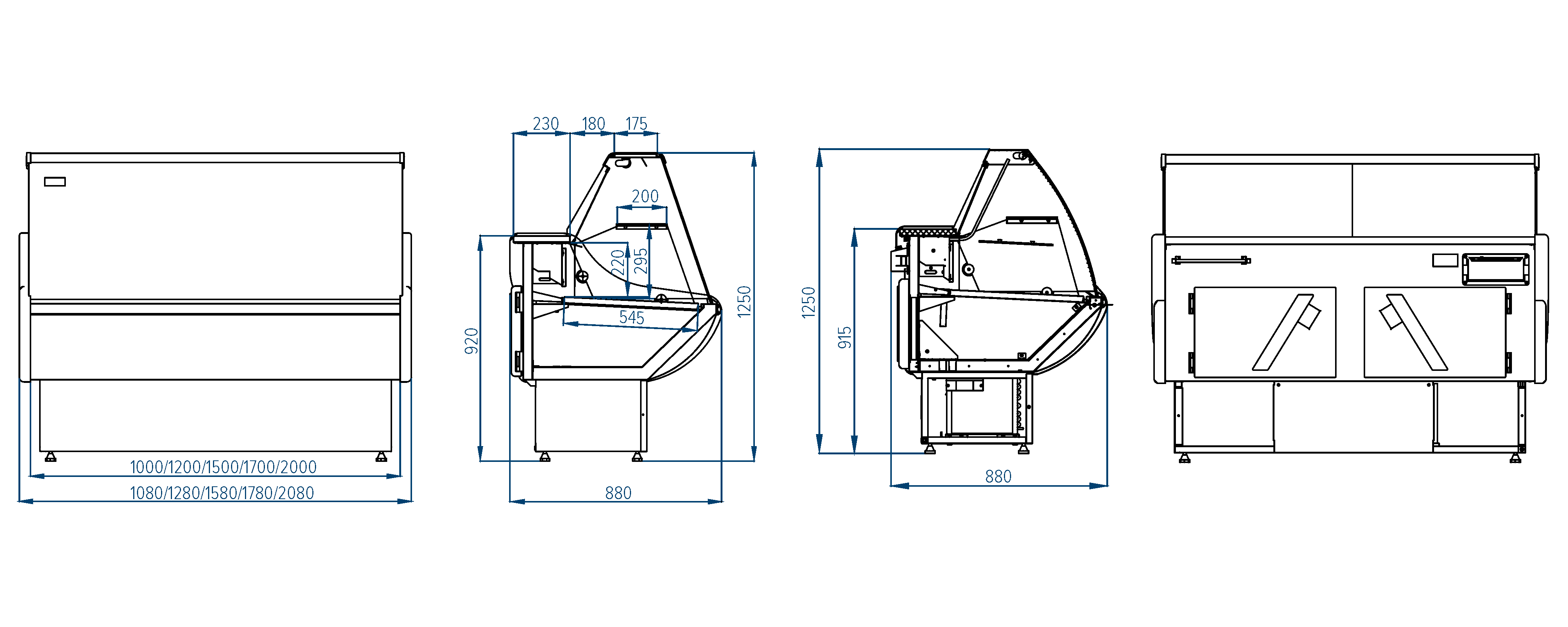

Schema
