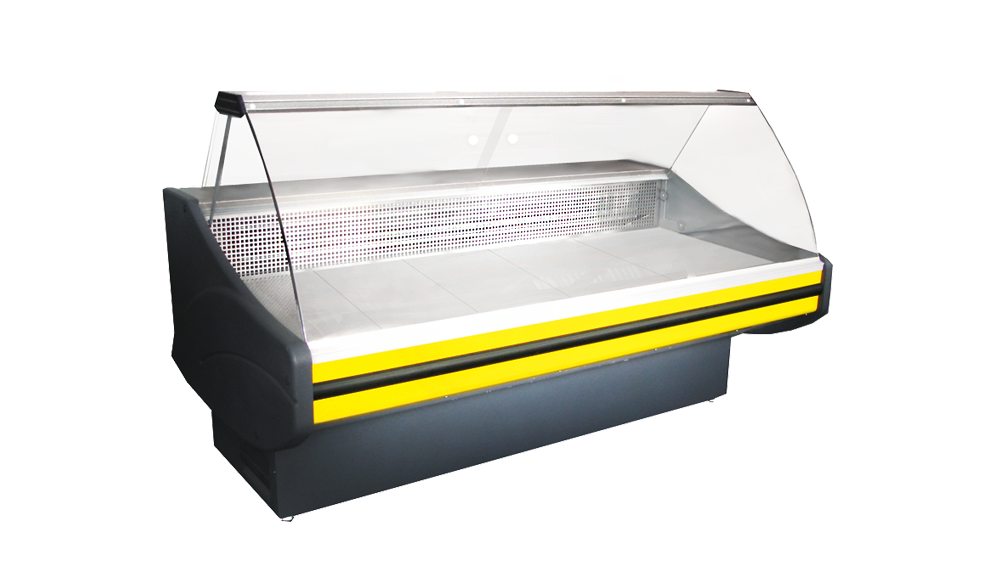

Refrigerated display case Savona

Refrigerated display case Savona

Savona refrigerated display cases are specifically designed for shops and pavilions selling fresh meat.
Modern design, imported components, ergonomics – all these features will allow Savona display cases to fit harmoniously in sales area of any store with the organization of sales through the counter. A capacious cooled storage box for the daily stock and a large display area in the display case make it possible to refuse to place storage rooms in stores with a limited area.

Display cases are presented in various lengths, which allows the most efficient use of retail space.
The uninterrupted operation of the refrigerated display case at ambient temperatures of up to + 32 ° С ensures the safety of the inventory.

Competitive advantages

  • depth of the display area is increased to 800 mm;
  • the medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • uninterrupted operation at an ambient temperature of up to +32 ° C (display cases with static cooling).

Standard equipment

  • additional glass shelf in the exposure volume;
  • stainless steel demonstration trays and seller’s tabletop;
  • body parts are made of galvanized steel with polymer coating, welding of parts is not applicable – corrosion elimination;
  • the use of curved, tempered panoramic glasses is the best demonstration of the products;
  • capacious cooled box for inventory;
  • energy-saving LED backlight of the internal volume;
  • the display case is equipped with the electronic control panel with automatic defrost evaporator function;
  • imported compressor.

Options

  • setting display cases in line of any length;
  • it is possible to manufacture display cases with a temperature range from -5°C to +5°C;
  • the ability to choose the color of the decorative panel;
  • we produce models with built-in refrigeration unit and for remote cold supply.

Technical data

Technical dataSavona
Length, mm13001600180021002500
Width, mm1160
Height, mm1260
Ambient temperature, °С+12…+32
Temperature in effective volume, °С0…+8
Supply voltage, V220±22
Max power consumption, W440550650750960
Power of heating elements’ defrost, W400500600700900
Daily electric energy consumption at ambient air temperature of +22 °С, kWh5,65,78,610,213,4
Display area, m20,961,21,361,61,92
Mass of uniformly loaded product, kg53667588106
Cooling typestatic
Mass, kg137150177203242

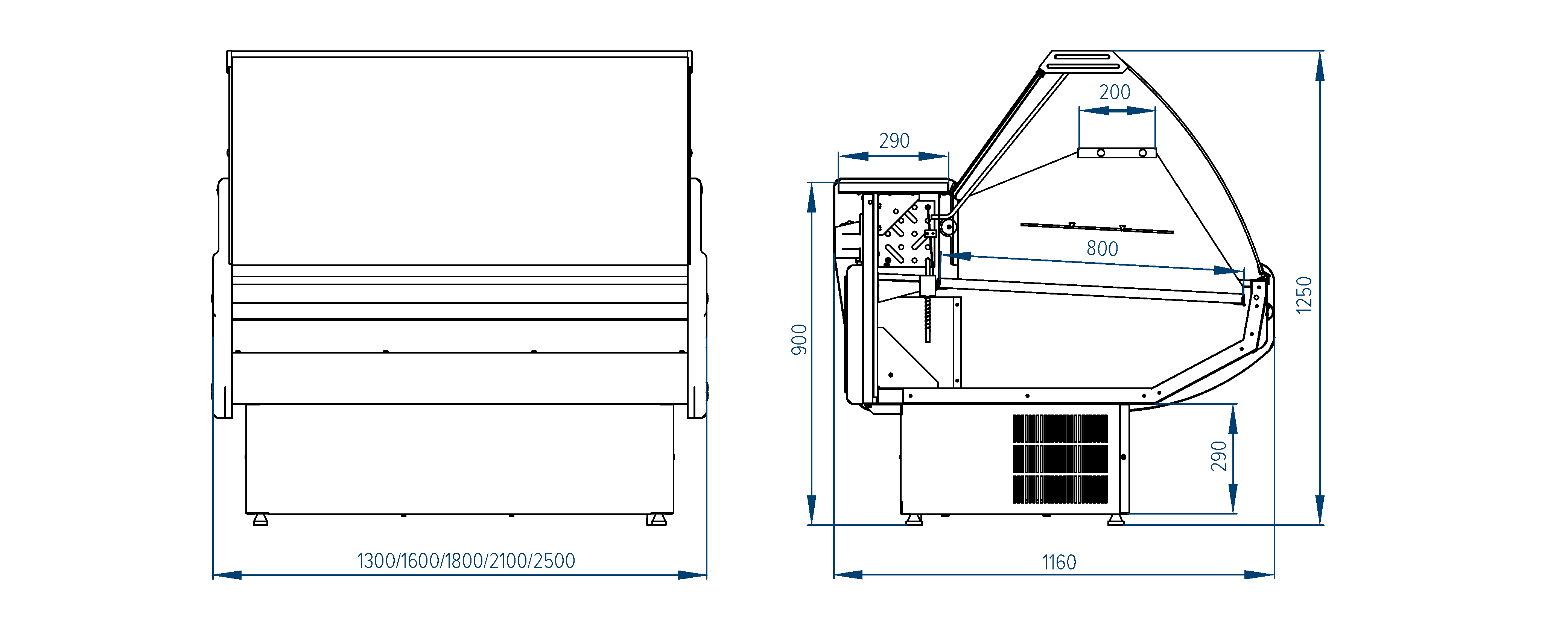

Schema

Refrigerated display cases Savona
Refrigerated display cases Savona
