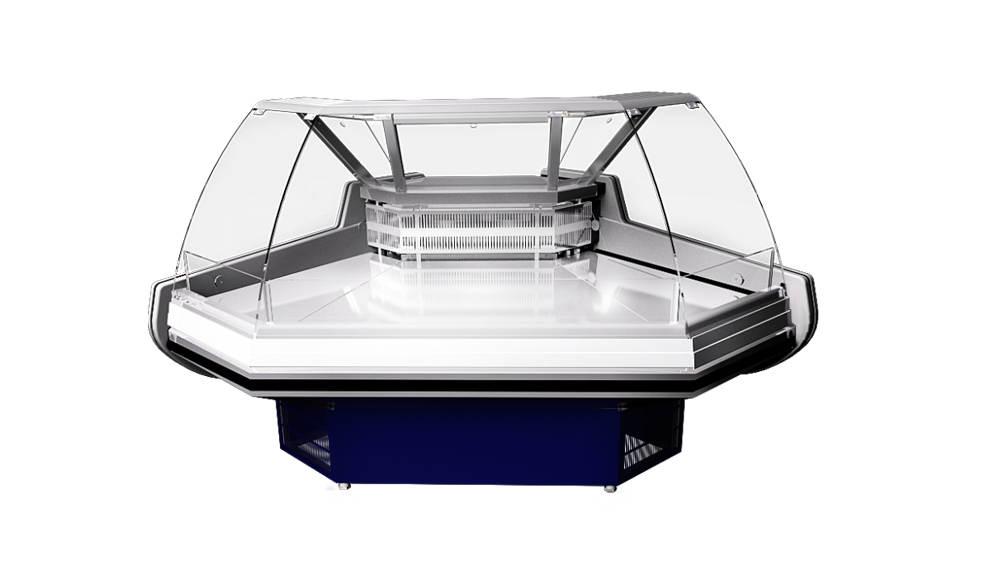

Refrigerated display case Belluno open angle

Refrigerated showcase Belluno open angle

Modern design, imported components, ergonomics – all these features will allow Belluno display cases to decorate the sales area of any store. It is used to create a line of Belluno display cases of various configurations. It can be used as a separate showcase with the installation of standard sidewalls.

Competitive advantages

  • the medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • the casing is filled with polyurethane foam under high pressure, which minimizes the loss of cold;
  • forced air circulation in the volume by means of a fan is for uniform cooling of the product;
  • uninterrupted operation at ambient air temperature up to + 32 °.

Standard equipment

  • stainless steel display are and seller’s tabletop;
  • body parts are made of galvanized steel with polymer coating, welding of parts is not applicable;
  • folding forward bent tempered panoramic glass facilitates its maintenance;
  • energy-saving LED backlight of the internal volume;
  • the display case is equipped with the electronic control panel with function of an automatic defrosting of the evaporator;
  • imported compressor.

Options

  • setting display cases in line of any length and configuration is possible – it saves space in the sales area;
  • the ability to choose the color of the base;
  • we produce models with built-in refrigeration unit and for remote cold supply.

Technical data

Technical dataBelluno UN
Width, mm1398
Height, mm1250
Ambient temperature, °С+12…+25
Temperature in effective volume, °С0…+8
Supply voltage, V220±22
Max power consumption, W655
Daily electric energy consumption at ambient air temperature of +22°С, kWh5,6
Display area, m21,1
Mass of uniformly loaded product, kg55
Cooling typedynamic
Mass, kg220

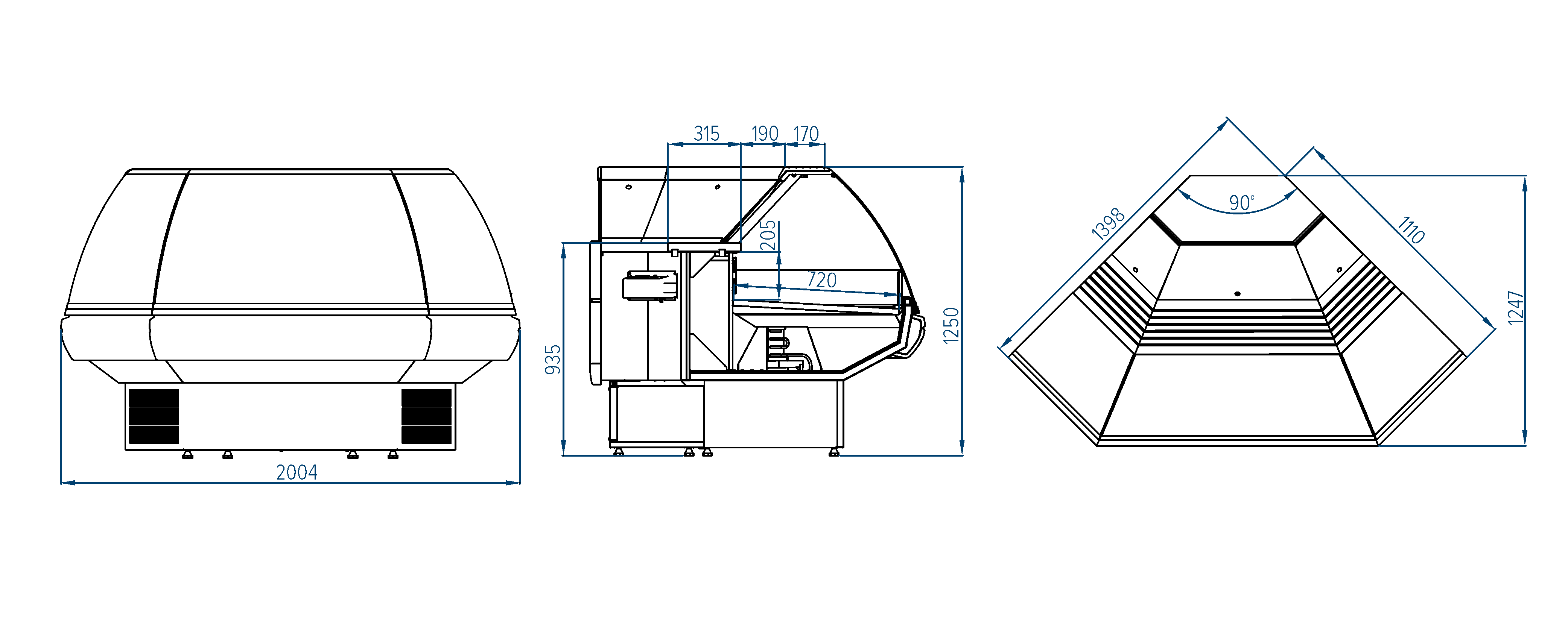

Schema

Refrigerated display case Belluno-UN open angle
Refrigerated display case Belluno-UN open angle
