Refrigerated display case Belluno closed angle

Refrigerated display case “Belluno closed angle”

Modern design, imported components, ergonomics – all these features will allow Belluno display cases to decorate the sales area of any store. It is used to create a line of Belluno display cases of various configurations. It can be used as a separate showcase with the installation of standard sidewalls.

Competitive advantages

  • The medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • the casing is filled with polyurethane foam under high pressure, which minimizes the loss of cold;
  • uninterrupted operation at ambient air temperature up to + 32 °C.

Standard equipment

  • stainless steel display are and seller’s tabletop – body parts are made of galvanized steel with polymer coating, welding of parts is not applicable;
  • folding forward bent tempered panoramic glass facilitates its maintenance;
  • energy-saving LED backlight of the internal volume;
  • capacious cooled box;
  • the display case is equipped with the electronic control panel with function of an automatic defrosting of the evaporator;
  • imported compressor.

Options

  • setting display cases in line of any length and configuration is possible – it saves space in the sales area;
  • the ability to choose the color of the base;
  • we produce models with built-in refrigeration unit and for remote cold supply.

Technical data

Технические характеристикиBelluno-UV
Width, mm1478
Height, mm1250
Ambient temperature, °С+12…+32
Temperature in effective volume, °С0…+8
Supply voltage, V220±22
Max power consumption, W725
Daily electric energy consumption at ambient air temperature of +22о С, kWh7,8
Power of heating elements’ defrost, W600
Display are, m20,98
Mass of uniformly loaded product, kg55
Mass of uniformly loaded product, kgstatic
Mass, kg220

Schema

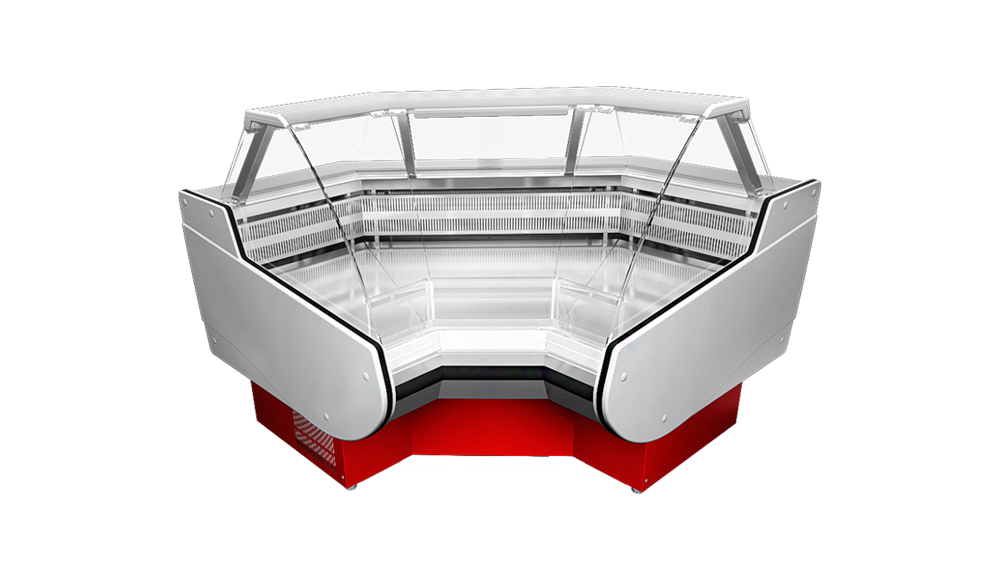

Refrigerated display case Belluno-UV closed angle
Refrigerated display case Belluno-UV closed angle
