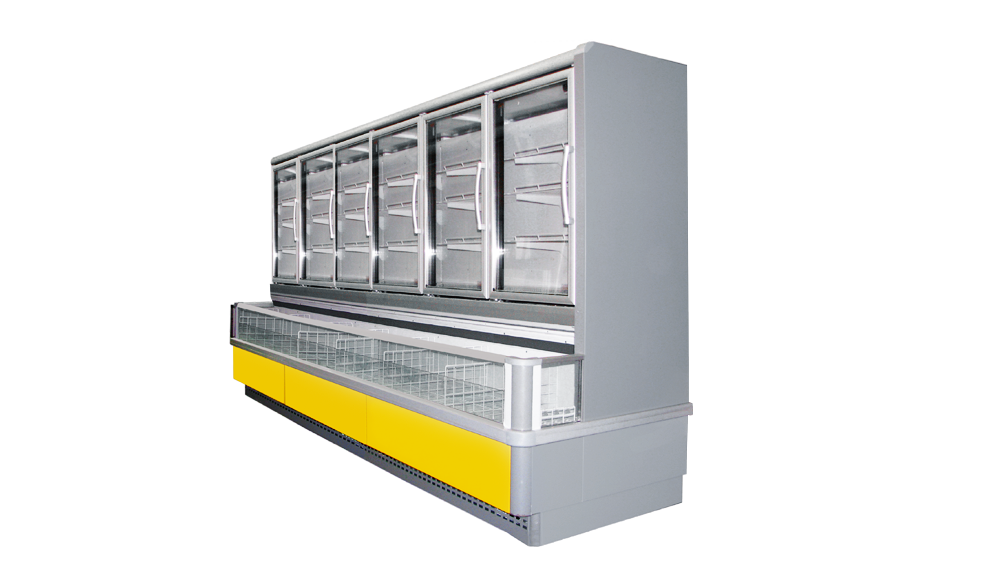

Bonnet cabinets Milano

Bonnet cabinets Milano

Installing bonnet cabinets in the store allows you to optimally use sales area for the demonstration and sale of frozen food.A low-temperature open bath provides convenient access to the foods to the customers, and the vertical low-temperature cabinet with glass doors is ideal for displaying a large range of products in a small area.

Efficiency and ease of use of the bonnet are providesв by the case, filled with polyurethane foam under high pressure, energy-saving double-glazed units and glass sliding systems. The use of sliding systems reduces energy consumption by 30% and limits the dispersion of cold into the room. Exact maintenance of the set temperature conditions is provided by the evaporator with the increased heat exchange surface and by automatic.Bonnets can contain one or two evaporators. In cabinets with two evaporators, the temperature in the cabinet and in the bathroom is adjusted separately.

Warranty from the manufacturer – 2 years

Technical data

Technical dataMilano
Length L, мм, with sidewalls205526803930
Width, mm1180
Height, mm2230
Ambient temperature, °Сот 12 до 25
Temperature in effective volume, °Сот  -18 до -24
AC mains voltage, V380±38
Effective volume , dm37229631444
Display area, m23,054,16,1
Mass of uniformly loaded product, kg, not more than165225335
Useful volume of  working chamber , dm3420562843
Display area of working chamber, m21,41,82,8
Mass of uniformly loaded product in working chamber, kg, not more than75103154
Refrigerating capacity*, kW, not more than
– of upper chamber
0,40,81,2
– of lower chamber0,71,42,1
Maximum power consumption in phases, kW
Ph1
1,922,943,928
Ph21,4082,1082,84
Ph31,652,252,85
Daily electric energy consumption at ambient air temperature of 22°С, kWh in phases
Ph1
3,865,827,78
Ph26,029,1912,36
Ph311,412,613,2
Mass, kg, not more than375450675
Connecting dimensions, mm, no more than
– diameter of drainage pipe
– diameter of liquid pipe
– suction pipe diameter
40
10
22
* at boiling temperature minus 35°С (on the evaporator of the cabinet)
