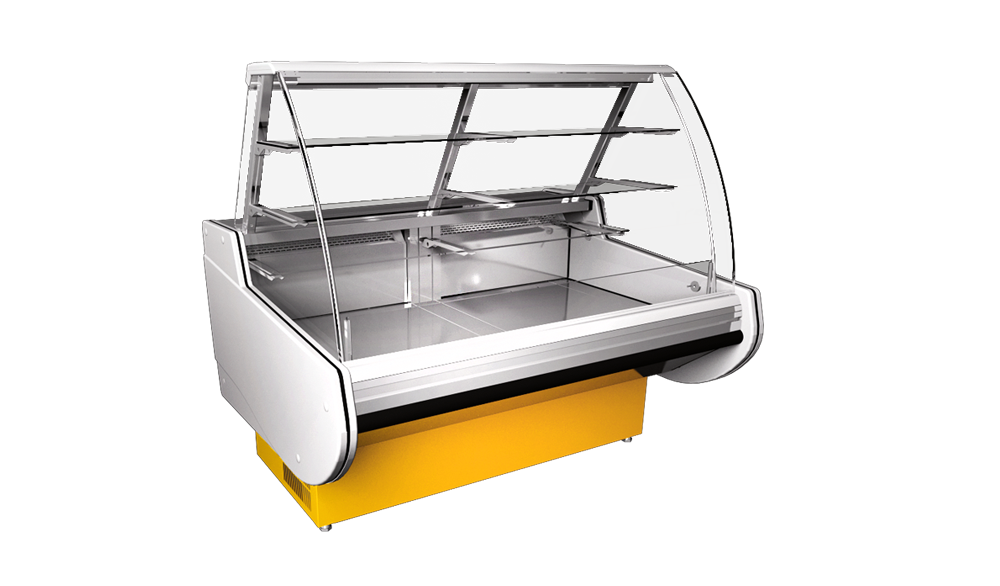

Confectionery refrigerated display case Belluno

Confectionery refrigerated display case Belluno

Confectionery refrigerated display case Belluno is particularly relevant for bars, coffee shops, restaurants, shops, supermarkets and other outlets that sell desserts and cakes.

The confectionery refrigerated display case Belluno is made in the same style as the Belluno range of display cases and perfectly complements them when equipping stores and supermarkets. Forced cooling technology provides a more uniform and effective cooling of confectionery products in the entire exposition volume, 20% increase in the layout of the lower pull-out row with a silent and smooth running system.There are three rows of additional shelves in the exposure volume, the height of which can be easily adjusted.

Competitive advantages

  • The medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • uninterrupted operation at an ambient temperature up to +25°C.

Standard equipment

  • bent tempered panoramic glass, folding forward, facilitates the maintenance of the display case;
  • sliding trays;
  • forced air circulation in the volume with the help of a fan is for uniform cooling of the product;
  • energy-saving LED backlight for internal volume and LED backlight for the lower shelves of the exposure;
  • the case filled in with polyurethane foam minimizes cold loss from the display case;
  • body parts are made of galvanized steel with polymer coating, welding of parts is not applicable;
  • stainless steel demonstration trays and seller’s tabletop;
  • the display case is equipped with the electronic control panel with function of an automatic defrosting of the evaporator;
  • imported compressor.

Options

  • the ability to choose the color of the base;
  • we produce models with built-in refrigeration unit and for remote cold supply;
  • it is possible to set display cases in a line of any length and configuration (with the help of corner elements) with display cases of the Belluno model range.

Technical data

Technical dataConfectionary display case Belluno
Length, mm15901290159017901590129015901790
Width, mm93511359351135
Height, mm12601460
Ambient temperature, °С+12…+25
Temperature in effective volume, °С+2…+8
Supply voltage, V220±22
Max power consumption, W560522680725560532690745
Daily electric energy consumption at ambient air temperature of +22°С, kWh10,57,29,559,6510,57,49,759,85
Display area, m21,2711,31,451,2711,31,45
Mass of uniformly loaded product, kg11090110130135105135155
Cooling typeдинамический
Mass, kg165180203175190212

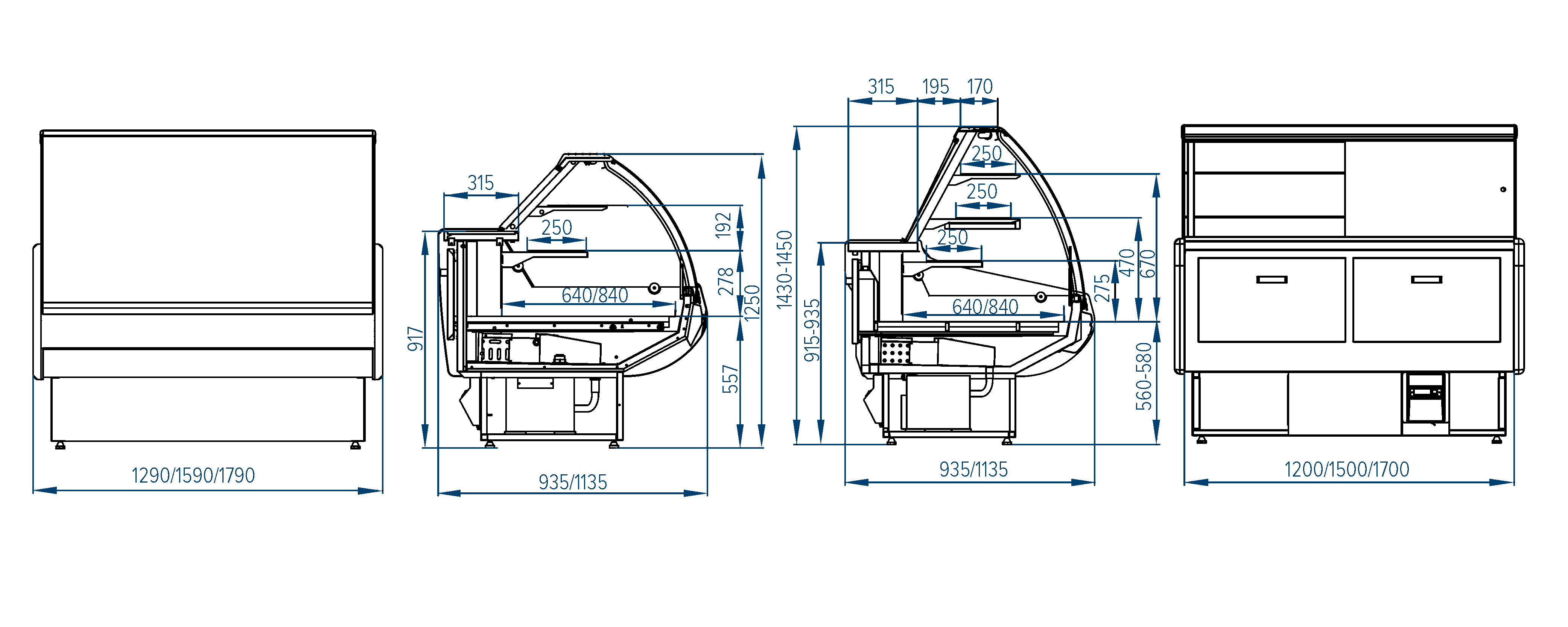

Schema

Confectionary display case Belluno-K
Confectionary refrigerated display case Belluno-K
