Confectionery refrigerated display case Siena

Confectionery refrigerated display case Siena

Confectionery display cases are popular in grocery stores, supermarkets and other shops that sell desserts and cakes. The compact confectionery display case Siena is an economical and effective solution for selling sweets in small shops and pavilions. Convenient demonstration of confectionery products is achieved by sliding trays with large area with a system of smooth-running guides.

The static cooling system of the useful volume will carefully preserve the confectionery, and the built-in electronic controller with the functions of maintaining the set temperature conditions and defrosting the evaporator will make the operation of the display case as simple and convenient as possible.

Advantages

  • a medium-temperature compressor saves energy costs;
  • automatic control of the temperature and defrost of the evaporator;
  • uninterrupted operation at ambient temperature up to +32°С.

Standard equipment

  • the casing is filled with polyurethane foam under high pressure, which minimizes the loss of cold from the display case;
  • body parts are made of galvanized steel with polymer coating, welding of parts is not applicable – corrosion elimination;
  • galvanized steel telescopic demonstration trays with polymer coating, and stainless steel countertop of the seller — protection against corrosion;
  • the showcase is equipped with three levels of glass shelves – an additional increase in the demonstration area;
  • bent tempered panoramic glass;
  • energy-saving LED backlight of the internal volume;
  • the display case is equipped with the electronic control panel with automatic defrost evaporator function.

Options

  • the ability to choose the color of the base;
  • it is possible to set display cases in a line of any length

Technical data

Technical dataSiena-K
Length, mm129015901790129015901790
Width, mm920*1120**
Height, mm1500
Ambient temperature, °С+12…+32
Temperature in effective volume, °С+2…+8
Supply voltage, V220±22
Max power consumption, kW500600700500600700
Power of heating elements’ defrost, W400500600400500600
Daily electric energy consumption at ambient air temperature of +22°С, kWh7,110,412,47,110,412,4
Display area, m20,80,981,151,01,241,44
Mass of uniformly loaded product on tray, kg30
Cooling typestatic
Shelves area, m20,70,961,00,70,961,0
Mass, kg180220250190230260
* – a model with straight glass;
** – a model both with straight, and with bent glass

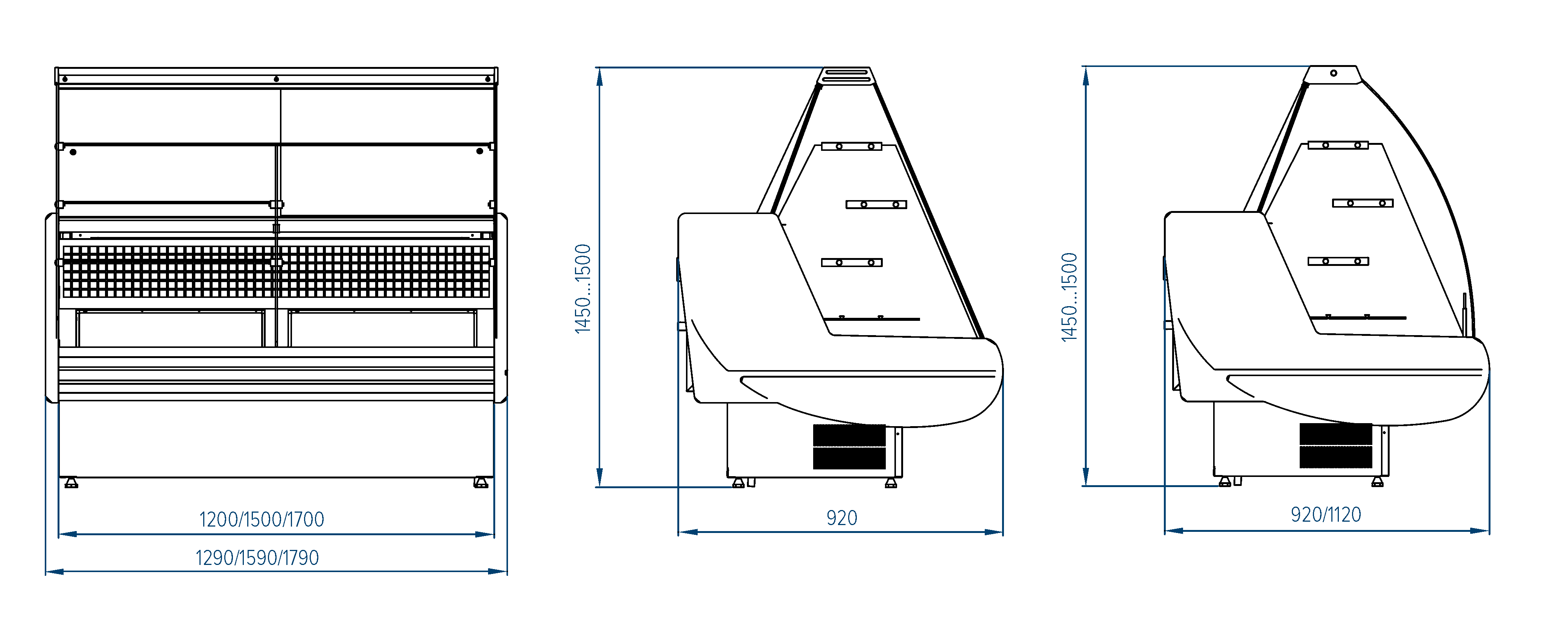

Schema
