Refrigerated display case Delia closed angle

Refrigerated display case Delia-UV closed angle

Modern design, imported components, ergonomics – all these features will allow Delia display cases to decorate the sales area of ​​any store to organize sales through the counter.
It is used to create a line of Delia display cases of various configurations. It can be used as a separate showcase with the installation of standard sidewalls.

Competitive advantages

  • depth of exposition 800 mm;
  • increased incline of demonstration trays improves visibility of exposition and circulation of cooling air;
  • the medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • uninterrupted operation at ambient air temperature up to +32 ° С (for showcases with a static type of cooling).

Standard equipment

  • stainless steel demonstration trays and seller’s tabletop are corrosion protection
  • bent tempered panoramic glass is risen upwards and hold with the help of gas lifts and facilitates its maintenance
  • energy-saving LED backlight of the internal volume
  • the casing is filled with polyurethane foam under high pressure, which minimizes the loss of cold;
  • body parts are made of galvanized steel with polymer coating, welding of parts is not applicable;
  • capacious cooled box;
  • the display case is equipped with the electronic control panel with function of an automatic defrosting of the evaporator.

Options

  • an additional temperature indicator in the working volume;
  • the ability to choose the color of the base;
  • it is possible to manufacture showcases with a temperature range from -5 ° C to +5 ° C;
  • setting Delia showcases in a line of any configuration is possible;
  • models with both static and dynamic cooling are produced.
  • we produce models with built-in refrigeration unit and for remote cold supply.

Technical data

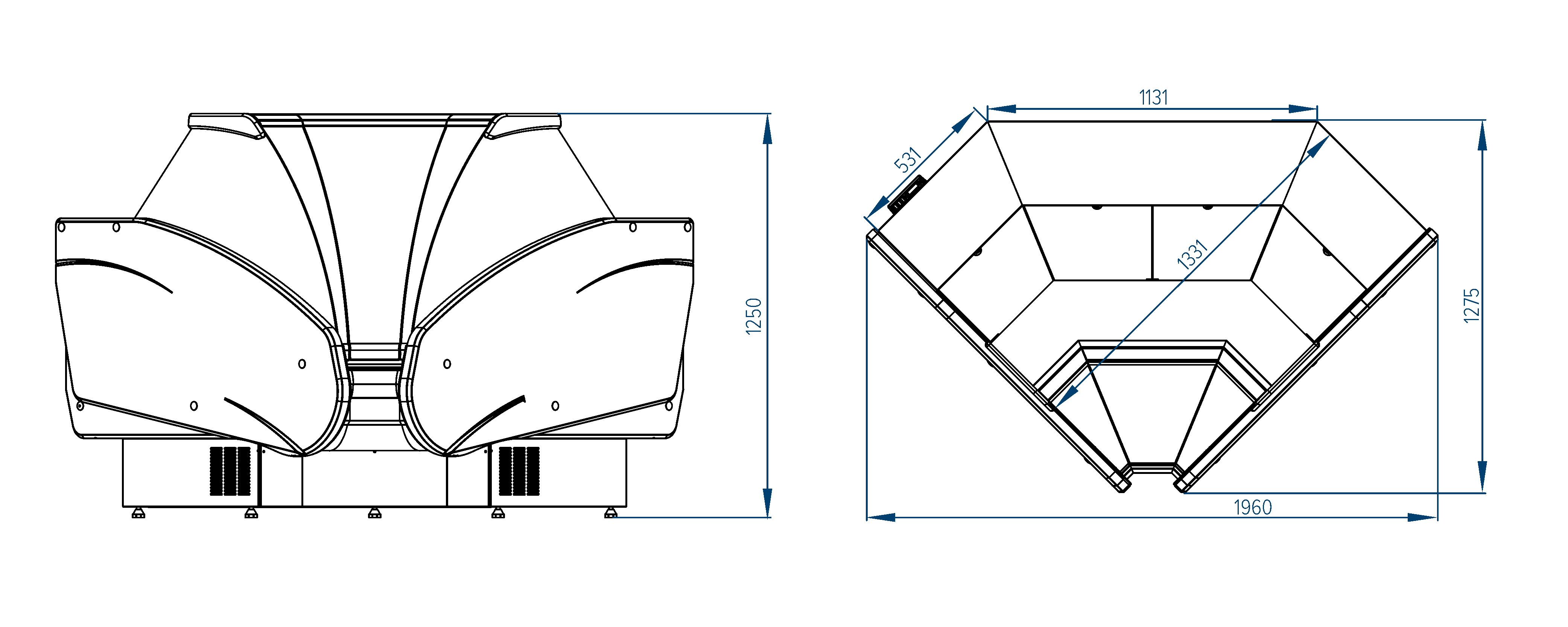

Technical dataDisplay case  Delia  closed angle
Width, mm1331
Height, mm1250
Ambient temperature, °С+12…+32+12…+25
Temperature in effective volume, °С0…+8+2…+8
Supply voltage, V220±22
Max power consumption, W1300656
Power of heating elements’ defrost, W700
Daily electric energy consumption at ambient air temperature of +22°С, kWh9,349,34
Display area, m20,81,2
Mass of uniformly loaded product, kg60
Cooling typestaticdynamic
Mass, kg220
