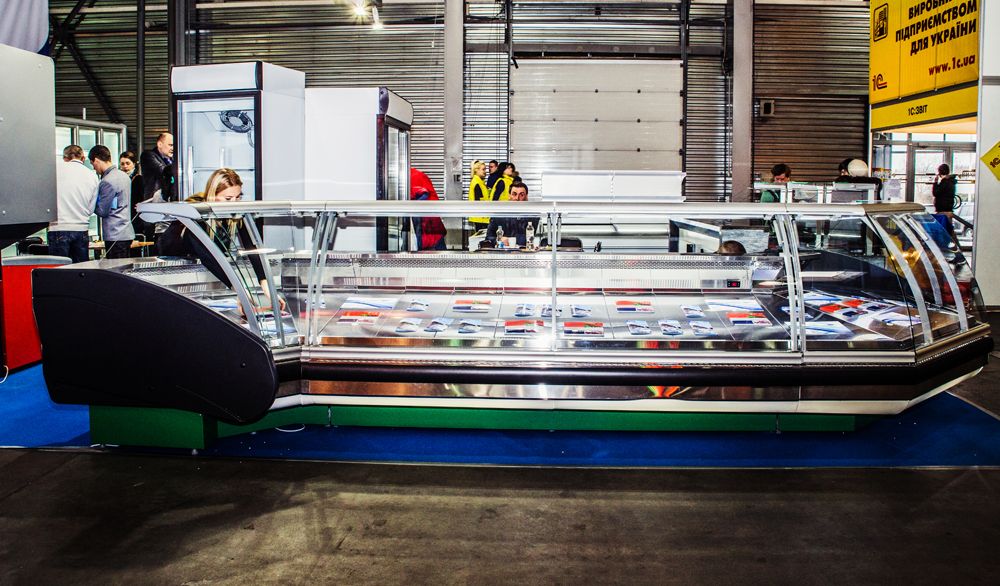

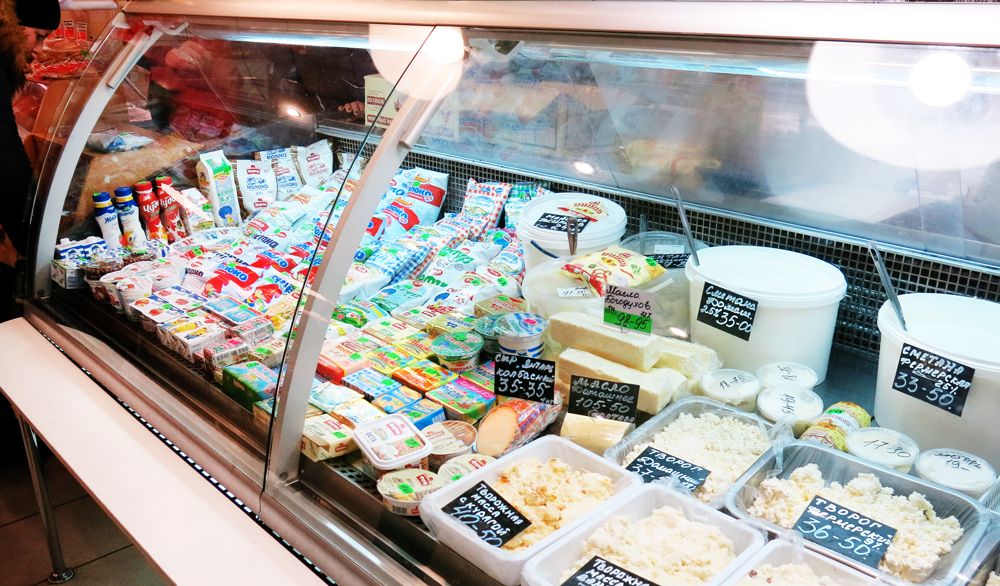

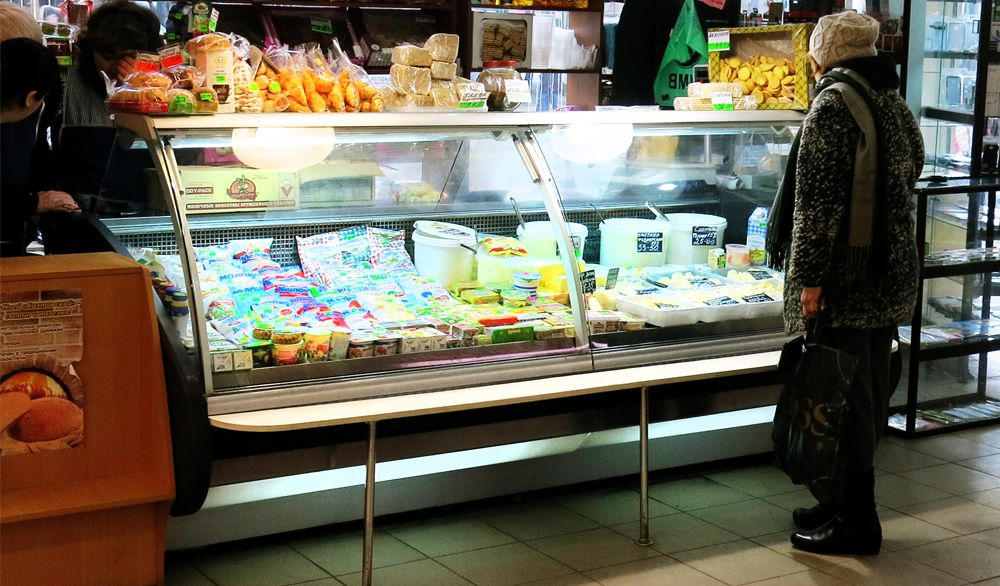

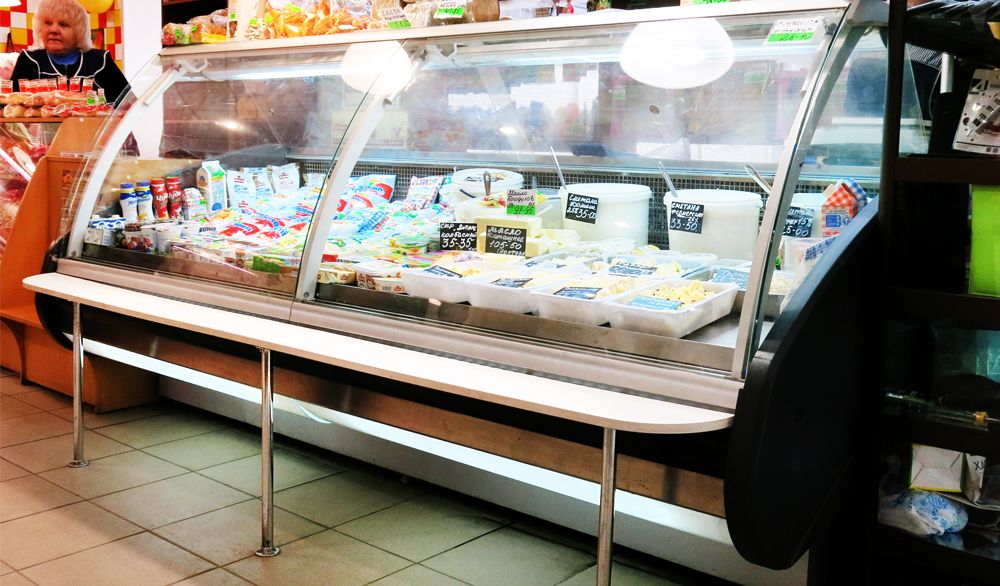

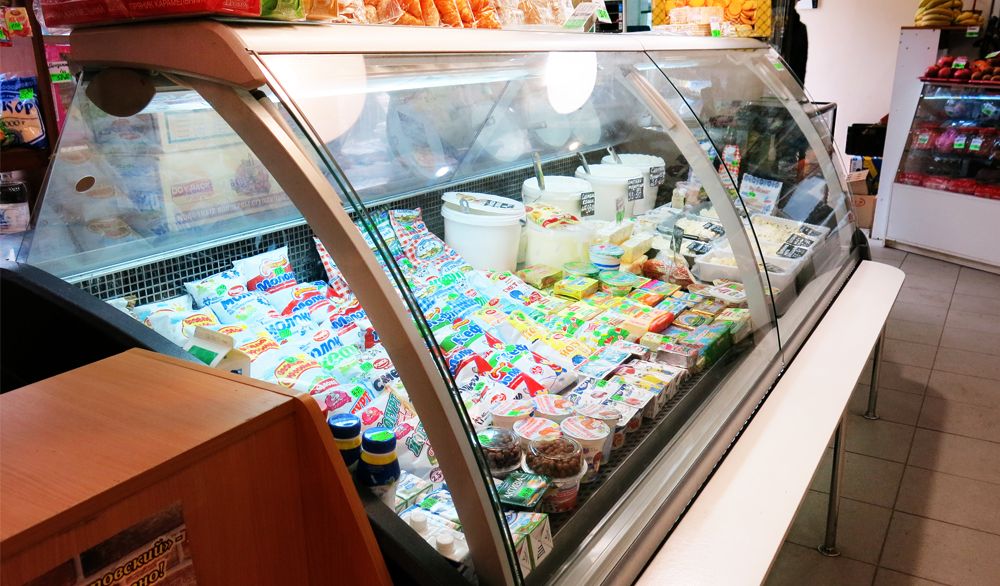

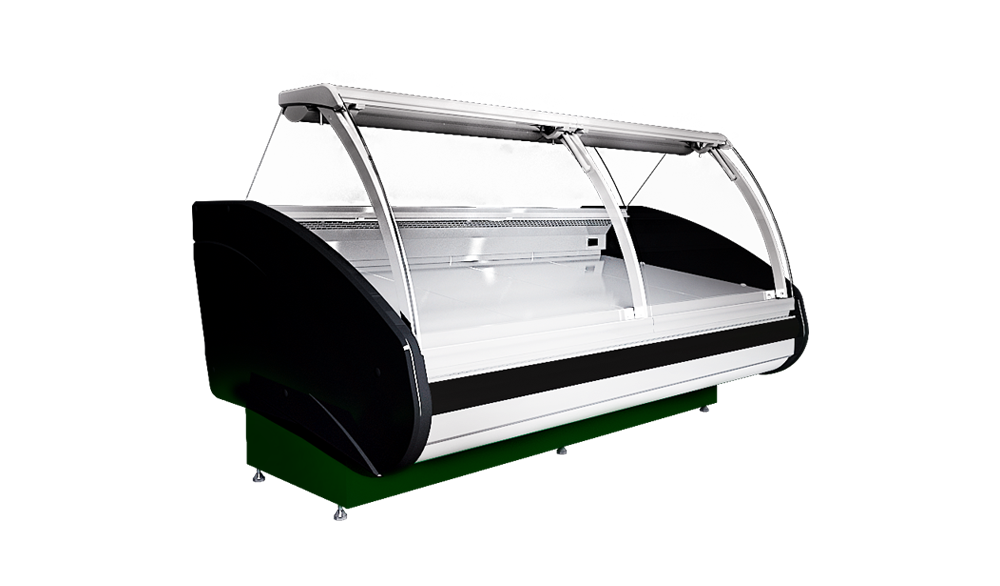

Refrigerated display case Delia

Refrigerated display cases Delia

Modern design, imported components, ergonomics – all these features allow Delia showcases to decorate the sales area of any store, supermarket or trade pavilion. Showcases are presented in various lengths, which allows the most efficient use of shopping areas.

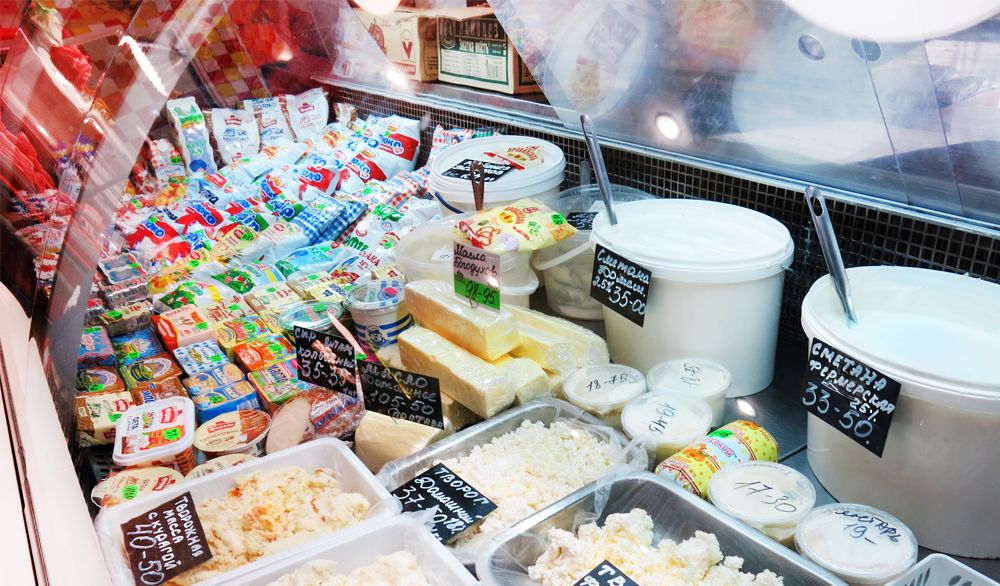

The increased length and incline of the exposure allow for the most effective presentation of the foods to the buyer.

Competitive advantages

  • depth of exposition 800 mm;
  • stainless steel stock box;
  • the medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • the casing is filled with polyurethane foam under high pressure, which minimizes the loss of cold from the display case;
  • increased incline of demonstration trays improves visibility of exposition and circulation of cooling air;
  • uninterrupted operation at ambient air temperature up to +32 ° С (showcases with a static type of cooling).

Standard equipment

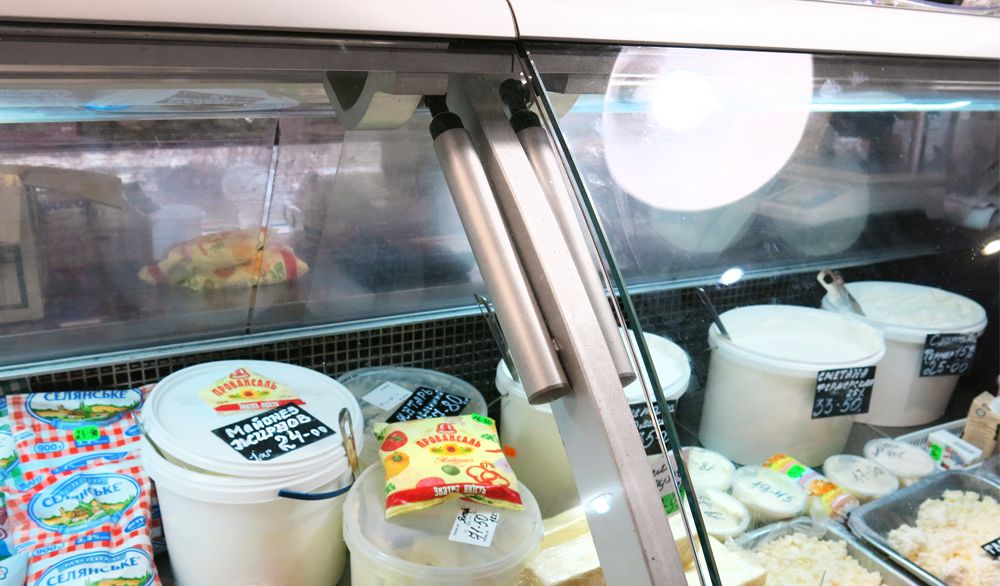

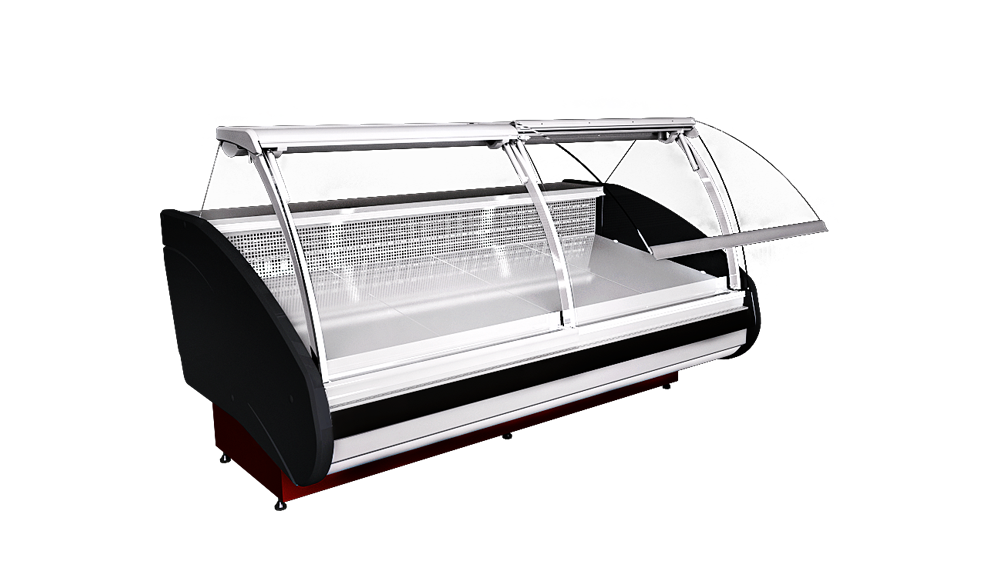

  • bent tempered panoramic glass is risen upwards and hold with the help of gas lifts
  • capacious cooled box for inventory;
  • energy-saving LED backlight of the internal volume and base of the showcase;
  • the display case is equipped with the electronic control panel with function of an automatic defrosting of the evaporator;
  • body parts are made of galvanized steel with polymer coating, welding of parts is not applicable – corrosion elimination;
  • stainless steel demonstration trays and seller’s tabletop

Options

  • an additional temperature indicator in the working volume;
  • it is possible to manufacture showcases with a temperature range from -5 ° C to +5 ° C;
  • the ability to choose the color of the base;
  • we produce models with built-in refrigeration unit and for remote cold supply.
  • setting display cases in a line of any length and configuration is possible;
  • models with both static and dynamic cooling are produced.

Technical data

Technical dataDisplay cases  Delia / Delia-Dynamic
Length, mm, with sidewalls11001300160018002100250031003700
Width, mm1245
Height, mm1250
Ambient temperature, °С+12…+32/+12…+25
Temperature in effective volume, °С0…+8/+2…+8
Supply voltage, V220±22
Max power consumption, W44055065075096012401420
Power of heating elements’ defrost, W400/-500/-600/-700/-900/-1000/-1200/-
Daily electric energy consumption at ambient air temperature of +22°С, kWh5,65,78,610,213,415,617,2
Display area, m20,8/0,920,96/1,11,2/1,441,36/1,561,6/1,841,92/2,22,4/2,72,88/3,3
Mass of uniformly loaded product, kg40/4553/5866/7175/8088/92106/111145/150184/189
Cooling typestatic / dynamic
Mass, kg125137150177203242295350

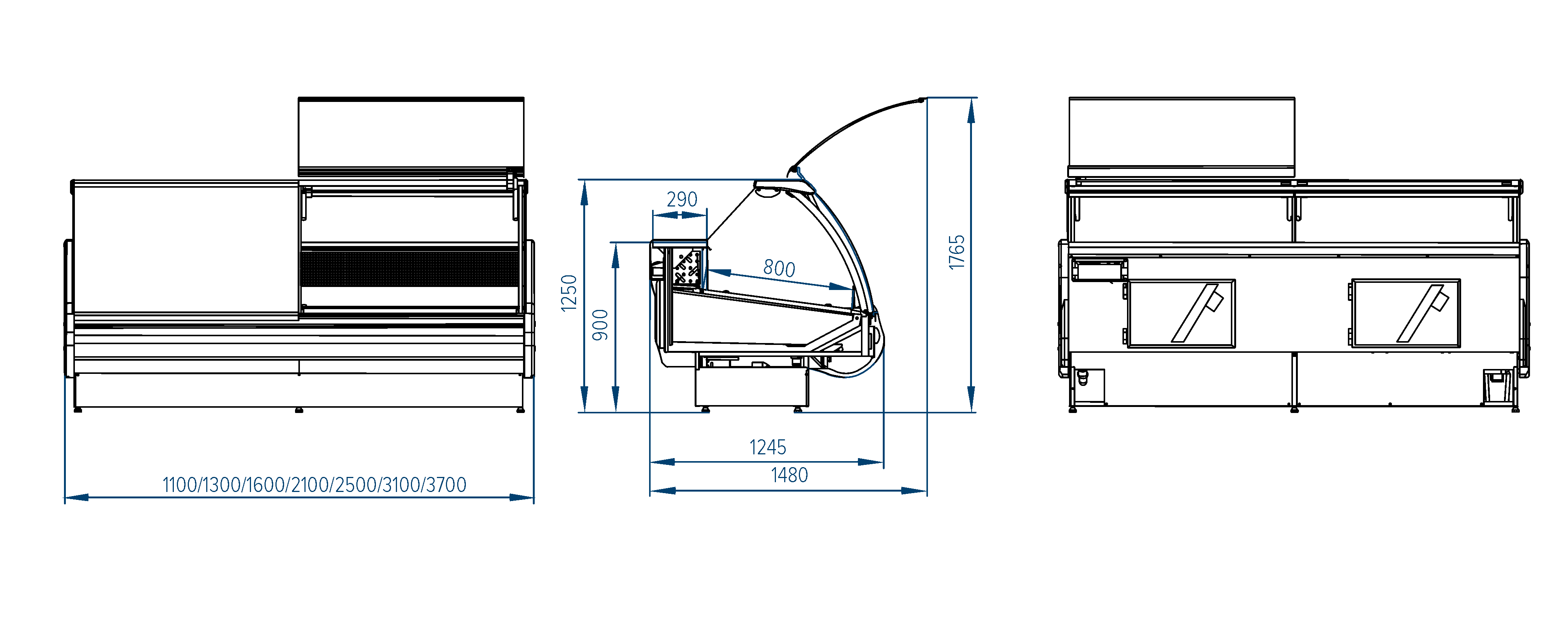

Schema

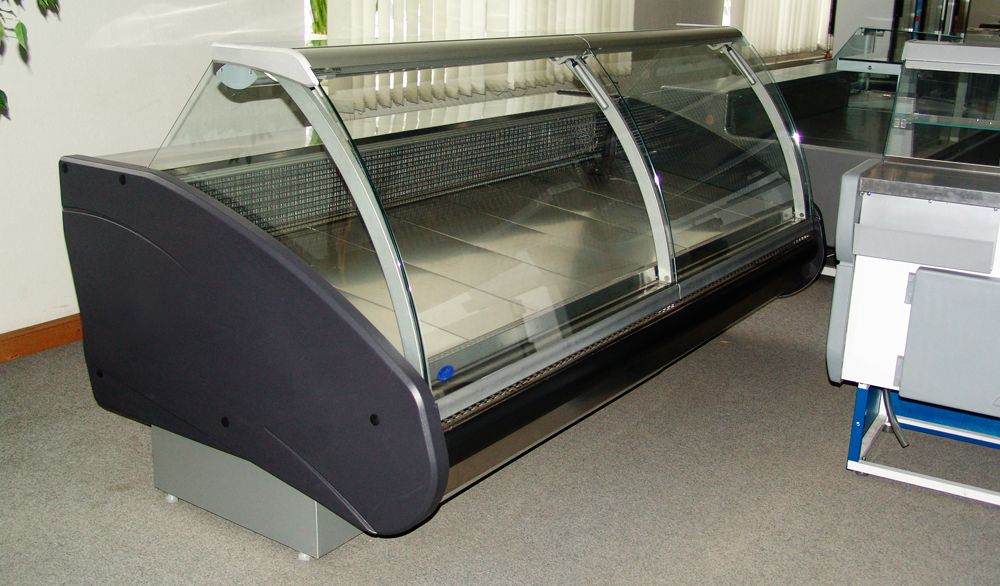

Refrigerated displey case Delia
Refrigerated displey case Delia
