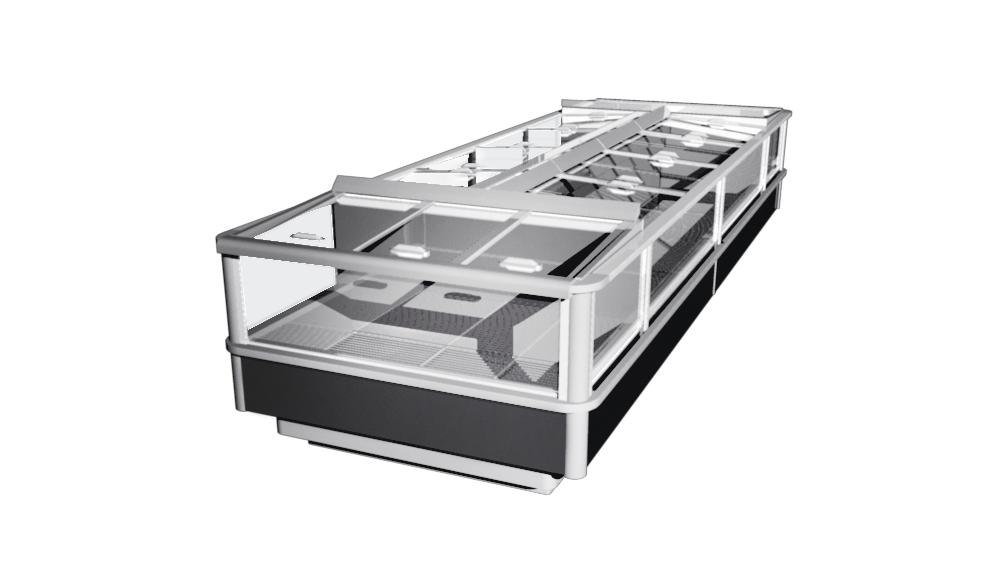

Island low-temperature showcase Venezia (two-volume)

Island low-temperature showcase Venezia (two-volume)

Bonnets (island freezer showcases) can be offered with different showcases to create a complete proposal for staffing stores of various formats. The design of the showcase allows to present the goods to the buyer maximum available, including through the panoramic side glasses. Bonnets can be completed in separate rows or islands.

Standard equipment

  • side panels with double-glazed unit with increased visibility;
  • the showcase is equipped with a powerful paired low-temperature unit that allows you to maintain the temperature in the bonnet up to -24 ° С;
  • decorative elements are made of aluminum profile;
  • forced air circulation in the volume;
  • condensate evaporator tank;- energy saving night blinds;
  • energy-saving LED-lighting of internal volume;- the bannet is equipped with the electronic control panel with function of an automatic defrosting of the evaporator;
  • refrigerated display cases are made for remote cold supply.

Options

  • side walls with panoramic glass or deaf;
  • it is possible to manufacture showcases with a superstructure with illuminated shelves;
  • it is possible to supply a display case with a solenoid valve for supplying a refrigerant;
  • the ability to choose the color of the base;
  • the possibility of docking showcases in line;
  • the use of built-in hardened glass covers reduces the energy consumption by 30% and limits the dispersion of cold into the room.

Warranty from the manufacturer – 2 years

Technical data

Technical dataVenezia-1,25
Length L, мм, with sidewalls205526753925
Width, mm1060х2
Height, mm910
Useful volume*, dm3550х2730х21100х2
Display area, m21,5х22х23х2
Mass of uniformly loaded product, kg, not more85х2110х2165х2
Ambient temperature, °С
Temperature in internal volume, °С-18 to -24**
AC mains voltage, V380±38
Refrigerating capacity**, kW, not more1000х21400х22100х2
Maximum power demand, kW2,62х24х25,2х2
Daily electric energy consumption at ambient air temperature of 22°С, кWh8,64х213,1х215,8х2
Mass, kg175х2200х2350х2
Cooling typedynamic
Connecting dimensions, mm, no more than
diameter of drainage pipe
diameter of liquid pipe
suction pipe diameter
40
10
16
*- useful volume is the volume limited by the inner lining and the plane passing through the loading line.
**- at boiling temperature minus  35 °С
