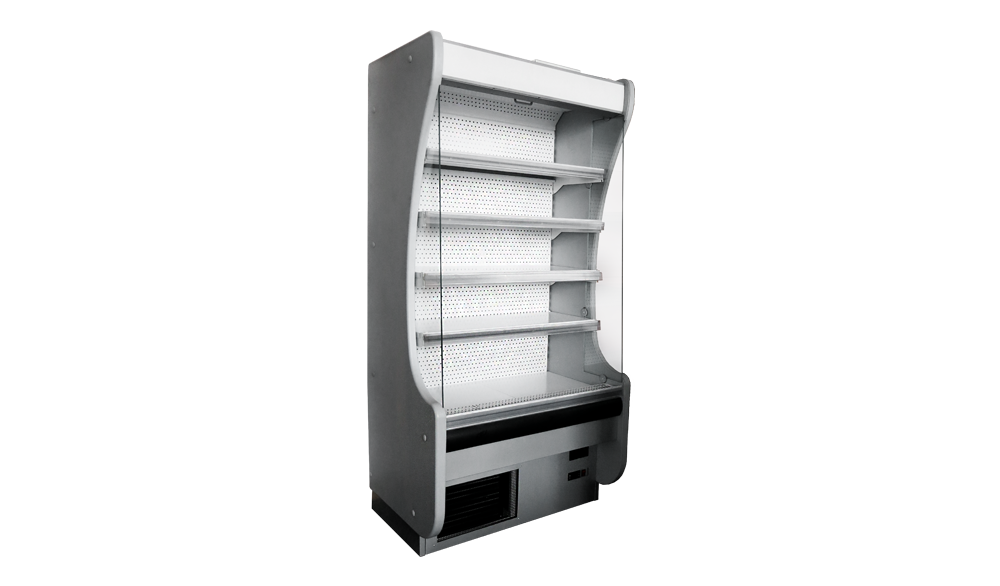

Refrigerated multideck Mirano

Refrigerated multideck Mirano

Refrigerated multidecks (wall-sited) are ideal for self-service stores, they can be offered with various display cases to create a complete offer for staffing stores of various formats (mostly self-service) to create an individual style. The design of the multideck allows to present the goods to the buyer as available as possible, including through panoramic side glasses.

Competitive advantages

  • body parts are made of galvanized steel with a polymer coating, welding of parts is not used (corrosion elimination);
  • the housing is filled with polyurethane foam under high pressure, which minimizes the loss of cold from the display case;
  • automatic control of the temperature and defrost of the evaporator;
  • a medium-temperature compressor saves energy costs;
  • forced circulation of air in the volume with the help of a fan is for uniform cooling of the product in the whole exposition volume;
  • uninterrupted operation at ambient temperature up to + 25°С;

Standard equipment

  • evaporator tank of condensate;
  • four rows of height-adjustable and incline-adjustable shelves with price holders;
  • energy-saving night blinds with a heat-reflecting coating;
  • energy-saving fluorescent illumination of the internal volume;
  • panoramic side panels with glazing.

  Options

  • It is possible to manufacture display cases with a temperature range from -5°C to +5°C;
  • the ability to choose the color of the base of the case;
  • refrigerated display cases are manufactured both with built-in refrigeration unit and for remote cold supply;
  • setting display cases in line of any length and destination to save the place of the trading floor.

Technical data

Technical dataMirano
Length with sidewalls, mm99613261950
Depth, mm695
Height, mm2160
Display area, m21,62,73,4
Mass of uniformly loaded product, kg162235
Temperature in effective volume, °Сот +2 до +8
AC mains voltage, V220 ± 22
Cooling capacity, kW1,01,72,2
Max power consumption, kW1,752,83,3
Daily electric energy consumption at ambient air temperature of +22°С without heating element, kWh111720
Daily electric energy consumption at ambient air temperature of +22°С with heating element, kWh1218,522
Cooling typedynamic
Mass, kg175225295

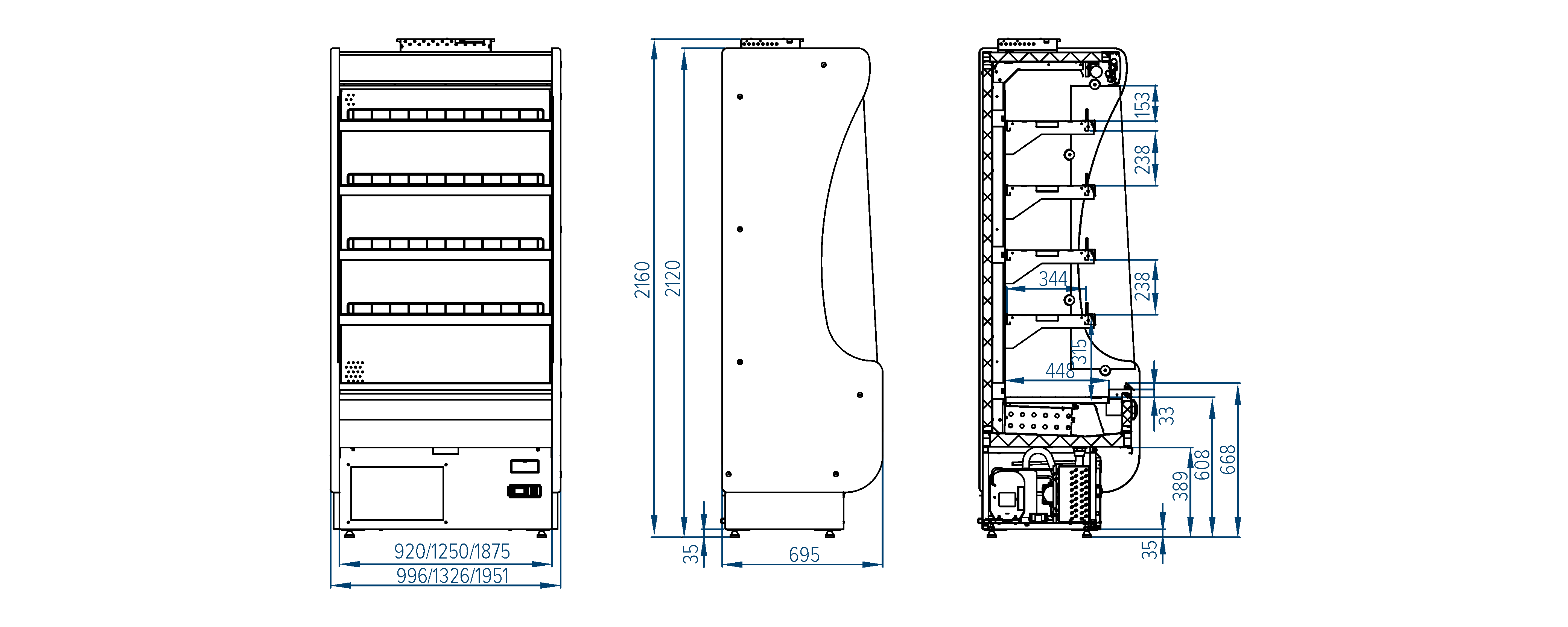

Schema
