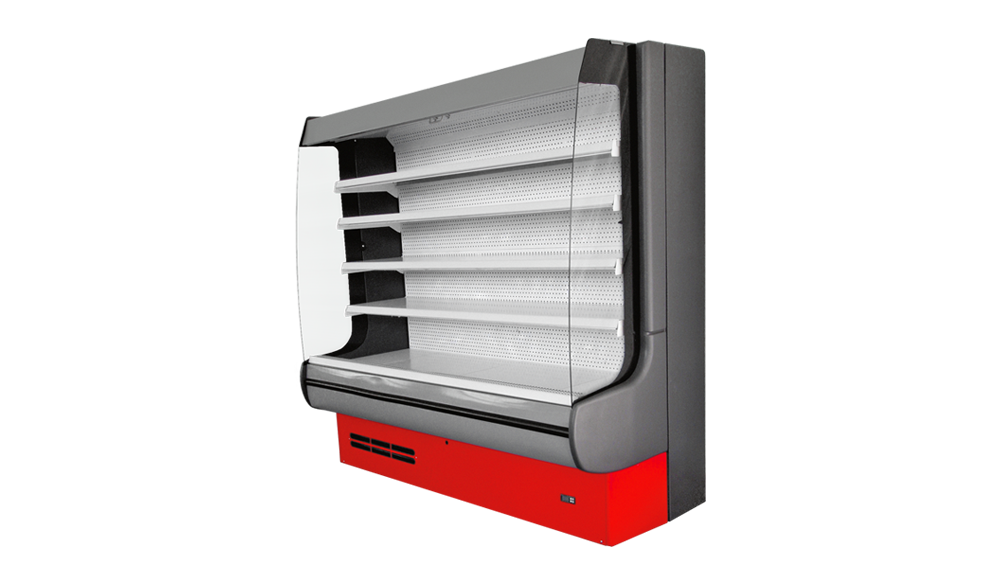

Refrigerated multideck Modena

Refrigerated multideck Modena

Refrigerated multidecks (wall-sited) are ideal for self-service stores, they can be offered with various display cases to create a complete offer for staffing stores of various formats (mostly self-service) to create an individual style.

Competitive advantages

  • body parts are made of galvanized steel with a polymer coating, welding of parts is not used (corrosion elimination);
  • the housing is filled with polyurethane foam under high pressure, which minimizes the loss of cold from the display case;
  • automatic control of the temperature and defrost of the evaporator;
  • a medium-temperature compressor saves energy costs;
  • forced circulation of air in the volume with the help of a fan is for uniform cooling of the product in the whole exposition volume;
  • uninterrupted operation at ambient temperature up to + 25 ° С;

Standard equipment

  • evaporator tank;
  • four rows of height-adjustable and and incline-adjustable shelves with price holders;
  • energy-saving night blinds with a heat-reflecting coating;
  • energy-saving fluorescent illumination of the internal volume;
  • decorative elements of aluminum profiles;
  • panoramic side panels with glazing.

Options

  • it is possible to manufacture display cases with a temperature range from -5°C to +5°C;
  •  production of vegetable multidecks (green color, three rows of shelves, slanted mirror);
  • the ability to choose the color of the base of the case;
  • version without evaporator tank;
  • refrigerated display cases are manufactured both with built-in refrigeration unit and for remote cold supply;
  • setting display cases in line of any length and destination to save the place of the trading floor.

Technical data

Technical dataDisplay case Modena
Length, mm1010136019852500
Depth, mm935
Height, mm1950
Ambient temperature, °С+12…+25
Temperature in effective volume, °С+2…+8
Supply voltage, V220±22
Max power consumption, kW0,91,451,651,9
Daily electric energy consumption at ambient air temperature of +22°С without heating element, kWh, no more than11,7518,020,8622,0
Daily electric energy consumption at ambient air temperature of +22°С with heating element, kWh, no more than12,1518,521,5623,5
Display area, m21,92,74,15,5
Mass of uniformly loaded product, kg105150230300
Mass, kg110150210280

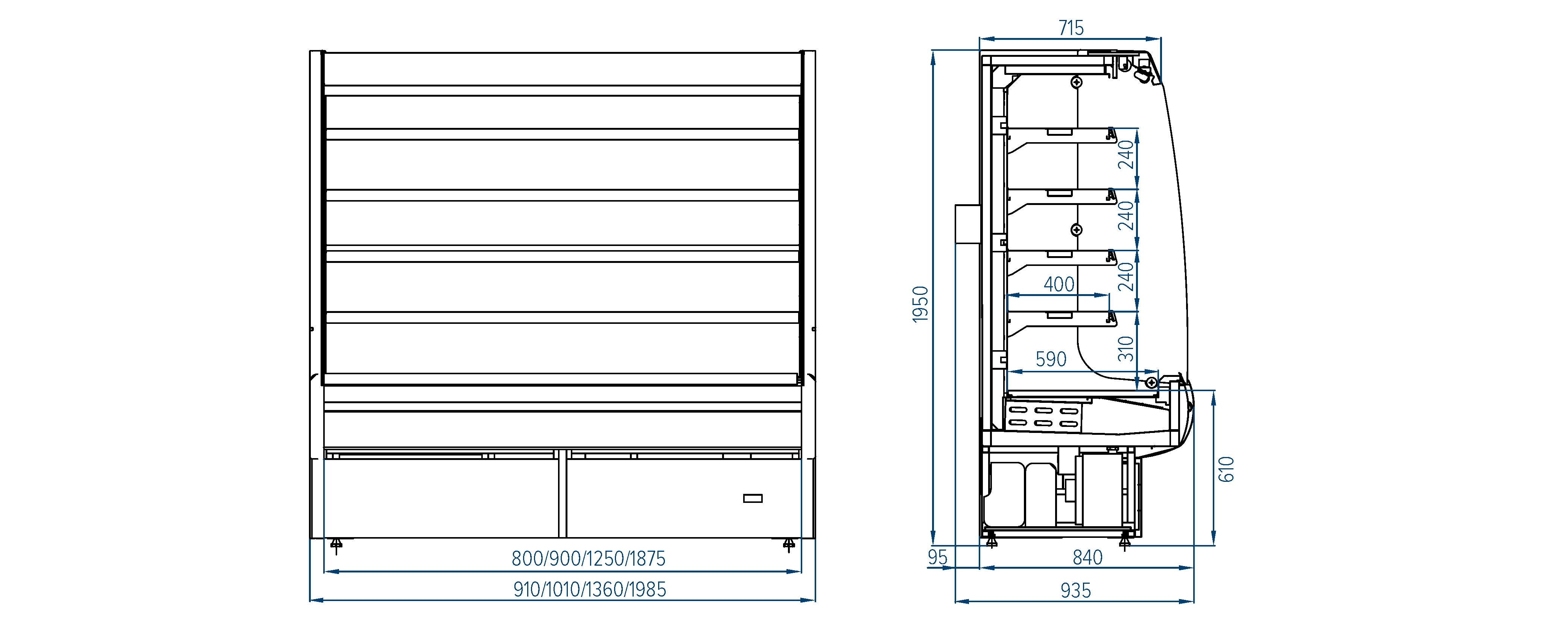

Schema
