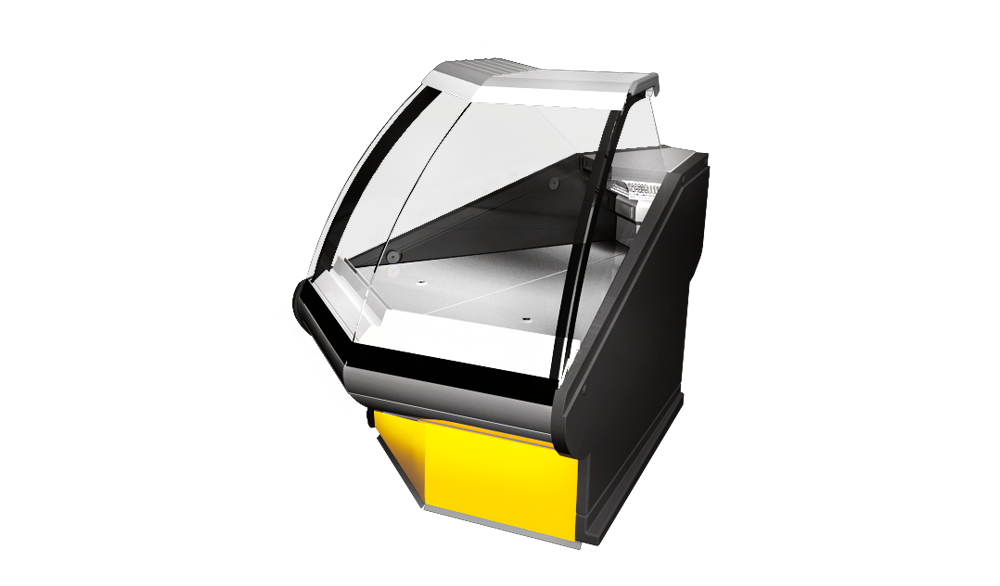

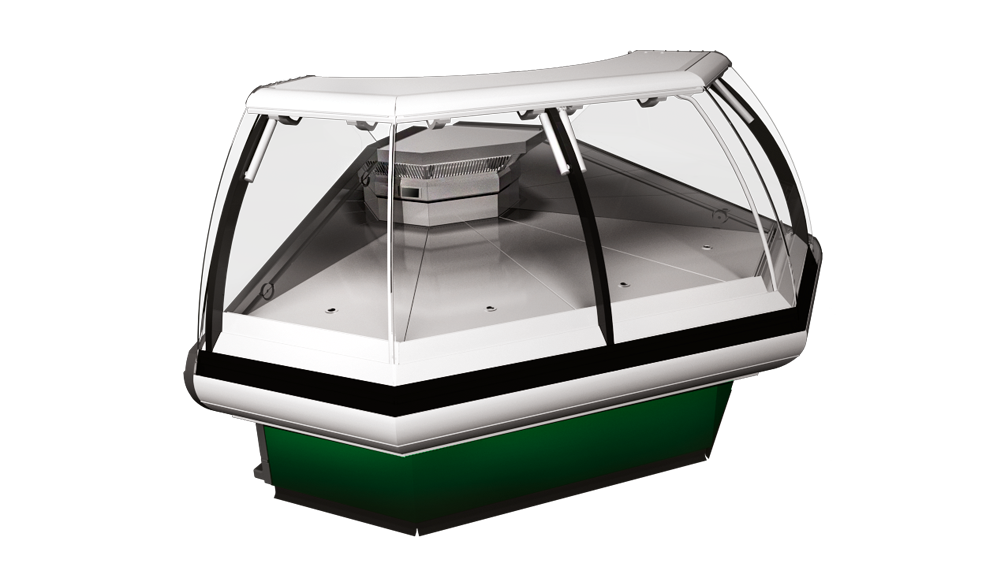

External corner elements of FLORENZIA showcases allow you to line up the showcases of any configuration and maximize the use of retail space. Corner modules 45° increase the efficiency of the use of retail space in small shops and supermarkets where alignment of broken lines of showcases with a 90º angle is inefficient.
| Technical data | FLORENZIA UN-45 | FLORENZIA UN-90 |
|---|---|---|
| Width (without sidewalls), mm | 1280 | 1360 |
| Height, mm | 1200 | |
| Useful volume*, dm3 | 90 | 180 |
| Display area, m2 | 0,55 | 1,1 |
| Mass of uniformly loaded product, kg | 30 | 60 |
| Ambient temperature, °С | от +12 до 25 | |
| Temperature in effective volume, °С | от +2 от +4** | |
| AC mains voltage, V | 220±22 | |
| Refrigerating capacity**, W, not more than | 200 | 320 |
| Maximum power demand (without defrost heating element), W | 115 | 260 |
| Power of defrost heating element, W | 250 | |
| Daily electric energy consumption at ambient air temperature of 22о С, kWh, not more than | 3,2 | 5,3 |
| Mass, kg | 80 | 150 |
| Cooling type | dynamic | |
| Connecting dimensions, mm, no more – thandiameter of drainage pipe – diameter of liquid pipe – suction pipe diameter | 40 10 16 | |
| * Useful volume – Volume of glazed compartment till the layout line ** at boiling temperature -10 ºС | ||
