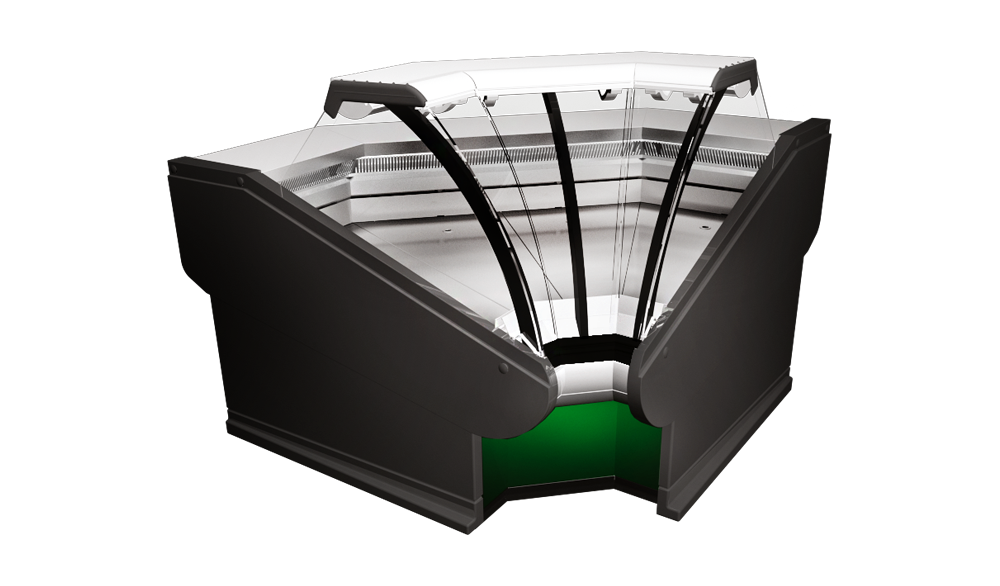

Internal corner elements of FLORENZIA showcases allow you to line up the showcases of any configuration and maximize the use of retail space. Equipped with dynamic cooling system they can be used as stand-alone showcases with the installation of standard sidewalls.

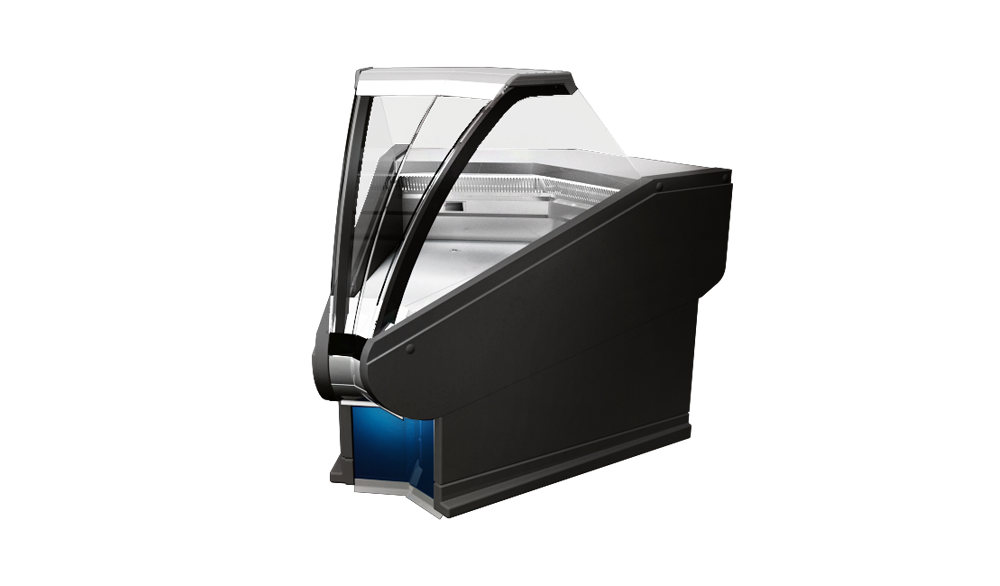

Corner modules 45° increase the efficiency of the use of retail space in small shops and supermarkets where alignment of broken lines of showcases with a 90º angle is inefficient.
| Technical data | FLORENZIA UV-45 | FLORENZIA UV-90 |
|---|---|---|
| Width (without sidewalls), mm | 1287 | 1387 |
| Height, mm | 1200 | |
| Useful volume*, dm3 | 93 | 185 |
| Display area, m2 | 0,55 | 1,1 |
| Mass of uniformly loaded product, kg, not more than | 30 | 60 |
| Ambient temperature, °С | от +12 до +25 | |
| Temperature in effective volume, °С | от +2 от +4** | |
| AC mains voltage, V | 220±22 | |
| Refrigerating capacity**, W, not more than | 175 | 300 |
| Maximum power demand (without defrost heating element), W | 50 | 526 |
| Daily electric energy consumption at ambient air temperature of 22о С, kWh, not more | 1,4 | 3,2 |
| Mass, kg | 70 | 150 |
| Cooling type | dynamic | |
| Connecting dimensions, mm – diameter of drainage pipe – diameter of liquid pipe – suction pipe diameter | 40 10 16 | |
| * Useful volume – Volume of glazed compartment till the layout line ** at boiling temperature -10ºС | ||
