Refrigerated display case Florenzia fish on ice

florenzia fish on ice
Refrigerated display case Florenzia fish on ice

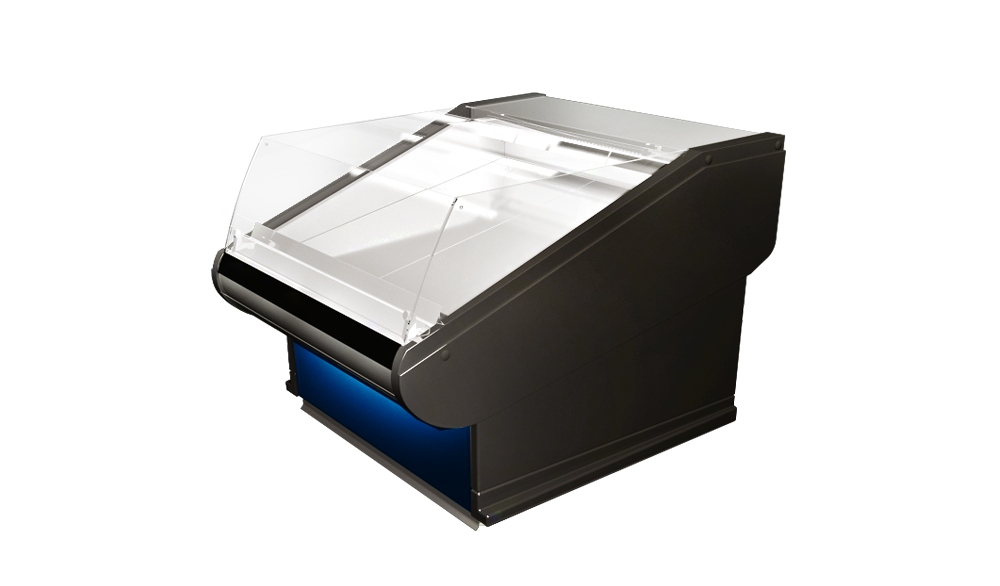

Refrigerated display case Florenzia “fish on ice”

This showcase is made in the same style as the showcases of the Florenzia model range. It is installed in retail outlets and catering. Such equipment has an inclined open bath with artificial ice. Live fish and various seafood are laid out directly on the ice. This makes it possible to preserve the freshness of products for a long time and take care of their attractive appearance. Perforated trays provide drainage of melt water. The further discharge of melt water occurs through a special fitting.

Warranty 2 years



Technical data

Technical dataFlorenzia fish-on-ice
Length L, мм, with sidewalls10301330193025303730
Width, mm1260
Height, mm900
Ambient temperature, °Сот +12 до + 25
Temperature on the shelf surface, °Сот -3 до 0
AC mains voltage, V220±22
Maximum power demand, W8080100100240
Power of defrost heating element, kW0,40,40,60,91,2
Display area, m20,71,051,52,13,2
Daily electric energy consumption at ambient air temperature of 22 °С (without defrost heating element), kWh2,42,43,53,54,5
Refrigerating capacity*, kW, not more700750112515002250
Mass of uniformly loaded product, kg, not more456090120180
Mass, kg70121170209297
Cooling typedynamic
Connecting dimensions, mm, no more than
– diameter of drainage pipe
– diameter of liquid pipe
– suction pipe diameter		40
10
16
*- at boiling temperature minus  10 °C
