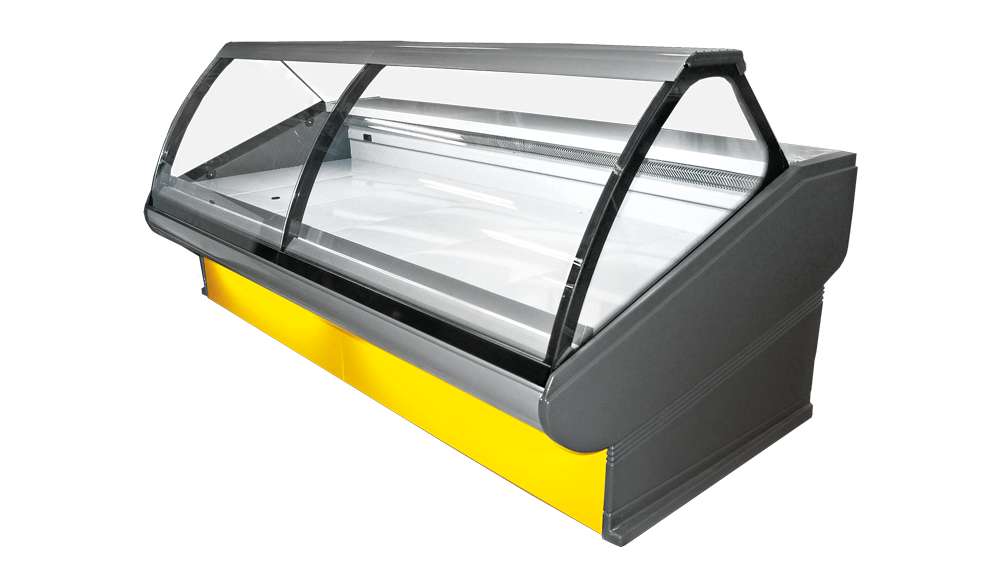

Refrigerated display case Florenzia

Refrigerated display case Florenzia

Refrigerated showcase Florenzia combines ultramodern design and perfect technical performance. The large depth of the display, the absence of the rear racks of the glazing, the illumination of the exposition area and the base of the display case will create maximum comfort for buyers and staff. Dynamic cooling system and front glass ventilation prevent condensation. Tempered curved glass rises up and is held by gas microlifts, creating maximum comfort when laying out the goods. The modern production base of the company allows to produce showcase modules up to 3600 mm long.

Cooled storage boxes are installed in the showcase, and they can be made in two versions: with drawers, or like a box with doors. Showcase for cooled meat products demands the installation of defrosting heating elements and the temperature in the useful volume from 0 to +2 ºС. It is possible to manufacture showcases with a temperature range from -5 to + 5 ºС,

It is possible to manufacture showcases with a low front glass – Florenzia-S (self), which complements the model range of FLORENZIA showcases. Low front glass creates maximum comfort when laying out the goods. The showcase is designed for the demonstration and sale of packaged food in self-service mode.

Warranty 2 years.



Technical data

Technical dataFlorenzia
Length L, мм, with sidewalls10301330193025303730
Width, mm1260
Height, mm1200
Ambient temperature, °С+12…+25
Temperature in effective volume, °С+2…+4
AC mains voltage, V220±22
Maximum power demand, W200200300370530
Power of defrost heating element*, W4004006009001200
Daily electric energy consumption at ambient air temperature of 22 ºС (without defrost heating element), kWh, not more4,84,86,38,912,8
Refrigerating capacity**, kW, not more0,450,60,91,21,8
Display area, m20,831,11,672,23,3
Mass of uniformly loaded product, kg, not more456090120180
Cooling typedynamic
Mass,kg115130200260380
Connecting dimensions, mm, no more than

  • diameter of drainage pipe
  • diameter of liquid pipe
  • suction pipe diameter
40
10
16
* – at temperature in useful volume from 0 to 2ºС,
**- at boiling temperature minus 10 ºС.
