Refrigerated display case San Remo

Refrigerated display case San Remo

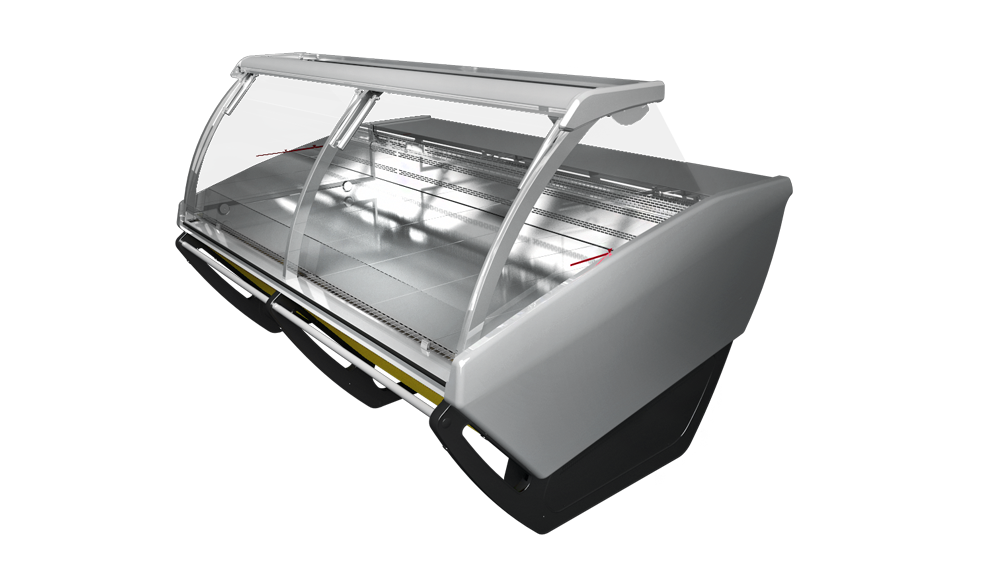

A distinctive feature of the model range San Remo is the air design. The case on thin supports does not have a bulky foundation, and it creates the impression that the showcase hovers above the ground. A dynamic cooling system and evaporators with an increased heat exchange surface allow you to accurately maintain the desired temperature regime at any exposure place. The tempered front glasses rise up and fixed with microlifts. Glass bump in useful volume ensures optimum air exchange and prevents the formation of condensate.

In showcases  for temporary storage and demonstration of chilled meat we recommend the installation of defrosting heating elements and a temperature in the useful volume from 0 to +2 ºС. Possible execution of showcases “self” (low front glass) and with a temperature range from -5 to + 5 ºС.

Warranty from the manufacturer – 2 years

Technical data

Technical dataSan Remo
Length, mm L1330193025303730
Width, mm1270
Height, mm1200
Ambient temperature, °С+12…+25
Temperature in effective volume, °С+2…+4
AC mains voltage, V220±22
Maximum power demand  (without defrost heating element), kW0,120,170,220,32
Power of defrost heating element*, W4006009001200
Daily electric energy consumption at ambient air temperature of 22 °С (without defrost heating element), kWh, not more than2,243,244,446,24
Refrigerating capacity**, kW, not more than0,60,91,21,8
Display area, m21,11,652,23,3
Mass of uniformly loaded product, kg, not more than6090120180
Cooling typeдинамический
Mass, kg130195260380
Connecting dimensions, mm, no more than

  • diameter of drainage pipe
  • diameter of liquid pipe
  • suction pipe diameter
40
10
16
* – at temperature in useful volume from 0 to 2ºС,

** – at boiling temperature minus 10 ºС.
