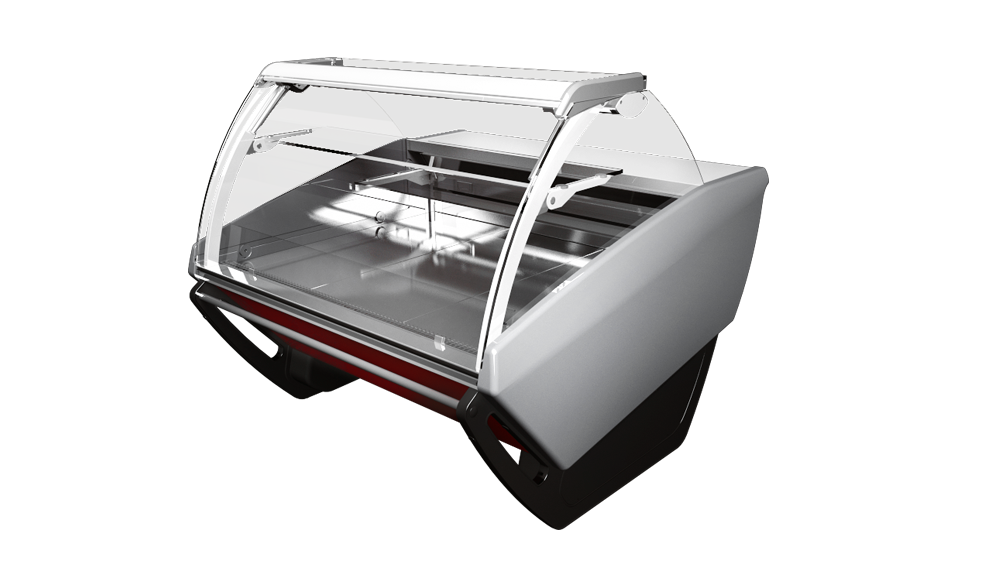

Refrigerated confectionery showcase San Remo

Refrigerated confectionery showcases San Remo

Refrigerated confectionery showcase San Remo

Refrigerated confectionery showcases are executed in uniform design style with other showcases of a model range San Remo. The showcases are equipped with sliding trays with a silent and smooth running system that facilitates access to the bottom row. Two additional glass shelves (lower with adjustable height) significantly increase the display area. Tempered curved glass rises up and is held by gas microlifts, providing access to all rows of food at once. Built-in electrical outlets and a wide tabletop provide maximum comfort for work.

Technical data

Technical dataSan Remo-К
Length L, мм1330193025303730
Width, mm1270
Height, mm1200
Ambient temperature, °С+12…+25
Temperature in effective volume, °С+2…+8
AC mains voltage, V220±22
Maximum power demand  (without defrost heating element), kW0,120,170,220,32
Power of defrost heating element*, W4006009001200
Daily electric energy consumption at ambient air temperature of 22°С, kWh2,243,244,446,24
Refrigerating capacity**, kW, not more0,50,751,01,5
Display area, m21,62,443,254,88
Mass of uniformly loaded product, kg, not more than6090120180
Cooling typedynamic
Mass, kg130195260380
Connecting dimensions, mm,
– diameter of drainage pipe
– diameter of liquid pipe
– suction pipe diameter		40
10
16
*- at temperature in useful volume from 0 to +2 ºС;
** – at boiling temperature -10 ºС;
