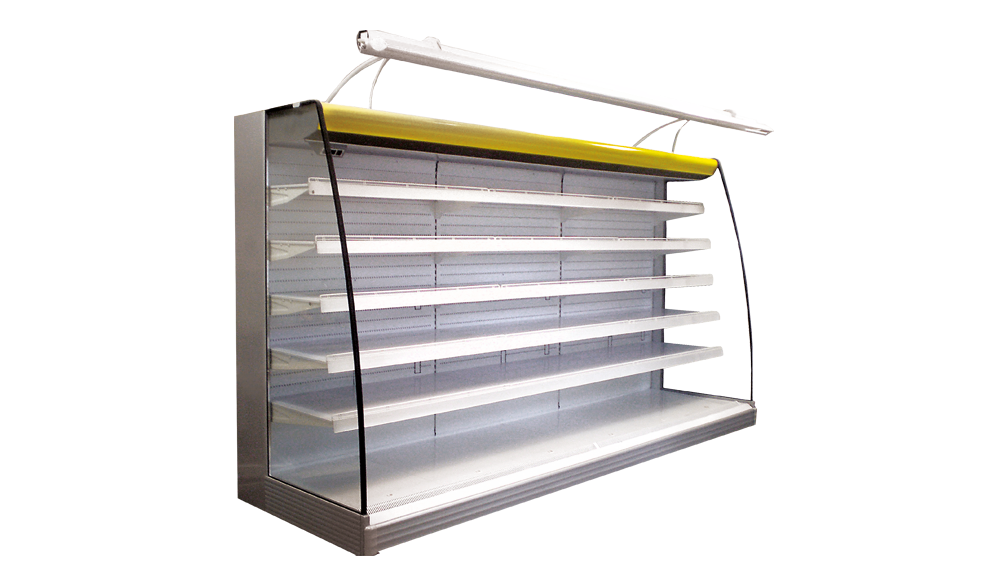

Refrigerated multideck Napoli

Refrigerated multideck Napoli is designed to equip the trading floors of supermarkets.

Design features:

– remote lamp that allows you to illuminate the entire exposure of the multideck from one point of location,
– sidewalls of the rounded shape with an energy saving double-glazed unit, which give the multideck a stylish design and improve the overview of the displayed goods;
– shelves of different depths, varying from level to level, which improves the review of the goods to the buyer and provides convenient access to it.

Standard equipment

  • automatic control of temperature conditions and defrost of the evaporator;
  • decorative elements are made of aluminum profile.- forced air circulation in the volume;
  • side glazing;
  • energy saving night blinds;
  • energy-saving LED-lights in internal volume;

Options

  • gastronomic from +2 to +8 ° С;- meat from 0 to +4°С (with additional defrosting heating element);
  • height of modules is 2345 mm, 2545 mm;
  • the ability to choose the color of the cabinet;
  • the possibility of docking cabinets in line;
  • the possibility to choose the color of the shelf lighting (white, pink);
  • choice of color of demonstration shelves (white, green, black);
  • side panels with double-glazed unit or mirror.

Technical data

Техническая характеристикаNAPOLI
Length L, мм, with sidewalls13201945257038201320194525703820
Width, mm1150/12501080/1180
Height (with lamp bracket), mm25602380
Temperature in effective volume, **, °Сfrom +2 to +8
Ambient temperature, °Сfrom 12 to 25
Refrigerating capacity*, kW2,03,03,55,02,03,04,06,0
AC mains voltage, V220 ± 22
Maximum power consumption , kW0,70,81,01,30,7/1,01,0/1,21,41,8/1,9
Daily electric energy consumption at ambient air temperature of 22°С, kWh2,53,03,54,02,52,853,23,8
Useful volume*, dm31090/
1190
1600/
1745
2140/23403200/34901030/12001515/18002020/24003025/3600
Display are, m24,0/4,35,5/6,07,5/8,011,0/12,03,0/3,34,6/5,056,1/6,79,2/10,1
Mass of uniformly loaded product, kg, not more than200/220300/330400/440600/660180/200255/300360/400510/600
Mass, kg270/300395/440520/580770/860250/280375/420500/560750/840
Connecting dimensions, mm,
– diameter of drainage pipe
– diameter of liquid pipe
– suction pipe diameter
40
10
22
*- at boiling temperature  -10  ºС;
**- Useful volume – the volume limited by the dimensions of the shelves
