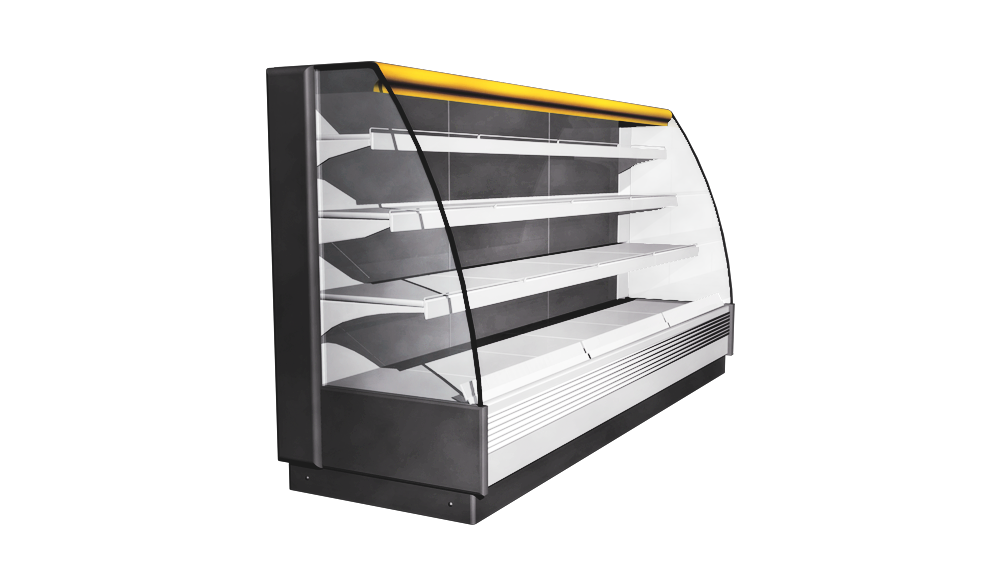

Refrigerated multideck Palermo

Refrigerated multideck Palermo

Refrigerated multidecks Palermo make it possible to perfectly combine the optimal use of sales area and the opportunity to fully present the goods to customers. Due to their small height, Palermo mini-multidecks make it possible to form islands with end elements that do not prevent the view of the trading floor and create a feeling of free space.The wide base and three hinged shelves of variable depth are available to present the goods to customers. Bent panoramic side panel with double-glazed unit will improve the visibility of the exhibited product.

Standard equipment

  • automatic control of temperature conditions and defrost of the evaporator;
  • the most convenient and comfortable display of products at the level of buyers’ eyes;
  • an evaporator with an increased heat exchange surface ensures precise maintenance of the specified temperature conditions;
  • decorative elements are made of aluminum profile.
  • forced air circulation in the volume;
  • side glazing;
  • energy saving night blinds;
  • energy-saving LED-lights in internal volume

Options

  • the ability to choose the color of the base;
  • the possibility of docking multidecks in line;
  • the possibility to choose the color of the shelf lighting (white, pink);
  • choice of color of demonstration shelves (white, green, black);
  • side panels with double-glazed unit or mirror.

Technical data

Technical dataPalermo
Length L, мм, with sidewalls13001945207025303760
Width, mm1110
Height (with lamp bracket), mm1600
Ambient temperature, °Сfrom +12 to +25
Temperature in effective volume, °Сfrom +2 to +8 **
Refrigerating capacity*, kW, not more than1,52,252,434,5
AC mains voltage, V220±22
Maximum power demand  (with defrost heating element), kW0,71/0,56**1,07/0,77**1,1/0,77**1,47/1,17**2,1/1,62**
Maximum power demand  (without defrost heating element), kW0,32/0,17**0,48/0,18**0,5/0,18**0,58/0,28**0,88/0,43**
Daily electric energy consumption at ambient air temperature of 22°С (with defrost heating element), kWh5,58/3,78**7,85/4,15**7,85/4,15**10,0/6,4**15,/9,6**
Daily electric energy consumption at ambient air temperature of 22°С (without defrost heating element), kWh5,18/3,38**7,25/3,55**7,25/3,55**9,1/5,5**13,8/8,4**
Useful volume***, dm36851030109513752060
Display area, m22,53,84,05,07,5
Mass of uniformly loaded product, kg, not more than140210225275410
Mass, kg240360450480720
Mass of refrigerant, g/m, not  more than1000 ****
Connecting dimensions, mm,
– diameter of drainage pipe
– diameter of liquid pipe
– suction pipe diameter
40
10
22
*  at boiling temperature minus 10 °С
** Parameter value for multidecks without  illumination
***  Useful volume – the volume limited by the dimensions of the shelves
****  In case of forming snow coat on the evaporator, the temperature in the useful volume may differ from the specified one
