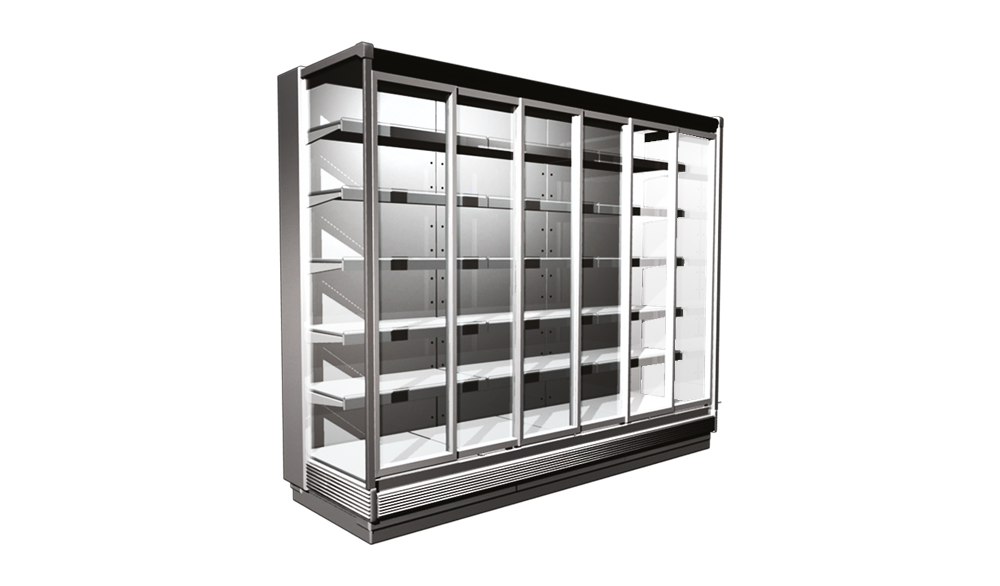

Refrigerated multideck Ravenna
Due to its design, linkage the main elements of the cooling system and the organization of air flow, the Ravenna multideck is more energy efficient than most similar models. Ravenna multideck allows you to present the product in the most favorable way and provides easy access to it.We produce multidecks for gastronomic products, for vegetables, fruits, meat and semi-finished producs, for pastries, etc. The use of energy-saving tempered glass doors allows you to further reduce energy consumption (up to 30%) and limit the dispersion of cold into the room. To create “islands”, an end module is used. The 90º corner module allows you to create curved lines without losing sales space.
Standard equipment
- module for remote cold supply (without sidewalls and shelves);
- double-circuit cooling system (except for modules with a depth of 880mm);
- the evaporator is located on the back wall of the multideck, that leads to an increase in the lifetime of the heat exchanger, and also simplifies sanitary maintenance of the product;
- evaporator blowing fans (1 piece per 1.25 m section);
- white LED illumination of the internal volume;- mechanical energy-saving night blinds;
- electronic controller Danfoss, as an option it is possible to install the controller for remote monitoring;
- thermostatic valve TES-2 (for freon R-404a);
- the upper facade is an aluminum profile, painted in the color specified by the customer according to the RAL catalog, “wood decoration” is also possible;
- lower facade is prepared for the installation of plastic molding-chipper;
- elements of the demonstration part – galvanized steel with a white polymer coating;
- price holder on the basis of the showcase;
- drainage system for condensate drain
Execution versions
- standard: temperature mode + 2 / + 4°С, standard equipment;
- standard with illuminated shelves: temperature regime + 2 / + 4°С, standard equipment and light preparation for 5 rows of hanging shelves;
- vegetable: temperature regime + 4 / + 8°С, standard equipment + green elements of the internal demonstration part + light preparation for 5 rows of shelves + inclined mirror on the back wall;
- meat: temperature regime 0 / + 2°С, standard equipment + black elements of internal demonstration part + evaporator defrost heater + light preparation for 5 rows of hanging shelves + pink upper LED backlight;
- universal: temperature mode 0 / -2°С, standard equipment + stainless steel elements of the demonstration part + evaporator defrost heater + deflector of the air intake grate – double-glazed unit;
- closed angle 90 °- end: – used when placing showcases in the island;
- economy: difference from standard equipment: upper and lower galvanized metal facade with polymer coating (color according to RAL catalog), fans of economy version, evaporator of economy version, controller of economy version.
- at the request of the customer execution of the multidecks with the standard cooling system is possible
