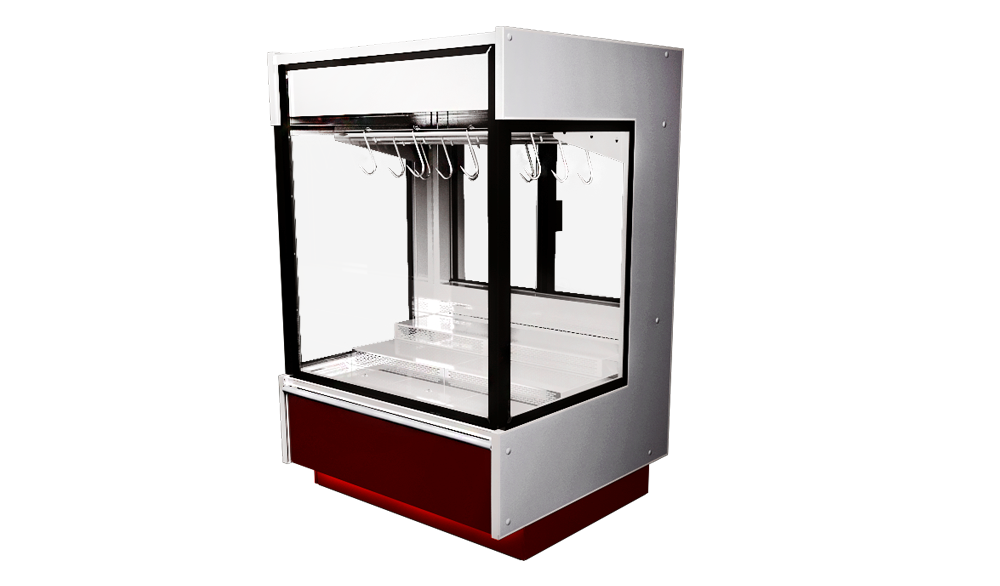

Refrigerated showcase Verona Cube meat

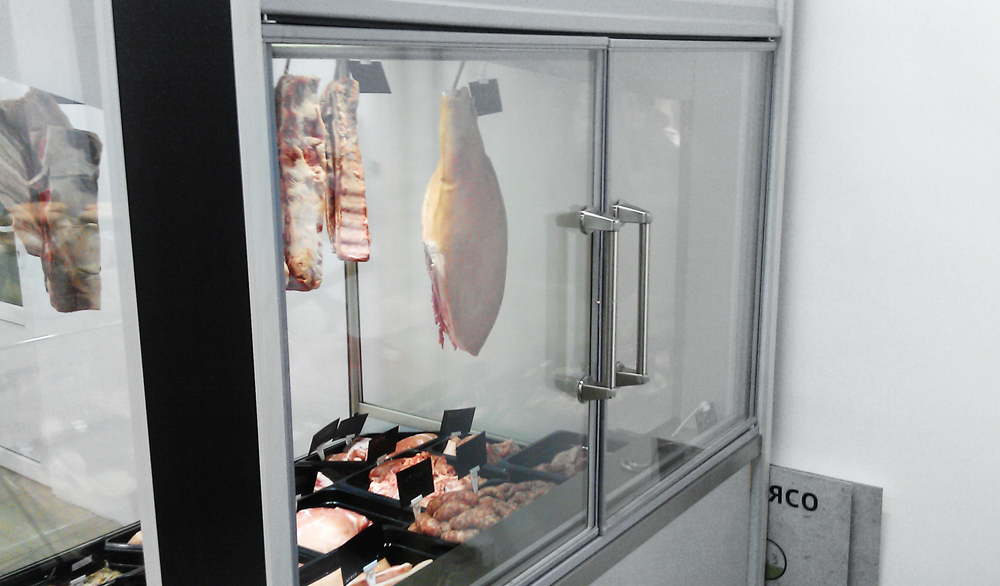

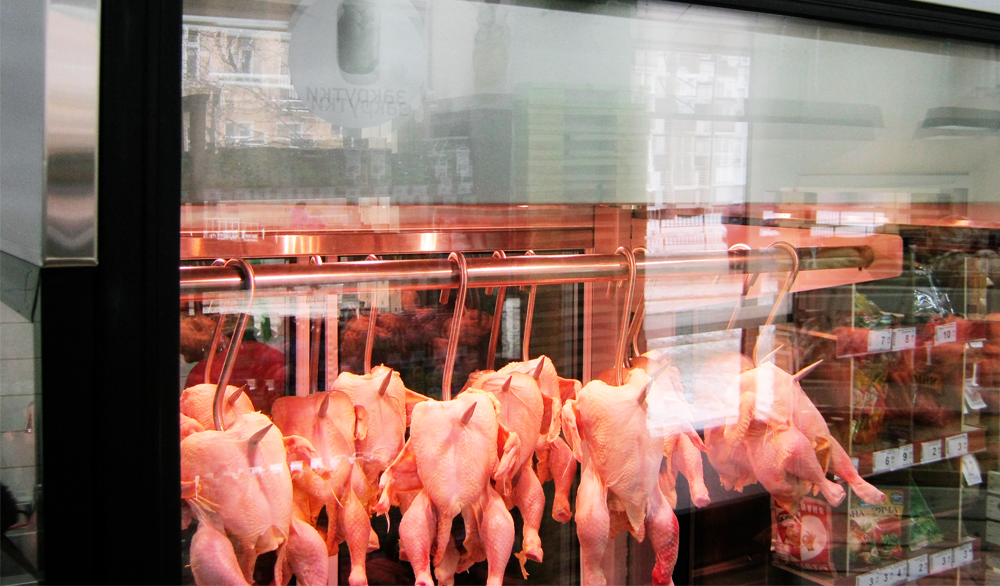

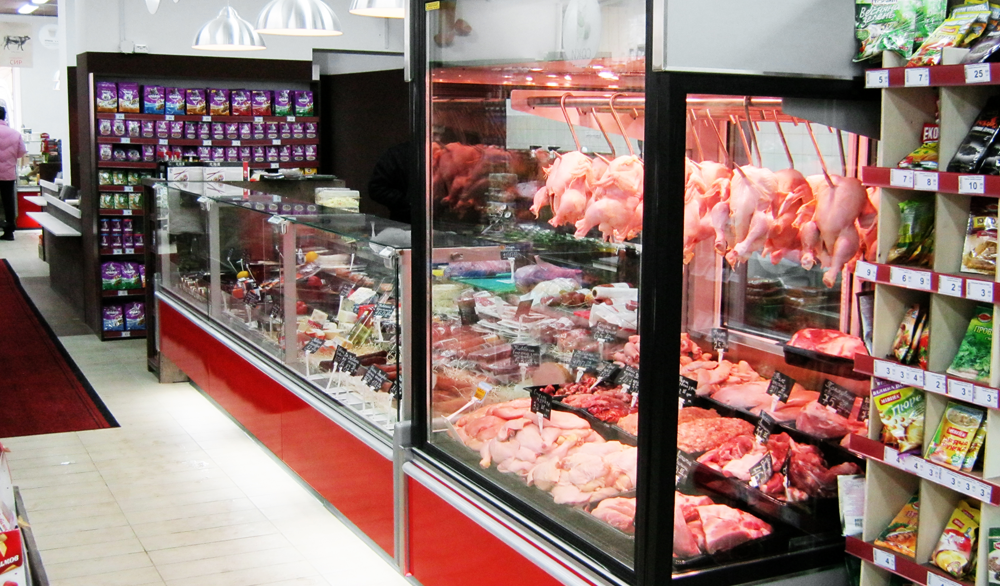

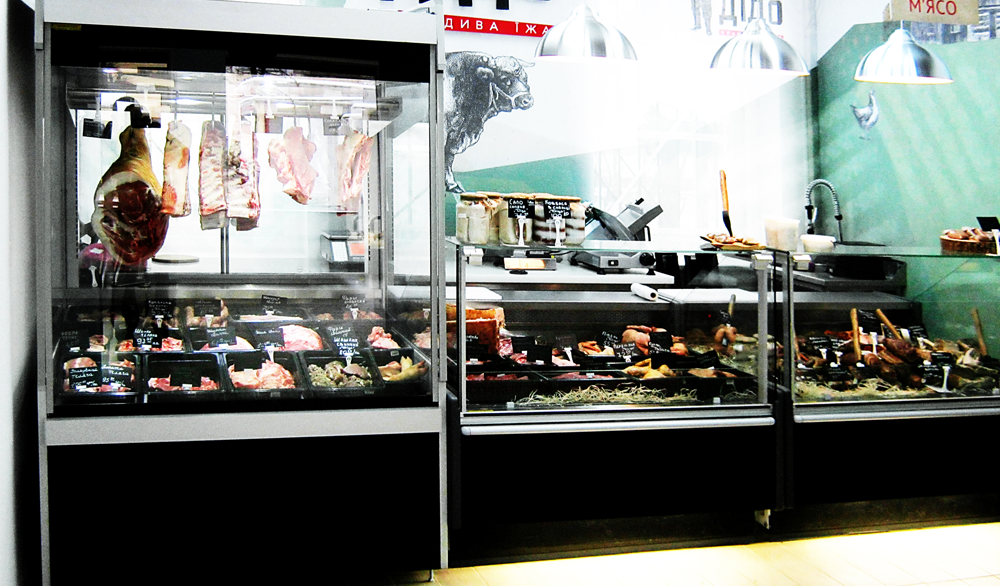

Verona Cube meat is designed to sell cooled meat both in the traditional way by laying on trays, and for hanging whole pieces of meat and even carcasses (pork, beef, chicken) on hooks. The size of the hooks and their number in the set depends on the size of the carcasses. Showcases can be with swinging doors and compartment doors
| Technical data | VERONA CUBE meat | |
|---|---|---|

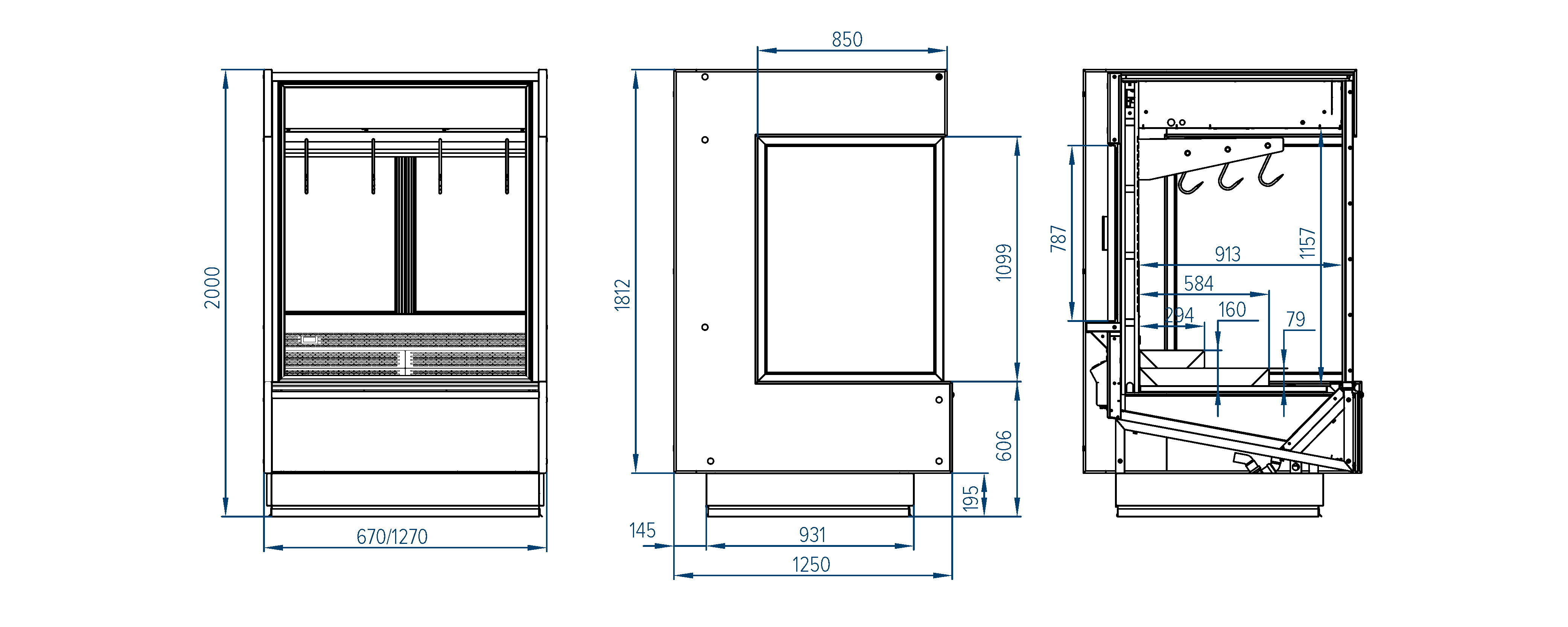

| Length L, мм, with sidewalls | 670 | 1270 |
| Width, mm | 1250 | |
| Height, mm | 2000 | |
| Ambient temperature, °С | от +12 до +25 | |
| Temperature in effective volume, °С | от -1 до +5 | |
| AC mains voltage, V | 220±22 | |
| Maximum power consumption (without defrost heating element), W | 1170 | 3020 |
| Daily electric energy consumption at ambient air temperature of 22°С (without defrost heating element), kWh | 1,0 | 1,16 |
| Refrigerating capacity*, W, not more than | 1200 | 2000 |
| Display area, m2 | 0,83 | 1,1 |
| Useful volume**, dm3 | 635 | 1270 |
| Mass of uniformly loaded product, kg, not more than | 30 | 60 |
| Cooling type | dynamic | |
| Mass, kg | 180 | 300 |
| Connecting dimensions, mm, – diameter of drainage pipe – diameter of liquid pipe – suction pipe diameter | 40 12 18 | |
| *- at boiling temperature -10 ºС; **- Useful volume – the volume limited by the dimensions of the shelves | ||
