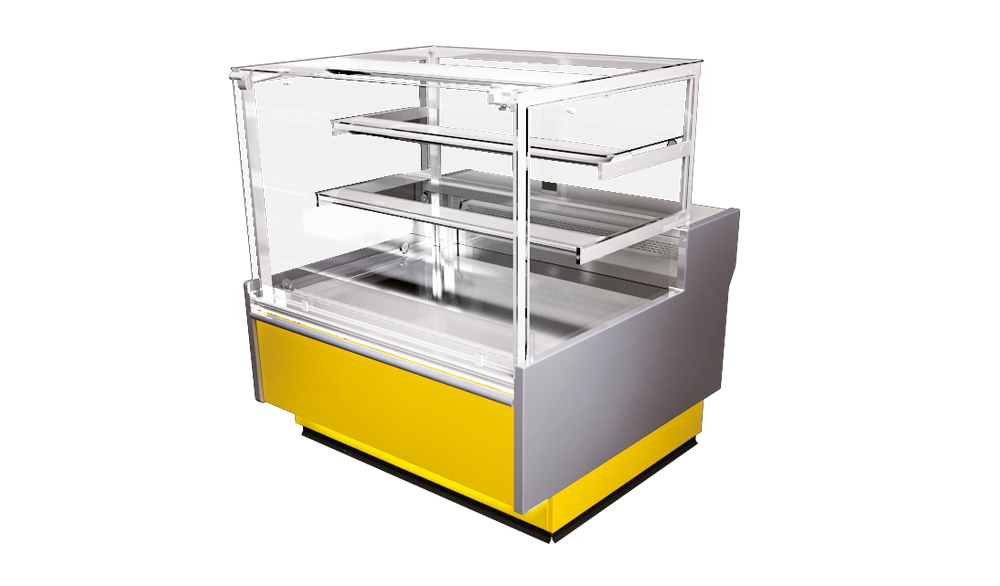

Verona Cube C – confectionary

VERONA CUBE C is made in the same style with other showcases of the VERONA CUBE model range and is intended for the display and storage of confectionery products. The showcase is equipped with sliding trays with a silent and smooth running system, two additional glass shelves (high) and one with LED lighting (low) in the working volume. Convenience of display of goods is ensured by raising the front glass and holding it with gas lifts. Double dynamic cooling circuit prevents the quick airing of the goods.

Warranty 2 years

Technical data

Technical dataVERONA CUBE Confectionary
Length L, мм, with sidewalls9801280188024803680
Width, mm1260
Height, mm1400/1200*
Temperature in effective volume, °С+2. .+8
Ambient temperature, °С+12…+25
Voltage, V220±22
Maximum power demand  (without defrost heating element), kW0,17/0,15*0,24/0,2*0,34/0,3*0,45/0,4*0,67/0,6*
Power of defrost heating element), kW0,40,60,91,2
Daily electric energy consumption at ambient air temperature of 22°С, kW2,55/4,5*3,43/6*5,1/9*6,5/12,3*9,58/17,8*
Refrigerating capacity**, W, not more than40050075010001500
Display area, m21,35/1,1*1,8/1,46*2,7/2,2*3,6/2,9*5,5/4,4*
Mass of uniformly loaded product, kg, not more than456090120180
Cooling typedynamic
Mass, kg130/95*180/130*275/200*360/260*540/390*
Connecting dimensions, mm,
– diameter of drainage pipe
– diameter of liquid pipe
– suction pipe diameter		40
10
16
*-parameters for low confectionary showcase
**- at temperature in useful volume from 0 to 2 ºС,
**- at boiling temperature  -10  ºС.

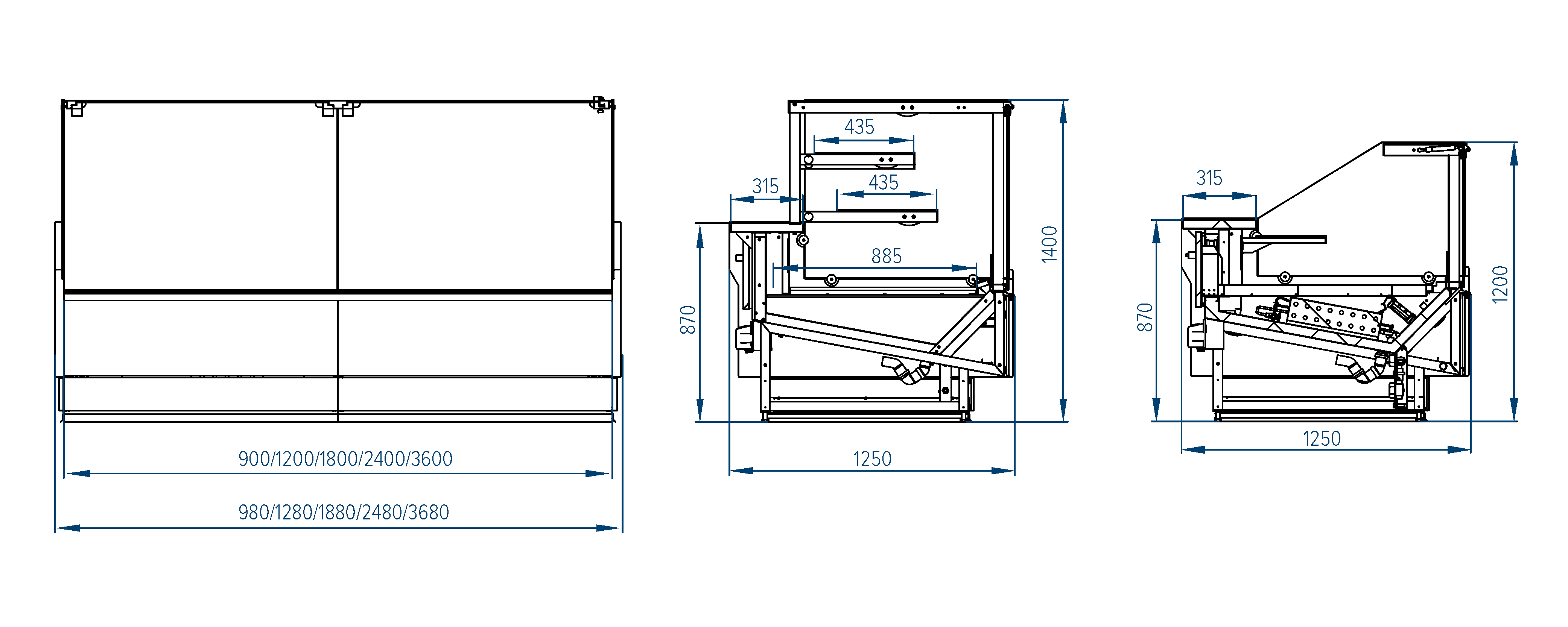

Schema
