Refrigerated display case Savona Cube “fish on ice”

Refrigerated display case Savona Cube is made in the same style with other showcases of the Savona Cube model range. Straight lines emphasize the simplicity of the forms and the versatility of the equipment design. The display cases are used to show fresh fish and seafood on ice. This makes it possible to preserve the freshness of products for a long time and take care of their attractive appearance. Perforated trays provide drainage of melt water. Drain the melt water is done through a special fitting.

Display cases Savona Cube “fish on ice” are offered with cooling and without it.

Technical data

Technical dataSavona Cube "fish on ice"
Length, mm, with sidewalls1037135019752600
Width, mm1295
Height, mm1009
Ambient temperature, °Сот +12 до +25
Temperature in effective volume, °Сот -3 до +0
AC mains voltage, V220±22
Effective volume, litres260335570650
Display area, m20,70,91,561,78
Mass of uniformly loaded product, kg455494110
Cooling capacity, W5006009001100
Max power consumption, kW0,530,731,05
Daily electric energy consumption at ambient air temperature of +22°С, kWh2,43,43,54,2
Mass, kg140175265300
Cooling typestatic

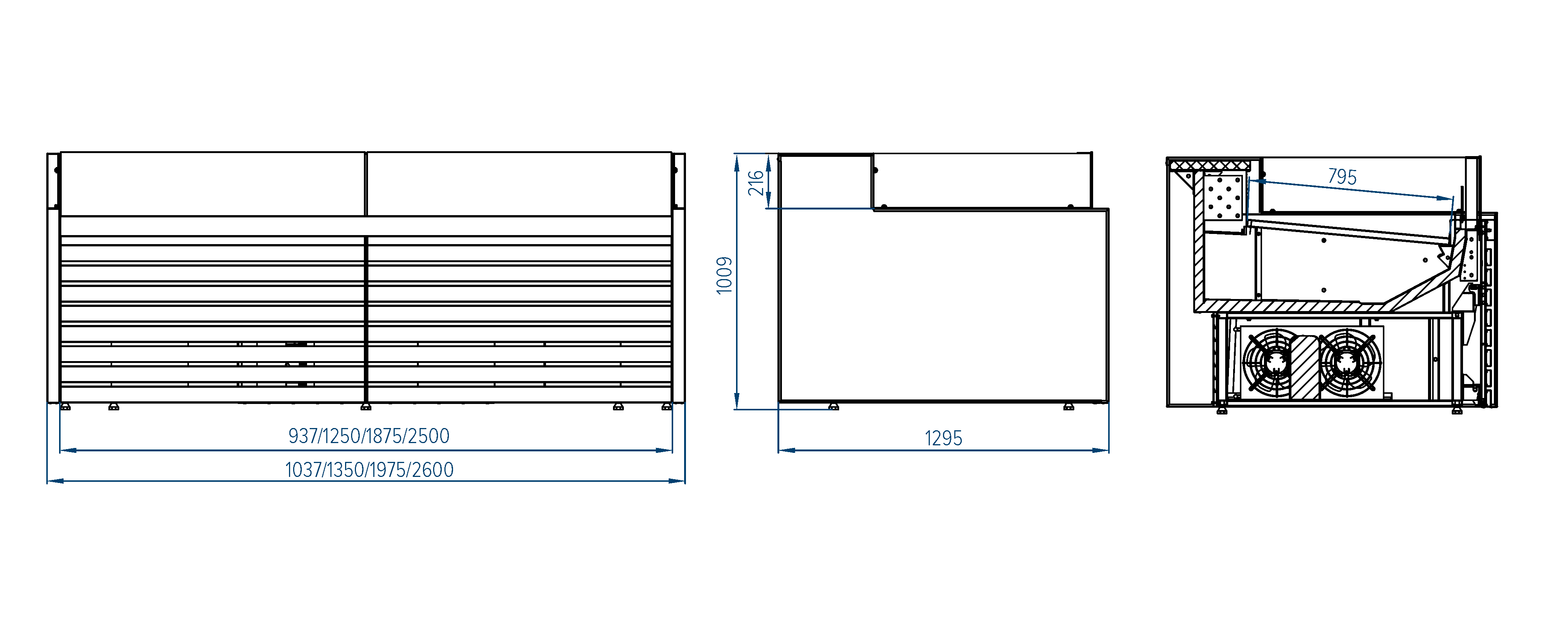

Schema

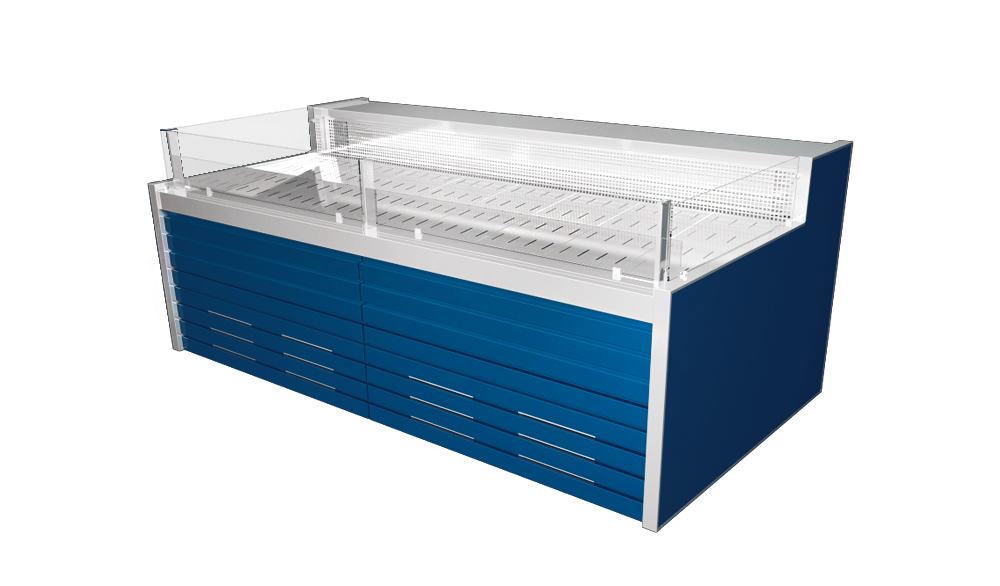

Refrigerated display case  Savona Cube fish on ice

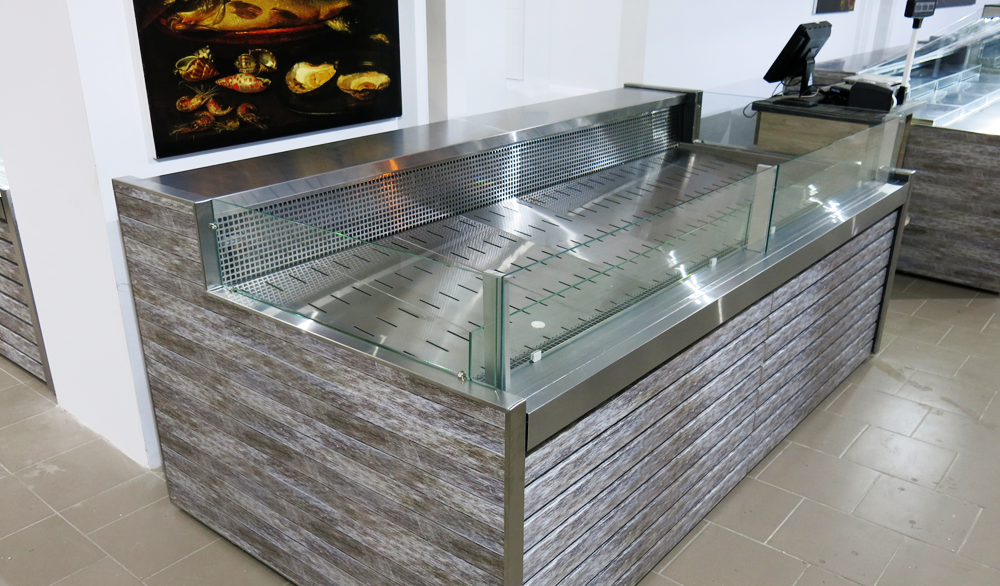

Refrigerated display case Savona Cube fish on ice
