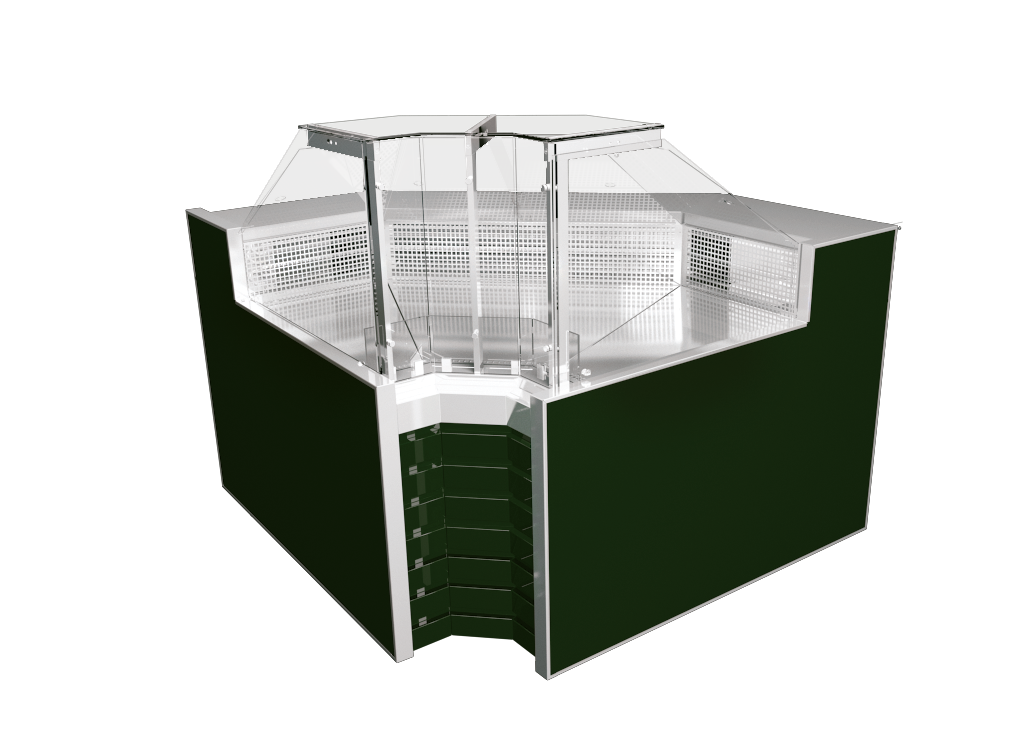

Refrigerated display case Savona Cube closed angle

Refrigerated display case SAVONA CUBE closed angle

The presence in the model range of external corner elements helps to create a unique design of the line of SAVONA CUBE display cases and the original interior of the store, and also allows for the most efficient use of retail space. They are equipped with their own dynamic cooling system and boxes for cooling inventory. The front panel can be made with glasses lifted on microlifts, or it may be solid. Corner display cases can be used as separate modules with the installation of standard sidewalls

Technical data

Technical dataSAVONA CUBE UV
Width, mm1580
Height, mm1360
Effective volume, l910
Display are, m22,7
Mass of uniformly loaded product, kg30
Temperature in effective volume, °Сот +2 до +4
Ambient temperature, °С+12…+25
Cooling capacity, W700
Max power consumption, kW1,3
Daily electric energy consumption at ambient air temperature of +22°С, kWh9,34
Mass, kg180
Cooling typedynamic

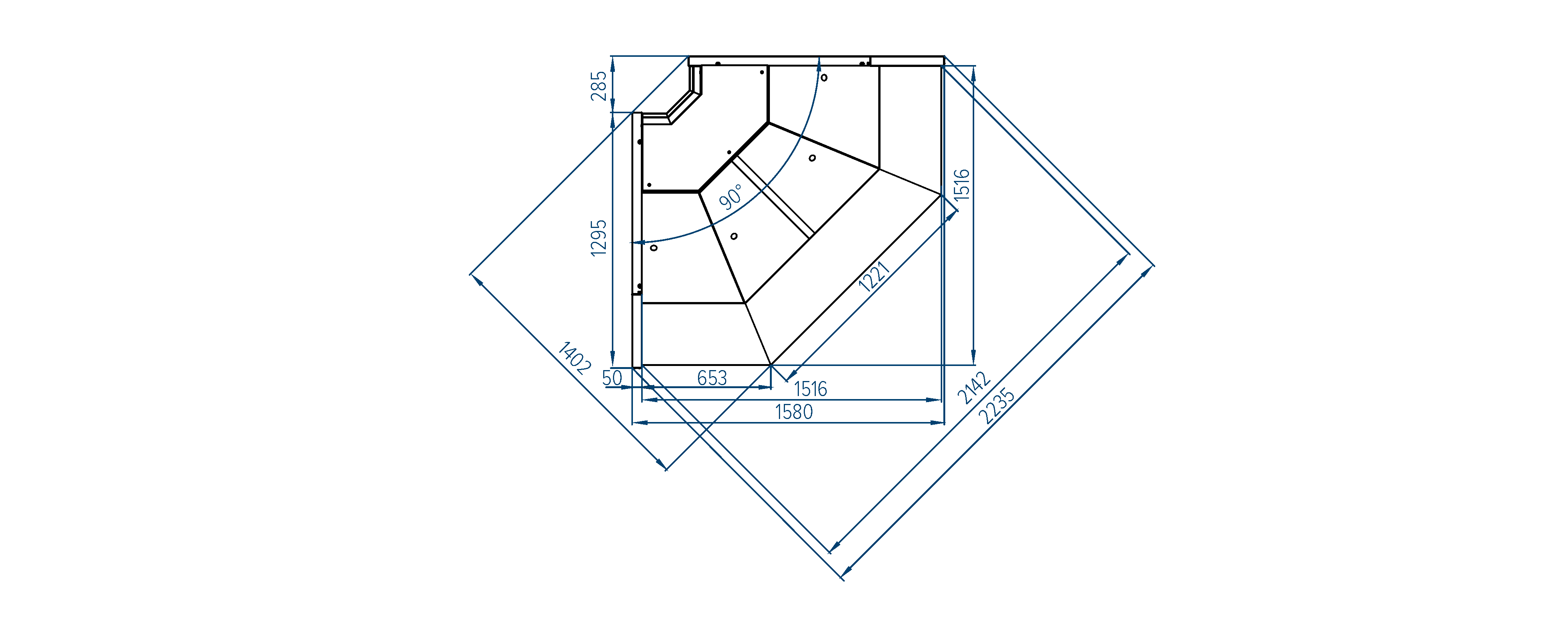

Schema
