Refrigerated display case Savona Cube open angle

Refrigerated display case Savona Cube open angle

The presence in the model range of external corner elements helps to create a unique design of the line of SAVONA CUBE display cases and the original interior of the store, and also allows for the most efficient use of retail space. They are equipped with their own dynamic cooling system. The front panel can be made with glasses lifted on microlifts, or it may be solid. Corner display cases can be used as separate modules with the installation of standard sidewalls

Technical data

Technical dataSAVONA CUBE UN
Width, mm1480
Height, mm1360
Effective volume, l135
Display area, м21,1
Mass of uniformly loaded product, kg60
Temperature in effective volume, °Сот +2 до +4
Ambient temperature, °С+12…+25
Cooling capacity, kW0,6
Max power consumption, kW1,34
Daily electric energy consumption at ambient air temperature of +22°С, kWh11,73
Mass, kg250
Cooling typedynamic

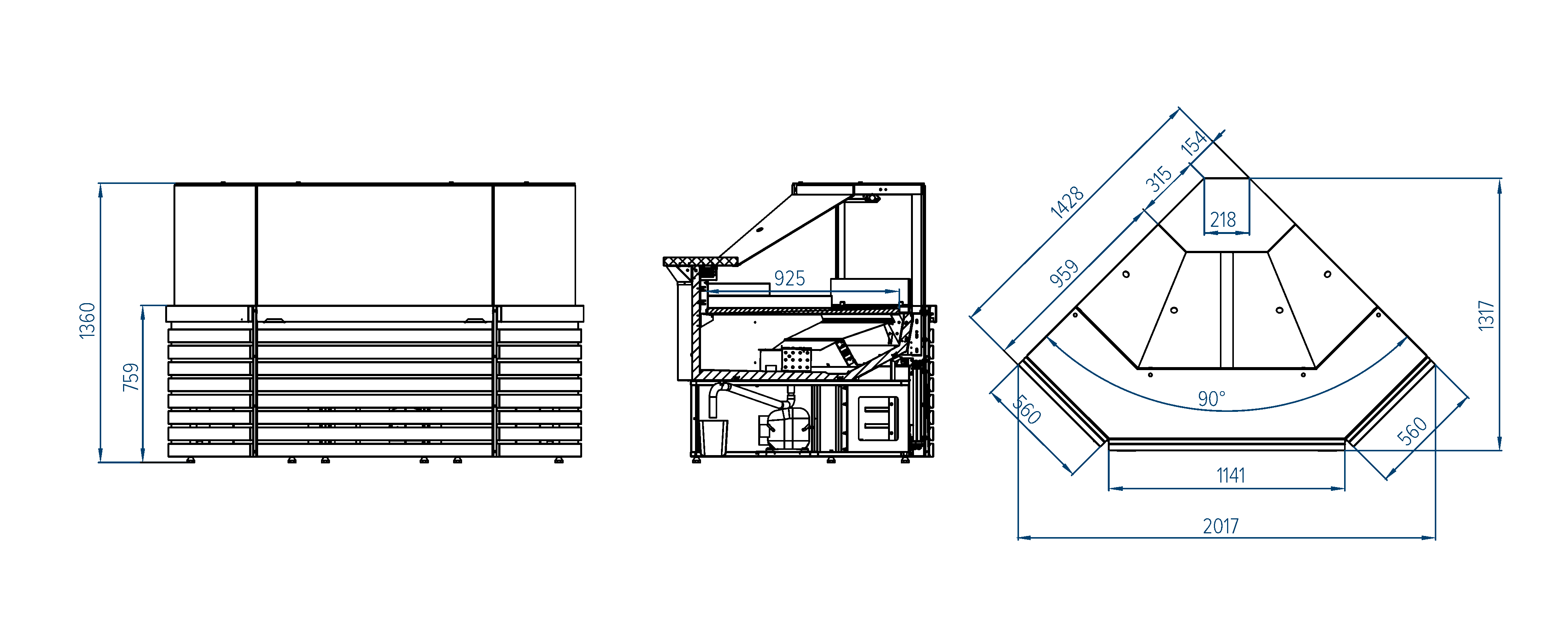

Schema
