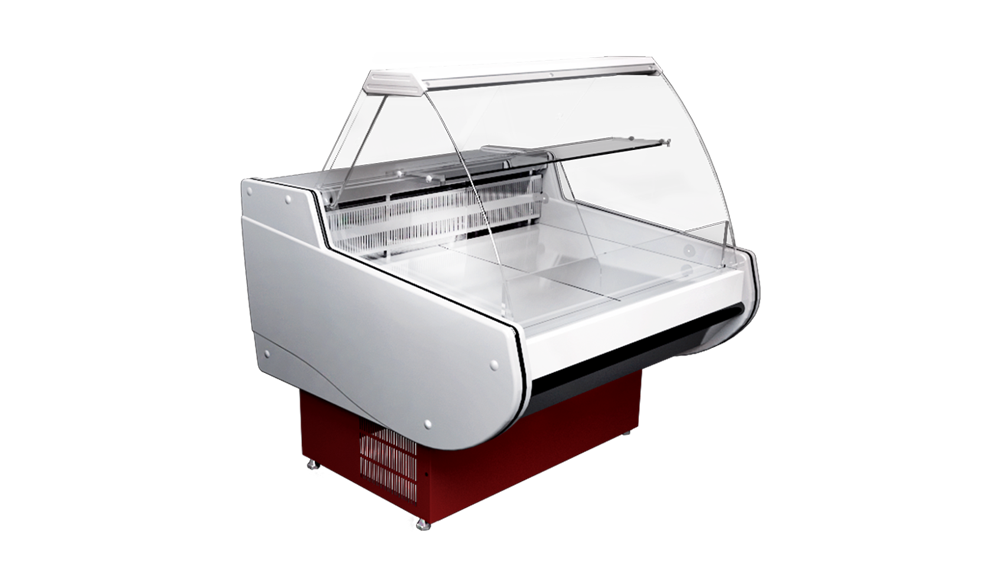

Refrigerated display case Siena

Refrigerated display cases SIENA

Refrigerated display cases SIENA are widely used in small and medium-sized stores with the sales through the counter to attract the attention of customers to the foods offered. Large selection of options: with a curved or flat panoramic glass, with a depth of 0.9 and 1.1 meters of the display case, the possibility of choosing the color of the base of the display case – all these options allow you to choose a display case that fits into your store as efficiently as possible.

Competitive advantages

  • the medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • uninterrupted operation at ambient air temperature up to +32 ° С

Options

  • all modifications are made with bent or flat front glass;
  • the depth of refrigerated display cases – 900 mm and 1100 mm;
  • showcases are set in a line of any length;
  • choice of color of the basis;
  • it is possible to manufacture display cases with a temperature range from -5°C to +5°C.

Technical data

Technical dataSIENA
Length, mm10901290159017902090
Width, mm935/1135*
Height, mm1260
Ambient temperature, °С+12…+32
Temperature in effective volume, °С0…+8
Supply voltage, V220±22
Max power consumption, W550610710810
Power of heating elements’ defrost, W400500700
Daily electric energy consumption at ambient air temperature of +22°С, kWh7,07,28,810
Display area, m20,55/0,7*0,68/1,1*0,8/1,3*0,9/1,46*1,05/1,72*
Mass of uniformly loaded product, kg27/39*35/55*45/60*50/80*60/100*
Cooling typestatic
Mass, kg107/125*115/132*130/145*160/172*180/198*
* – parameter for display case with width 1135mm

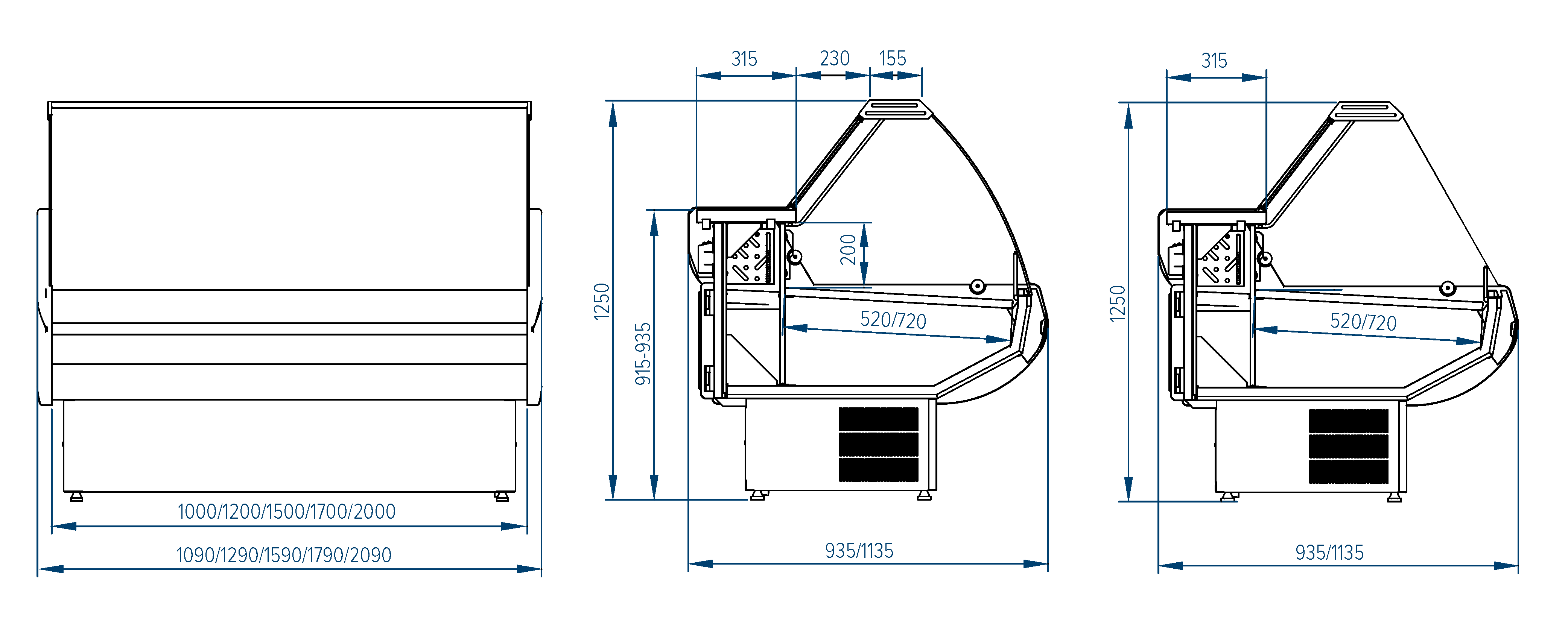

Schema

Refrigerated display cases Siena
Refrigerated display cases Siena
