Refrigerated display case Sorrento closed angle

Refrigerated display case “Sorrento closed angle”

Modern design, moderrn components, ergonomics – all these features will allow Sorrento display cases to decorate the sales area of any store.
It is used to create a line of Sorrento display cases of various configurations. It can be used as a separate showcase with the installation of standard sidewalls.

Competitive advantages

  • The medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • uninterrupted operation at ambient air temperature up to + 32 ° (for static type of cooling)

Standard equipment

  • stainless steel demonstration trays and seller’s tabletop is a protection against corrosion;
  • bent tempered panoramic glass is risen upwards and hold with the help of gas lifts;
  • energy-saving LED backlight of the internal volume;
  • the body is filled with polyurethane foam under high pressure, which minimizes the loss of cold from the display case;
  • galvanized steel body parts with polymer coating, welding of parts is not applicable;
  • capacious cooled box;
  • electronic control panel with function of an automatic defrosting of the evaporator.

Options

  • additional temperature indicator in the working volume;
  • the ability to choose the color of the base;
  • it is possible to manufacture display cases with a temperature range from -5°C to +5°C;
  • used to create a line of Sorrento display cases of various configurations;
  • dispaly cases with both static and dynamic cooling types;
  • we produce models with built-in refrigeration unit and for remote cold supply

Technical data

Technical dataSorrento-UV
Width, mm1478
Height, mm1250
Ambient temperature, °С+12…+32+12…+25
Temperature in effective volume, °С0…+8+2…+8
Supply voltage, V220±22
Max power consumption, W750110
Power of heating elements’ defrost, W700
Daily electric energy consumption at ambient air temperature of +22°С, kWh7,51,98
Display area, m21,11,3
Mass of uniformly loaded product, kg5570
Cooling typestaticdynamic
Mass, kg220

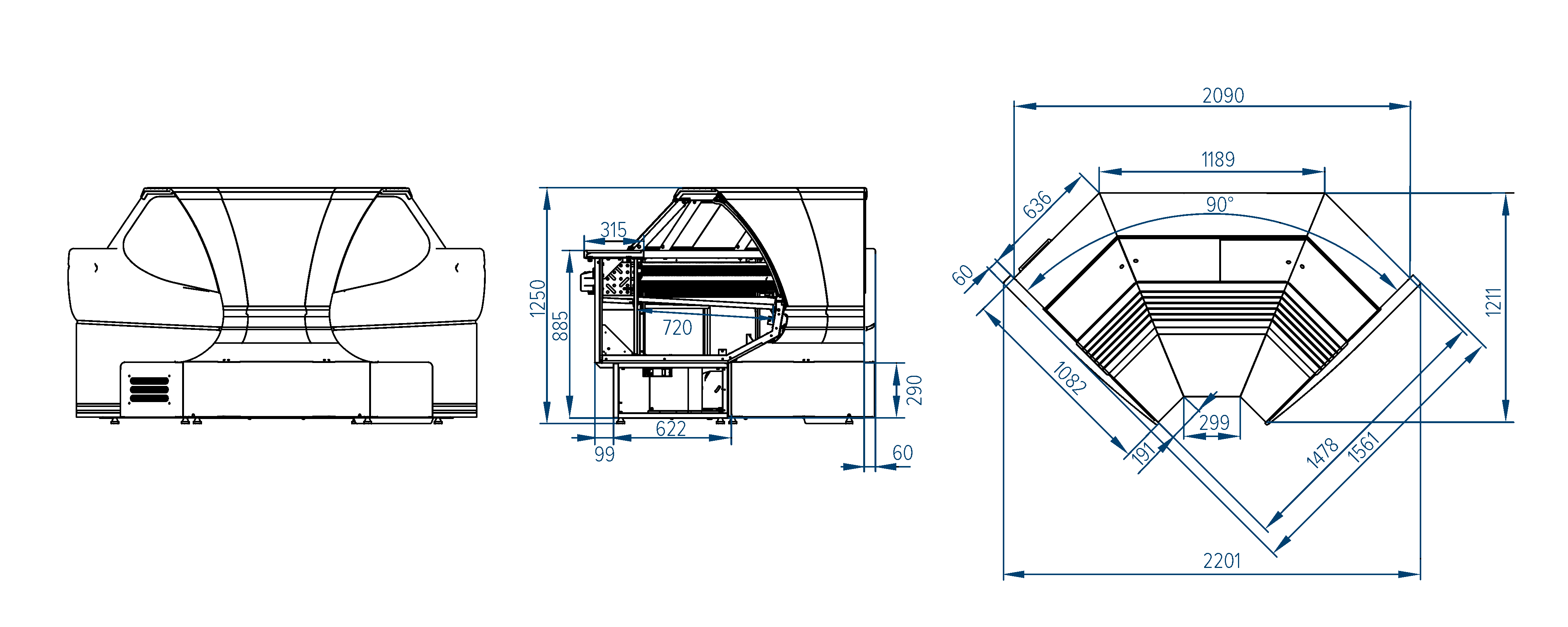

Schema

Refrigerated display case Sorrento UV
Refrigerated display case Sorrento UV
