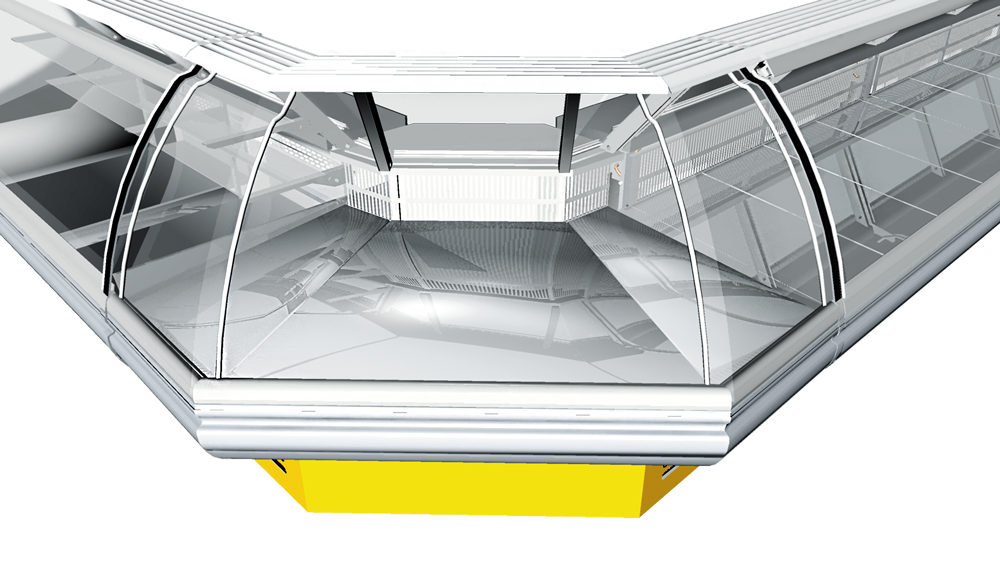

Refrigerated display case Sorento open angle

Refrigerated showcase “Sorento open angle”

Modern design, modern components, ergonomics – all these features will allow Sorento display cases to decorate the sales area of any store.
It is used to create a line of Sorento display cases of various configurations. It can be used as a separate showcase with the installation of standard sidewalls.

Competitive advantages

  • the medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • uninterrupted operation at ambient air temperature up to + 25 ° (display cases with dynamic type of cooling).

Standard equipment

  • stainless steel demonstration trays and seller’s tabletop is a protection against corrosion;
  • bent tempered panoramic glass is risen upwards and hold with the help of gas lifts;
  • energy-saving LED backlight of the internal volume;
  • forced air circulation in the volume with a fan is for uniform cooling of the product;
  • the casing is filled with polyurethane foam under high pressure, which minimizes the loss of cold;
  • body parts are made of galvanized steel with polymer coating, welding of parts is not applicable;
  • the display case is equipped with the electronic control panel with function of an automatic defrosting of the evaporator.

Options

  • additional temperature indicator in the working volume;
  • the ability to choose the color of the base.
  • used to create a line of Sorrento display cases of various configurations;
  • we produce models with built-in refrigeration unit and for remote cold supply

Technical data

Technical dataSorrento-UN
Width, mm1366
Height, mm1250
Ambient temperature, °С+12…+25
Temperature in effective volume, °С+2…+8
Supply voltage, V220±22
Max power consumption, W300
Daily electric energy consumption at ambient air temperature of +22 °С, kWh8,0
Display area, m21,1
Mass of uniformly loaded product, kg55
Cooling typedynamic
Mass, kg220

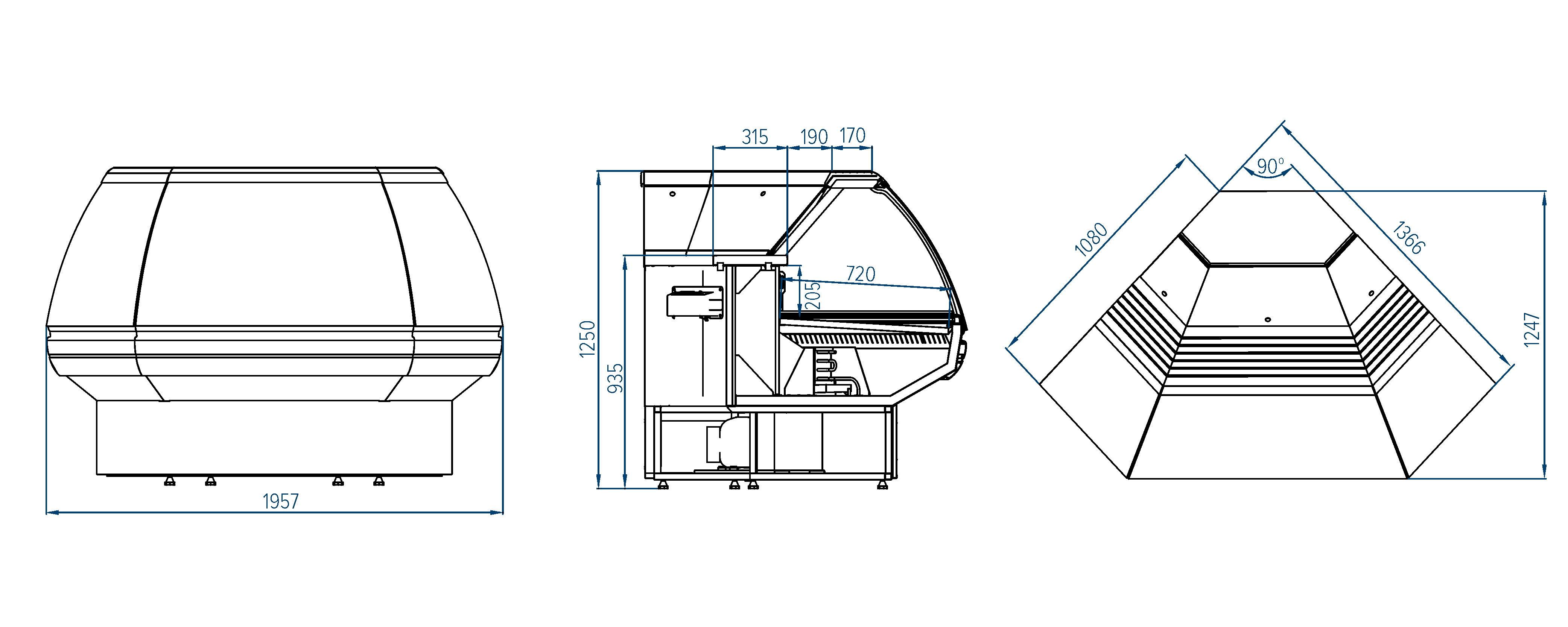

Schema

Refrigerated display case Sorrento UN
Refrigerated display case Sorrento UN
