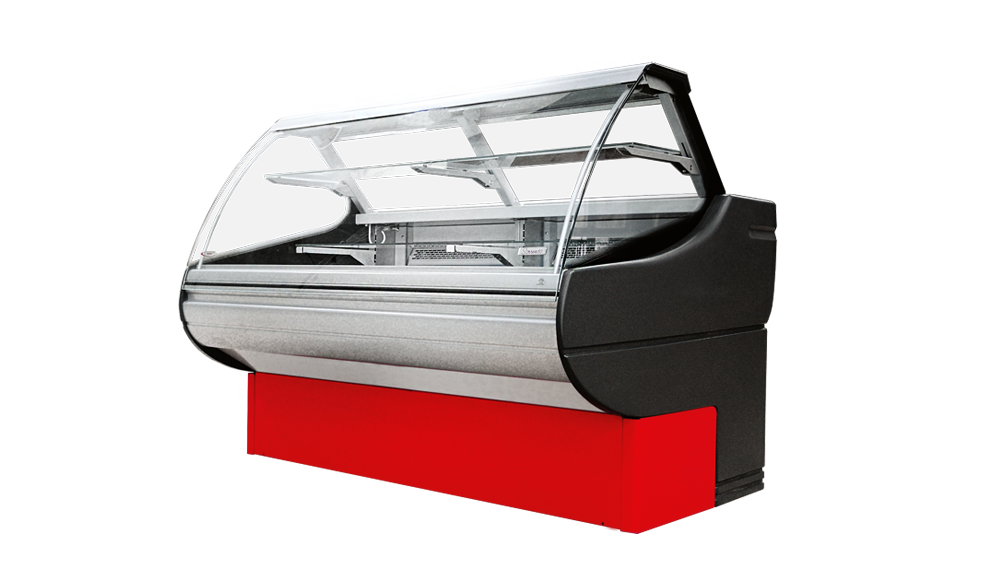

Confectionery refrigerated display case Sorrento

Confectionery refrigerated display case Sorrento

The confectionery refrigerated display case Sorrento-K is intended for storage and demonstration of confectionery products. Possessing all the advantages of the model range Sorrento, in this case the technical solutions that enhance its advantages as a confectionery showcase are applied: dynamic cooling of the useful volume, 20% increase in the diplay space of the low pull-out row,drawers with a quiet and smooth running system, two additional glass shelves with adjustable installation height, additional fluorescent backlight.

Standard set

  • electronic control panel;
  • automatic defrost of the evaporator;
  • dynamic cooling system of useful volume;
  • two glass shelves in the display volume;
  • side panels made of high-impact ABS plastic;
  • the panels and the body are filled with polyurethane foam;
  • galvanized housing with a color polymeric coating;
  • stainless steel display area and seller’s worktop;
  • front tempered curved glass, opening bottom-up;
  • fixing gas microlifts of the front glass;
  • heating of front glass;
  • fluorescent lighting;
  • energy-saving LED backlight for internal volume;
  • possibility of choosing the color of the bottom of the display case and side panels;
  • possibility to install showcases in a line;
  • connection to the cooling center.

Technical data

Технические характеристикиSORRENTO-K
Length, mm132016201820
Width, mm1120
Height, mm1260
Ambient temperature, °С+12…+25
Temperature in effective volume, °С+2…+8
Supply voltage, V220±22
Power consumption, W480610
Daily electric energy consumption at ambient air temperature of +22°С, kWh7,910,2
Display area, m21,41,772,06
Mass of the put foods, kg243034
Type of coolingdynamic
Weight, kg165180200

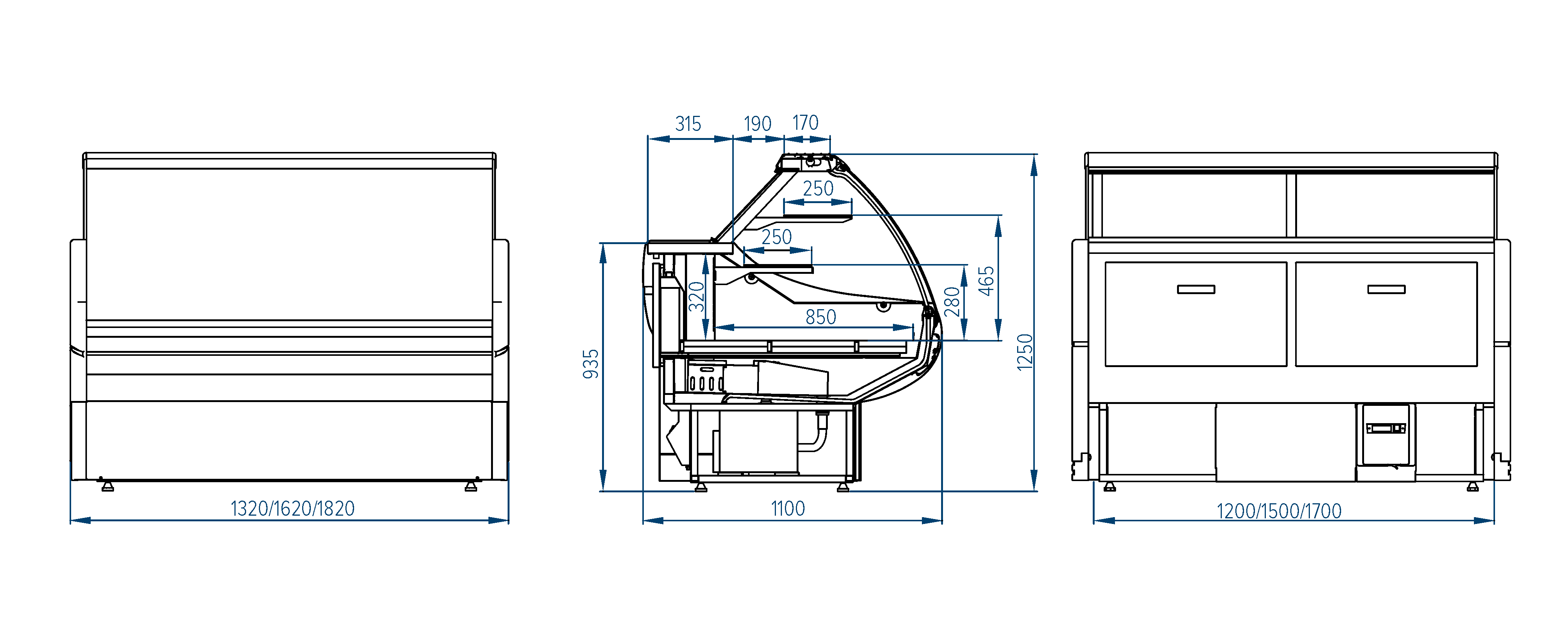

Schema

Confectionery refrigerated diplay case Sorrento-K
Confectionery refrigerated diplay case Sorrento-K
