VERONA CUBE “fish on ice”

Verona Cube “fish on ice”

Refrigerated display case VERONA CUBE “fish on ice” is made in the same style as othe display cases of the model range VERONA CUBE. It is used to demonstrate fresh fish and seafood on ice. This makes it possible to preserve the freshness of products for a long time and take care of their attractive appearance. Perforated trays provide drainage of melt water. Drain the melt water through a special fitting.

Refrigerated display cases VERONA CUBE “fish on ice” are offered both with cooling and without.

Technical data

Technical data	Verona Cube “fish on ice”
Length, мм, with sidewalls	1280	1880
Width, mm	1260
Height, mm	1100
Ambient temperature, °С	от +12 до + 25
Shelf surface temperature, °С	от -3 до 0
AC mains voltage, V	220±22
Maximum power, kW	0,48	0,7
Power of defrost heating element, kW	0,4	0,6
Useful display area*, m²	1,0	1,5
Daily electric energy consumption at ambient air temperature of 22^оС (without defrost heating element), kWh, not more than	1,6	2,3
Refrigerating capacity*, W, not more than	1300	1500
Mass of uniformly loaded product, kg, not more than	60	90
Mass, kg	140	170
Cooling type	dynamic
Connecting dimensions, mm diameter of drainage pipe diameter of liquid pipe suction pipe diameter	40 10 16
*- at boiling temperature -10 °С

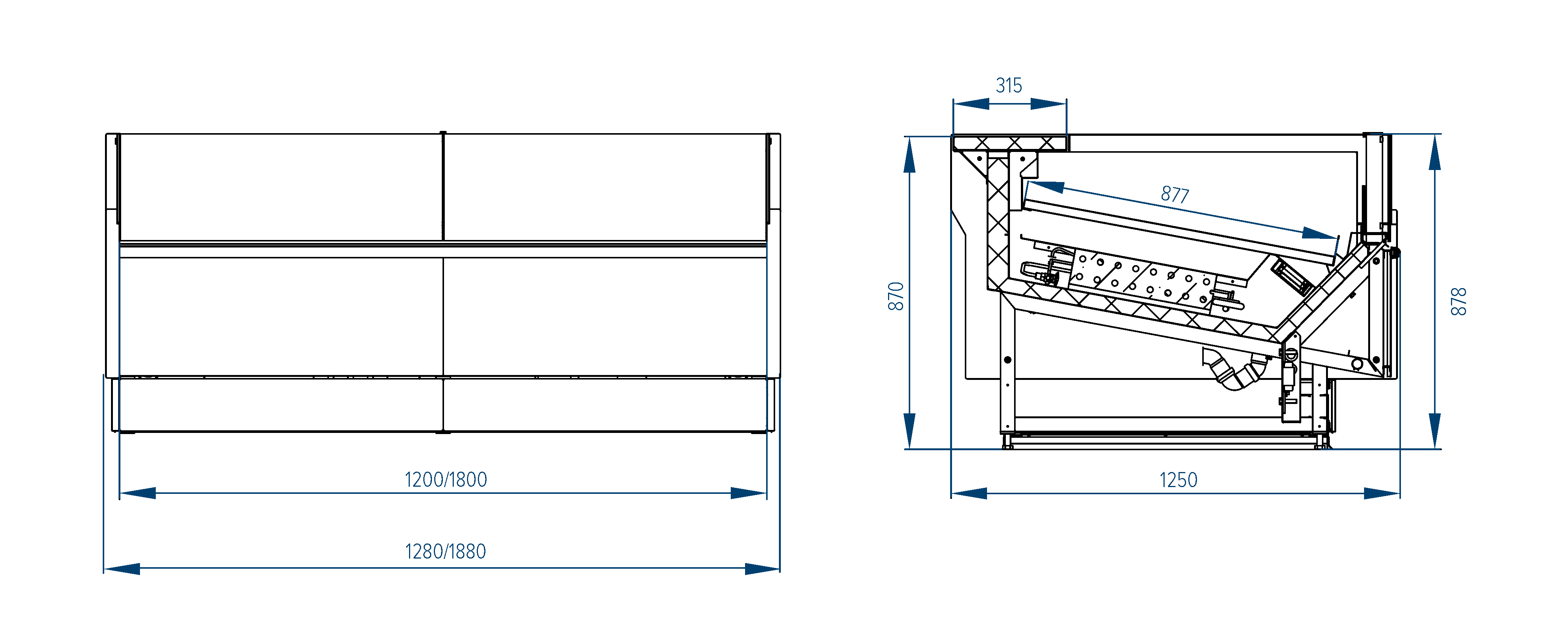

Schema

Refrigerated display case VERONA CUBE “fish on ice”
