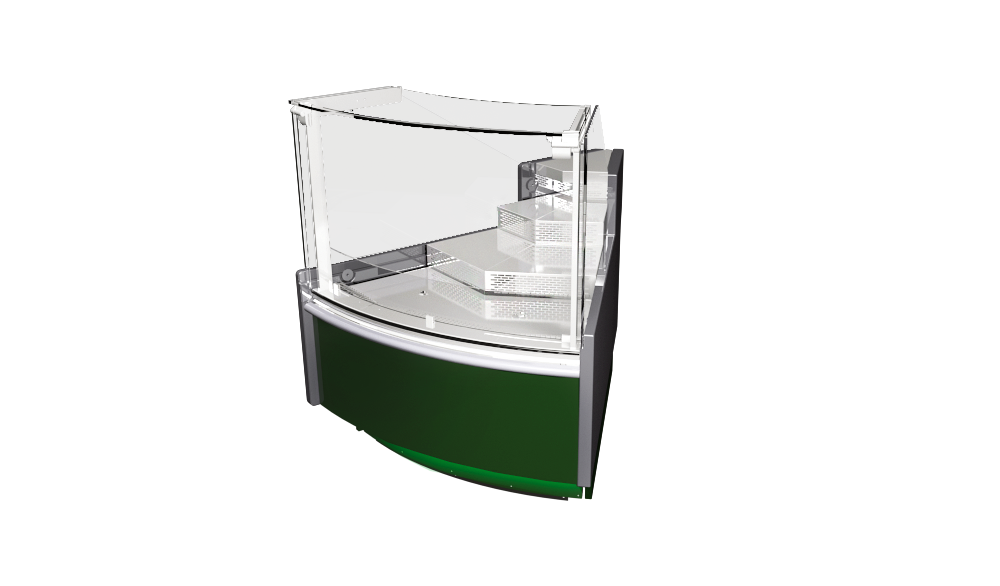

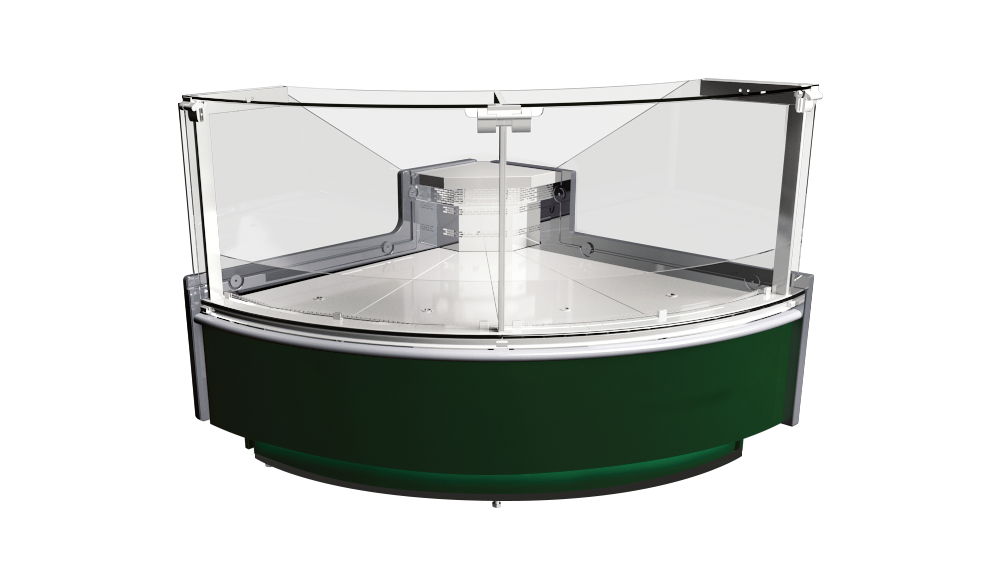

External corner elements of the Verona Cube showcases allow you to line up showcases of any configuration and effectively use retail space.Corner modules 45° increase the efficiency of the use of retail space in small shops and supermarkets in cases where the lining up the showcases with an angle 90° is ineffective.
| Параметры | VERONA CUBE рыба на льду | |
|---|---|---|
| Length (with sidewalls), mm | 1280 | 1880 |
| Width, mm | 1260 | |
| Height, mm | 1100 | |
| Ambient temperature,°C | от +12 до + 25 | |
| Temperature in effective volume, °C | от -3 до 0 | |
| AC mains voltage, V | 220±22 | |
| Maximum power demand, kW | 0,48 | 0,7 |
| Power of defrost heating element, kW | 0,4 | 0,6 |
| Display area, m2 | 1,0 | 1,5 |
| Daily electric energy consumption at ambient air temperature of 22 ºС (without defrost heating element), kWh | 1,6 | 2,3 |
| Refrigerating capacity*, W | 1300 | 1500 |
| Mass of uniformly loaded product, kg | 60 | 90 |
| Mass. kg | 140 | 170 |
| Cooling type | dynamic | |
| Connecting dimensions, mm, no more than – diameter of drainage pipe – diameter of liquid pipe – suction pipe diameter | 40 10 16 | |
| *- at the boiling temperature -10°С | ||
