Refrigerated display case Verona Cube

Refrigerated display case Verona Cube

Display cases Verona Cube for supermarkets and hypermarkets combine the seeming simplicity, rigor of right angles and lines with high technology. Straight front glass does not refract passing light, which improves the visibility of the layout. The ability to lift the front glass while holding it with microlifts in the raised position makes the display of goods for the seller convenient. Horizontal tempered glass shelf simplifies the work of the seller with the customer “through the counter.”Double contour of dynamic cooling of useful volume prevents rapid airing of goods. The case, filled with polyurethane foam under high pressure, a highly efficient evaporator of increased heat exchange area, an additional cold-air glass bumper in a useful volume, allow the Verona Cube model range to efficiently maintain the specified storage temperature with minimal energy consumption.It is possible to manufacture showcases “self” (low front glass), “pizza” or with a temperature range from -5 to + 5 ºС.

Warranty 2 years

Technical data

Technical dataVERONA CUBE
Length L, мм, with sidewalls9801280188024803680
Width, mm1250
Height, mm1200
Ambient temperature, °Сот +12 до +25
Temperature in effective volume, °Сот +2 до +8
AC mains voltage, V220 ± 22
Maximum power demand  (without defrost heating element), W7080106137200
Power of defrost heating element*, W4006009001200
Daily electric energy consumption at ambient air temperature of 22 °С (without defrost heating element), kWh, not more than1,01,161,672,173,2
Refrigerating capacity**, W60070090012001800
Display area, m20,831,11,652,23,3
Useful volume***, dm3135180270360540
Mass of uniformly loaded product, kg456090120180
Cooling typedynamic
Mass, kg115130200260390
Connecting dimensions, mm, no more than
diameter of drainage pipe
diameter of liquid pipe
suction pipe diameter
40/50
10
16
* at temperature in useful volume from  0 to +2°С;
** at boiling temperature -35°С;
*** Useful volume – the volume of glazed compartment till the line of loading

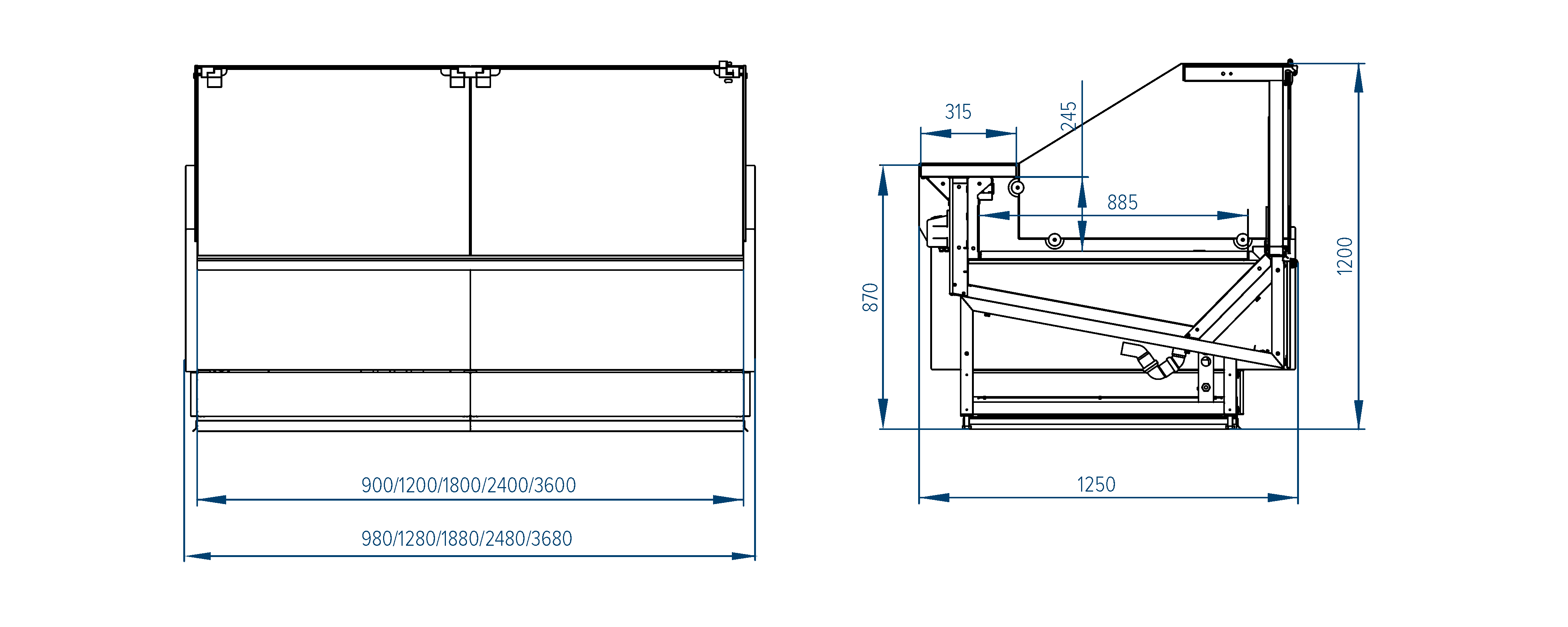

Schema
