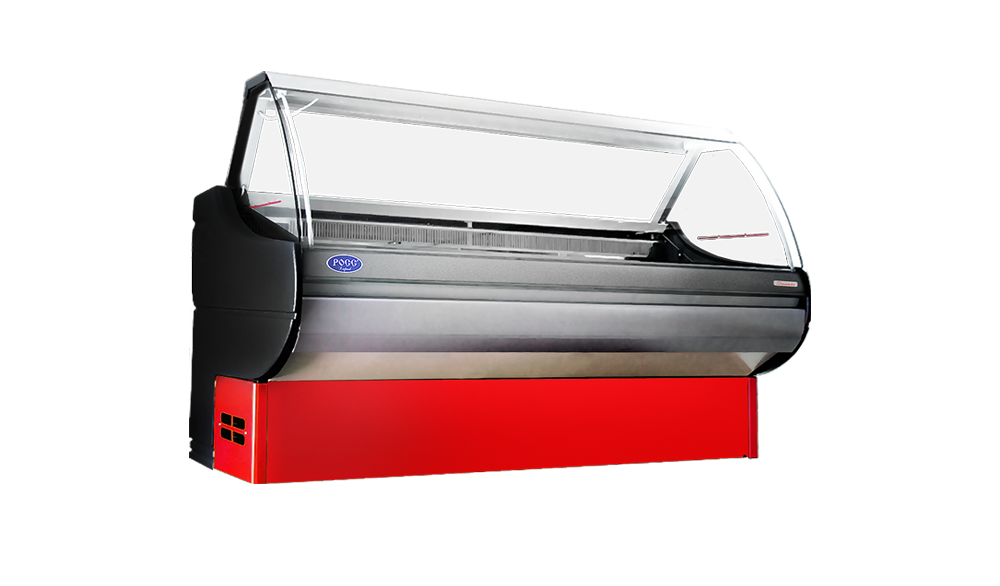

Refrigerated display case Sorrento

Refrigerated display cases Sorrento

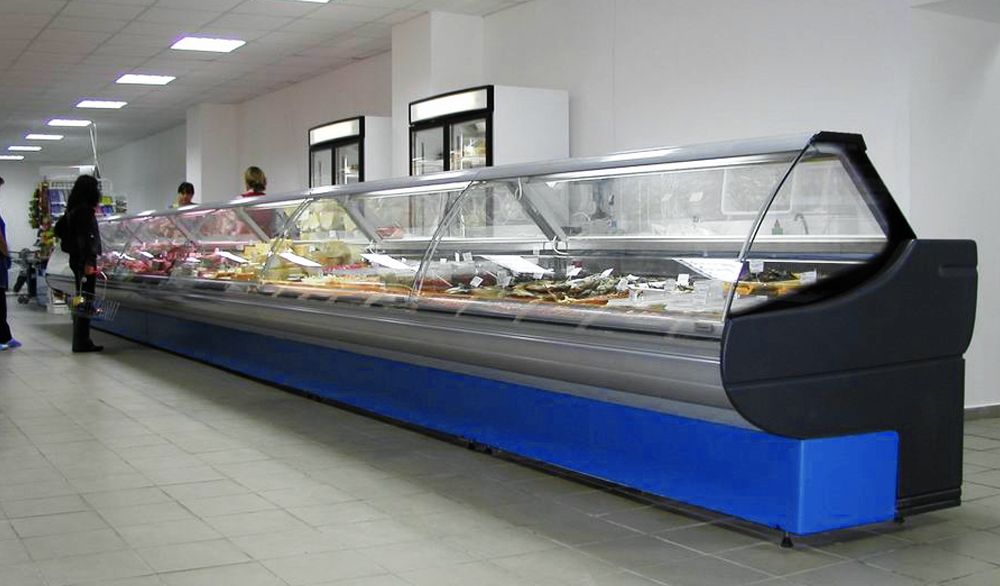

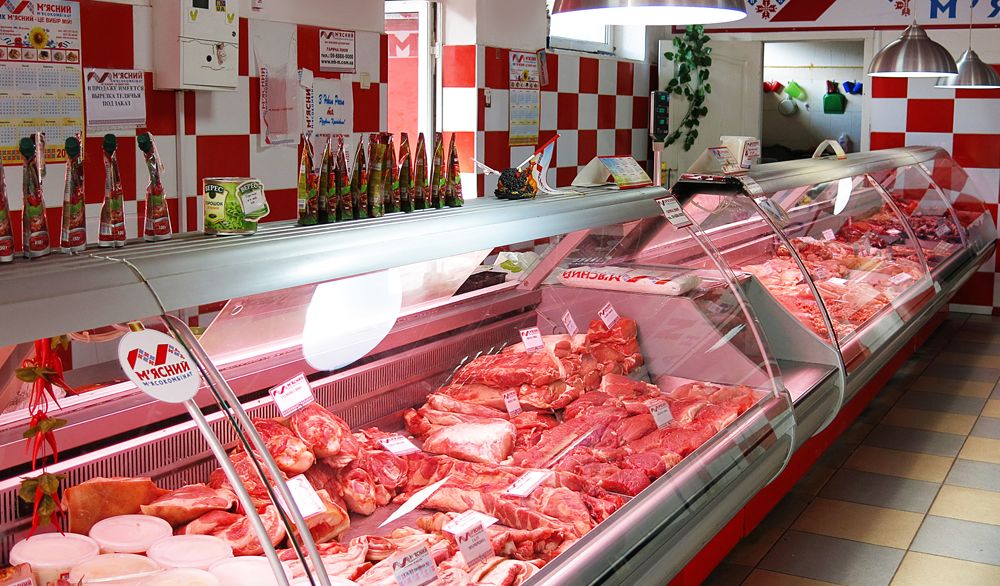

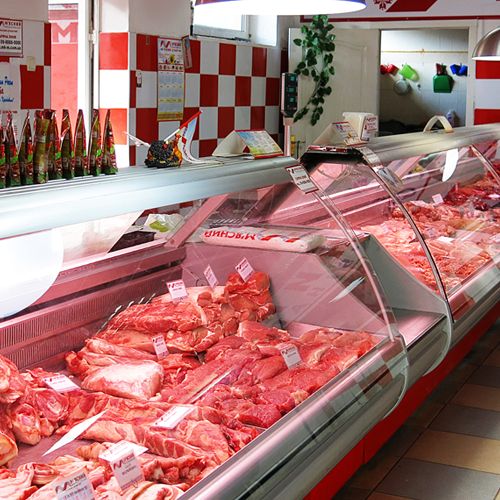

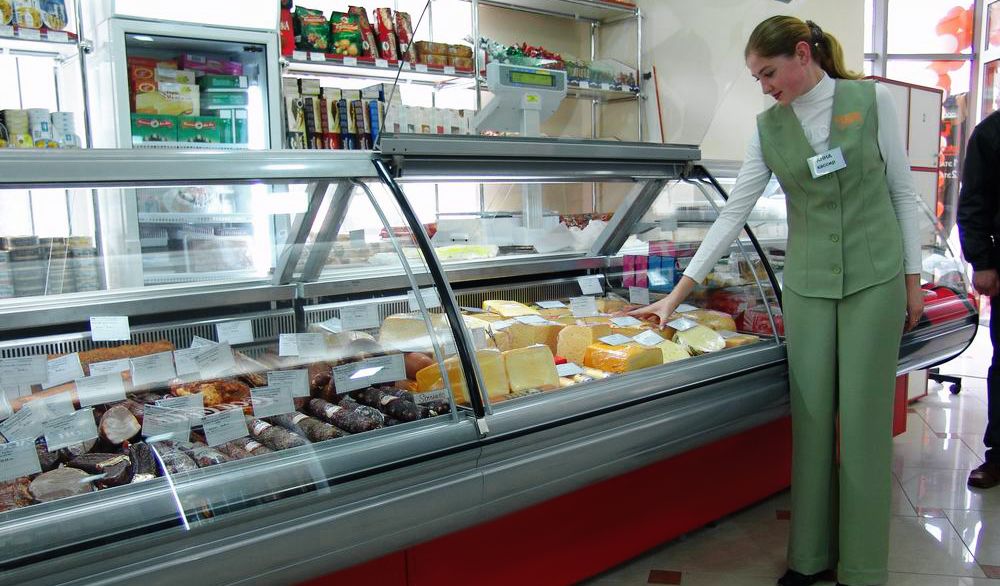

Functionality, modern design, imported components, ergonomics, the ability to set in a line of any length and configuration (using corner elements) – all these features will allow Sorrento to decorate the sales area of any store. Display cases are provided in various lengths, which allows the most efficient use of retail space. In display cases with a dynamic type of cooling, a double cooling circuit with a duct system in the demonstration trays creates a uniform temperature field, and at the same time minimizes the winding of the products. Constant ventilation of the evaporator prevents the growth of the snow “coat”, which makes it possible to refuse from defrosting with heating elements and reduce the energy consumption of the display case.

Competitive advantages

  • the medium temperature compressor saves energy costs;
  • automatic control of temperature regimes and defrosting of the evaporator;
  • the casing is filled with polyurethane foam under high pressure, which minimizes the loss of cold from the display case;
  • uninterrupted operation at ambient air temperature up to +32°С (display cases with a static type of cooling).

Standard equipment

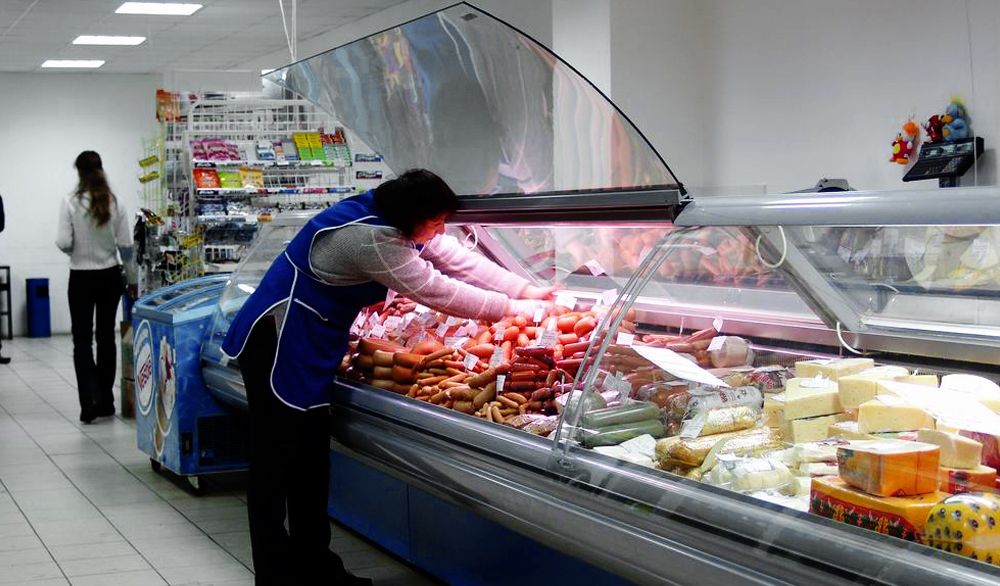

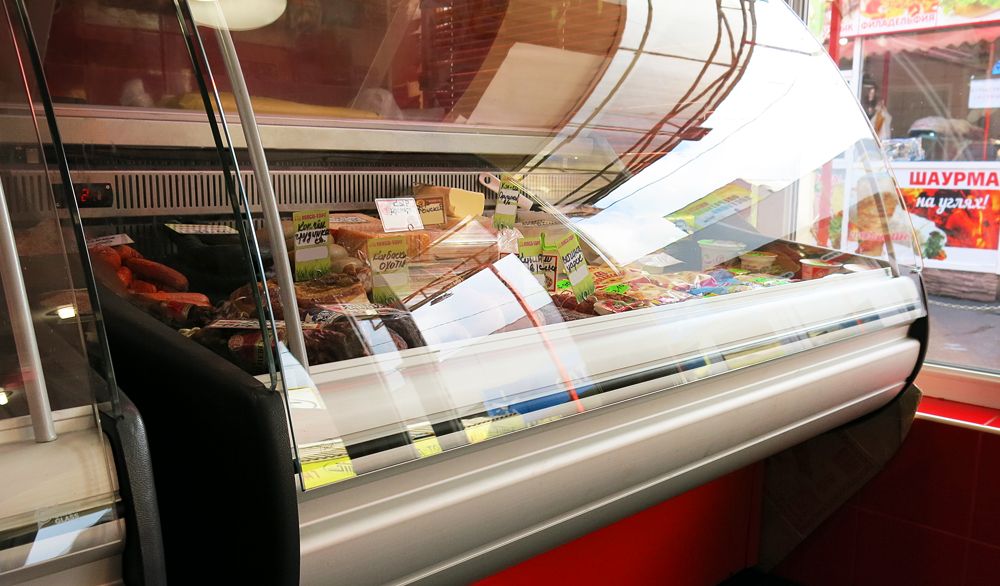

  • bent tempered panoramic glass is risen upwards and hold with the help of gas lifts;
  • capacious cooled box for inventory;
  • energy-saving LED backlight of the internal volume;
  • the display case is equipped with the electronic control panel with function of an automatic defrosting of the evaporator;
  • galvanized steel body parts with polymer coating, welding of parts is not applicable – corrosion elimination;
  • stainless steel demonstration trays and seller’s tabletop is a protection against corrosion.

Options

  • an additional temperature indicator in the working volume is a visual display of the temperature in the working volume at the current time;
  • it is possible to manufacture display cases with a temperature range from -5°C to +5°C;
  • the ability to choose the color of the base;
  • we produce models with built-in refrigeration unit and for remote cold supply;

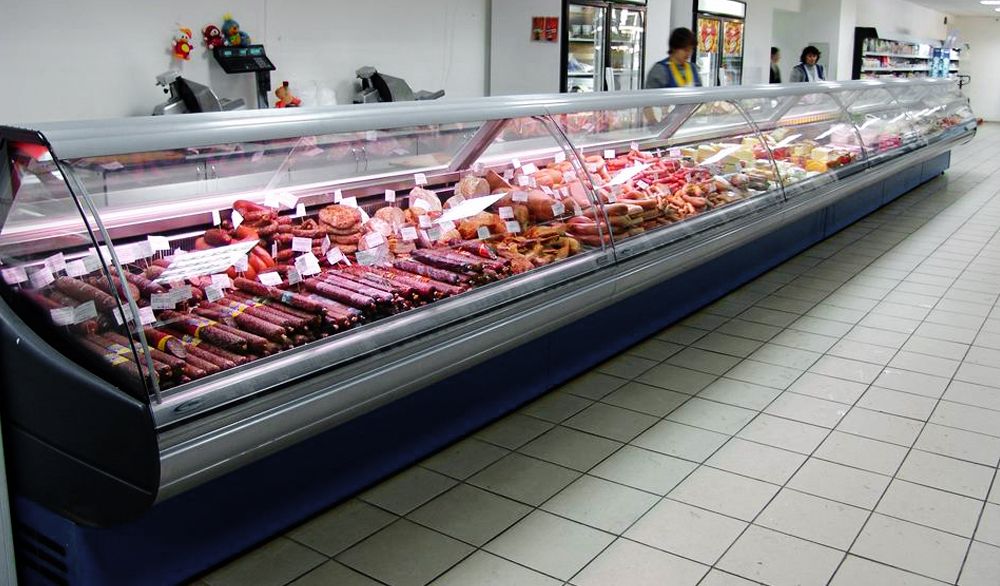

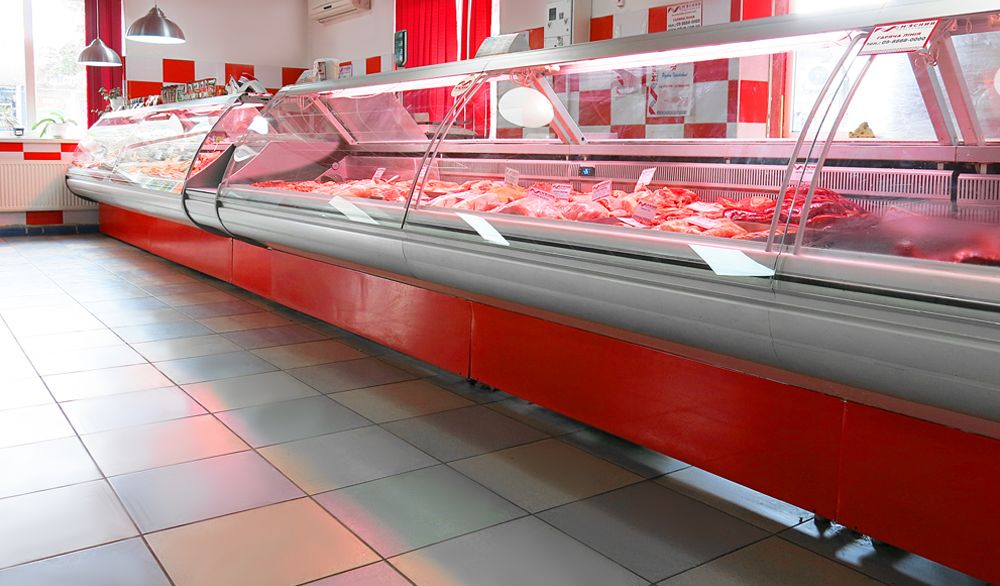

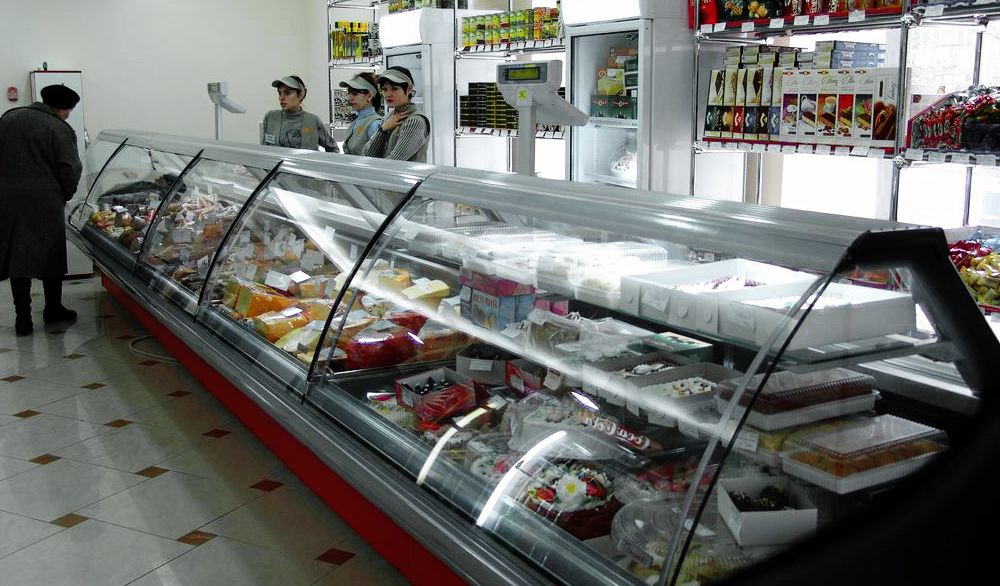

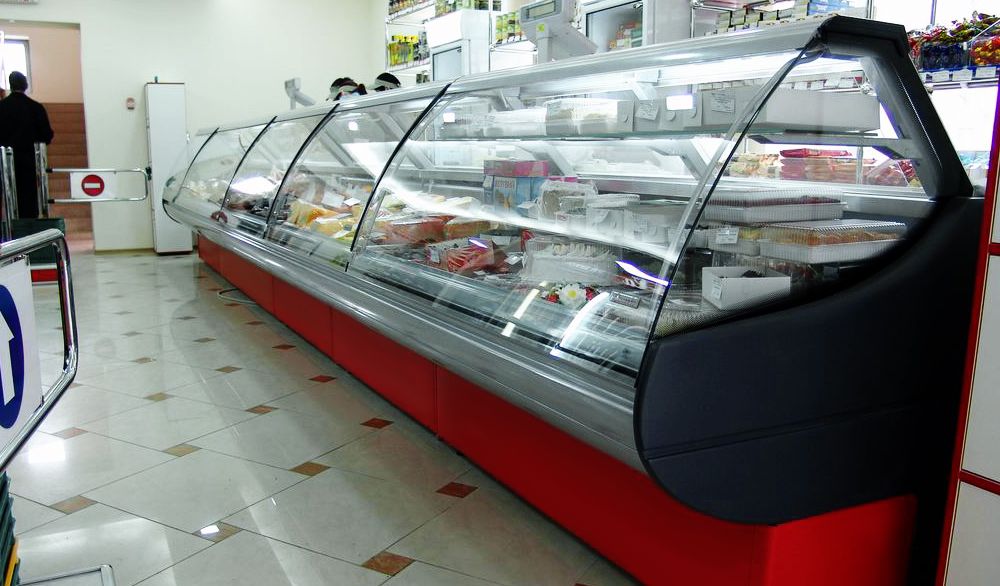

  • setting display cases in a line of any length and configuration is possible;
  • models with both static and dynamic cooling are produced

Technical data

Technical dataSorrento static / Sorrento dynamic
Length, mm, with sidewalls112013201620182021202520
Width, mm1100
Height, mm1260
Ambient temperature, °С+12…+32/+12…+25
Temperature in effective volume, °С0…+8/+2…+8
Supply voltage, V220±22
Max power consumption, W350/420450/420550/530650/530750/780850/780
Power of  heating elements’ defrost, W400/-500/-600/-700/-900/-
Daily electric energy consumption at ambient air temperature of +22 °С, kWh4,5/5,25,5/5,27,5/6,79,0/6,89,6/10,010,2/11,0
Display area, m20,7/,860,85/1,041,05/1,31,2/1,461,4/1,721,7/2,1
Mass of uniformly loaded product, kg39/4747/5658/7065/8075/100100/120
Cooling typestatic / dynamic
Mass, kg110/105140/125170/155190/175220/205280/230
